330i 2018-2023

BMW

Installation Instructions:

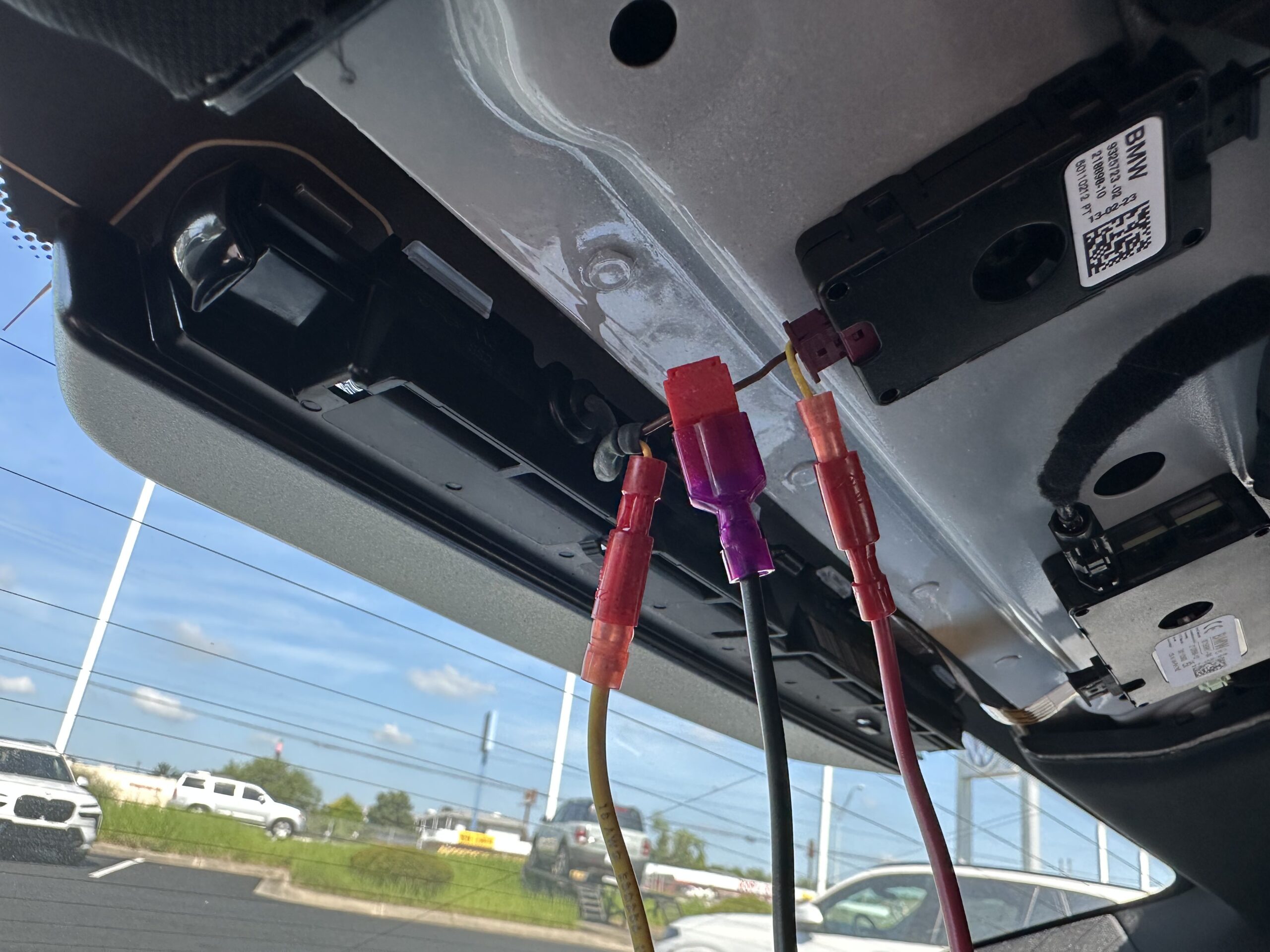

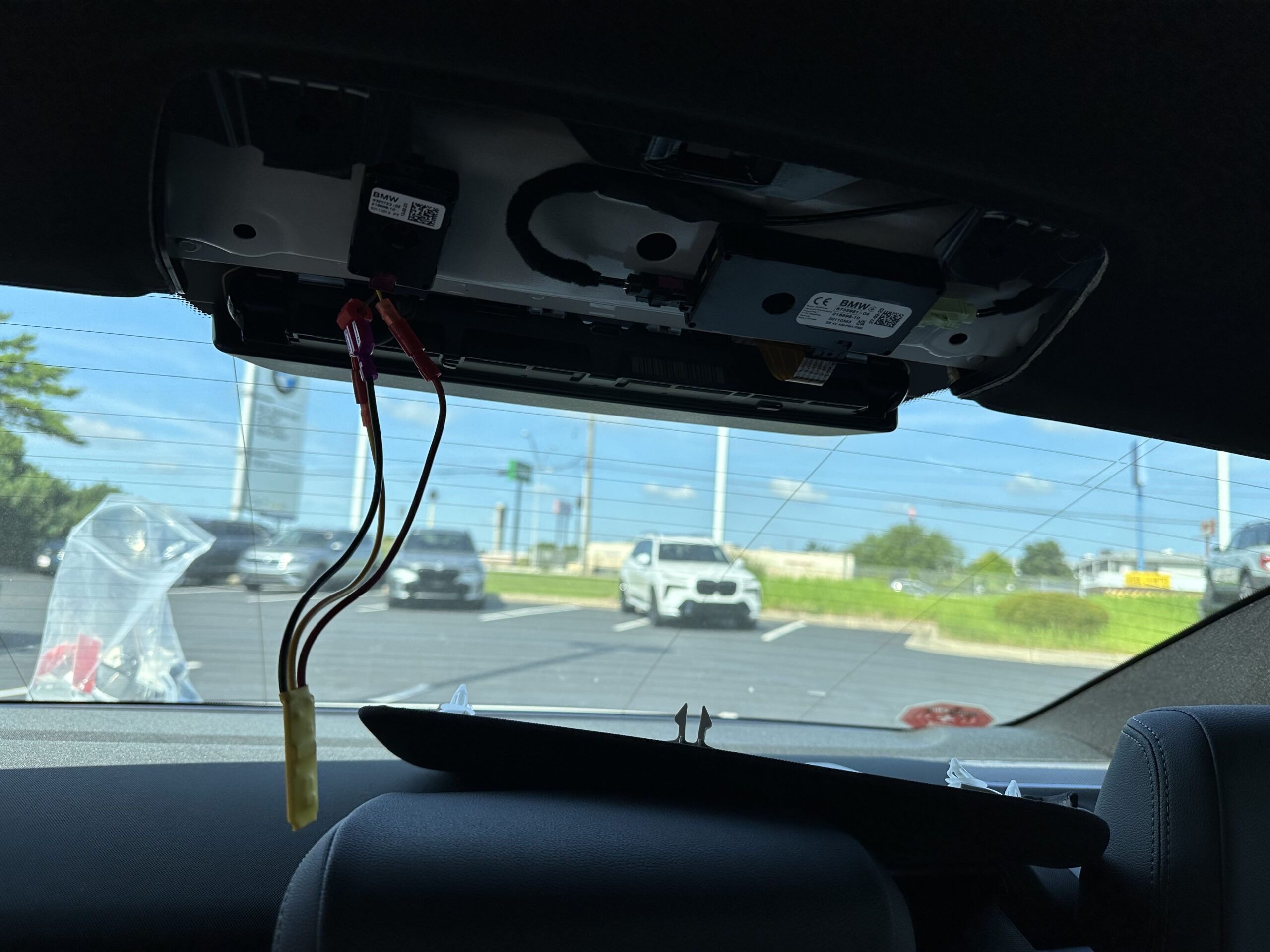

In the back seat of the vehicle, remove the cover that is directly under the third brake light. The wires will be located coming from a blue 2-pin plug that leads into a square box. To access the wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    Black

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
