430i Convertible 2020-2023

BMW

Installation Instructions:

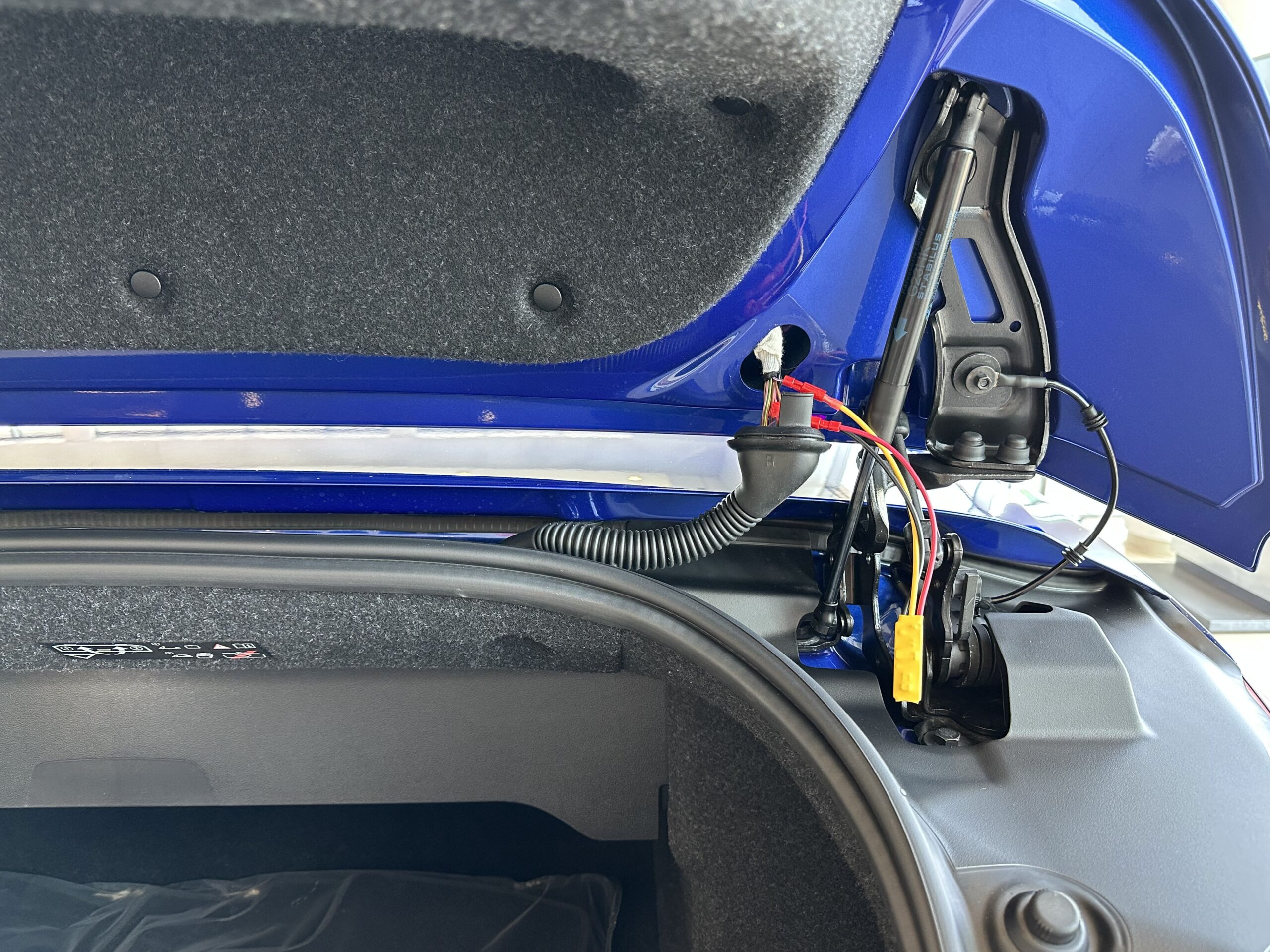

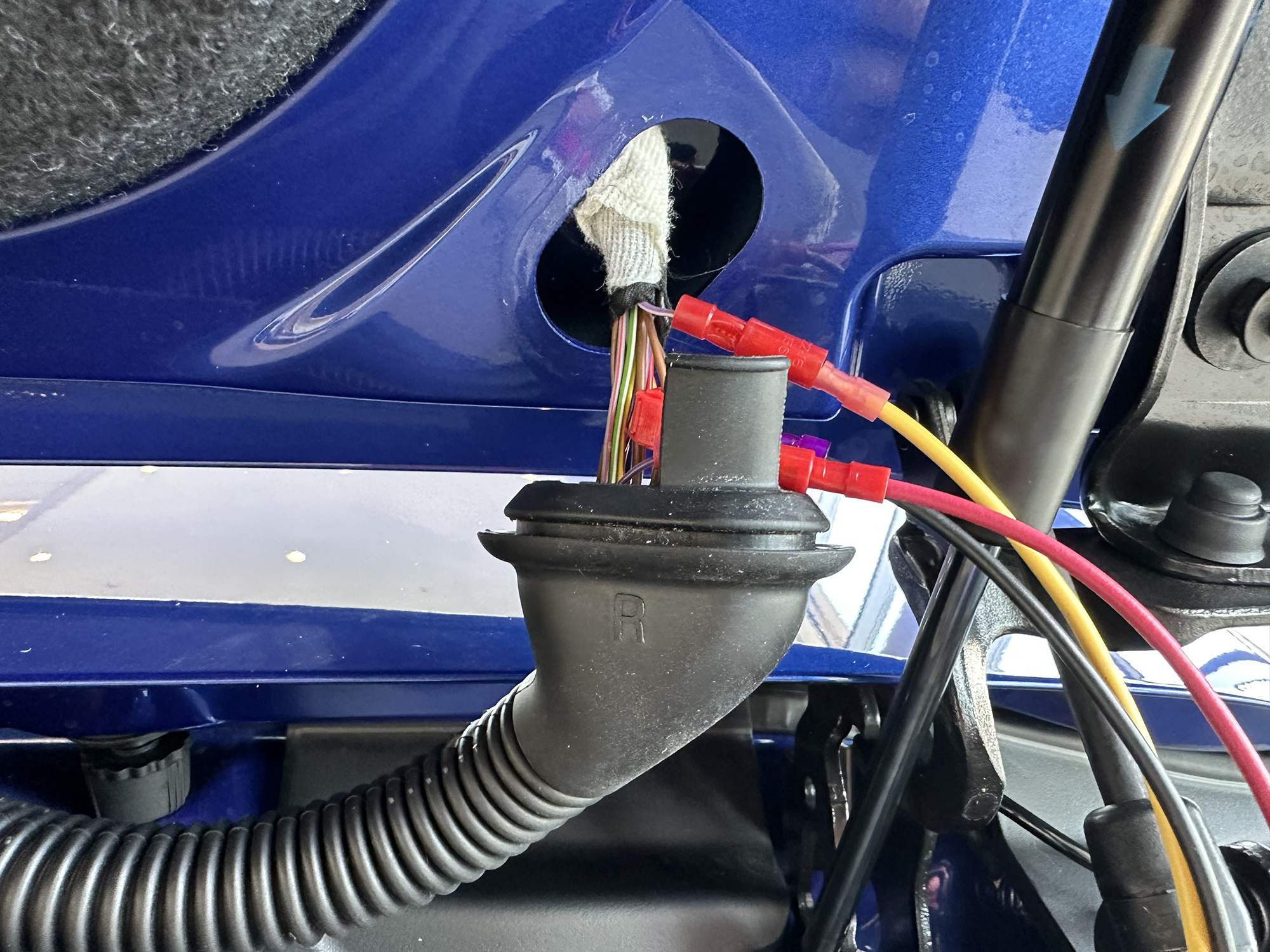

Open the trunk of the car and pull out the rubber grommet on the right side of the vehicle. The brake light wires will be located in the wire loom directly inside the circular opening. To access the wires, cut back the tape.

Additional Information:

None

  • Positive Wire:

    Violet/White

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
