500X 2017-2021

Fiat

Installation Instructions:

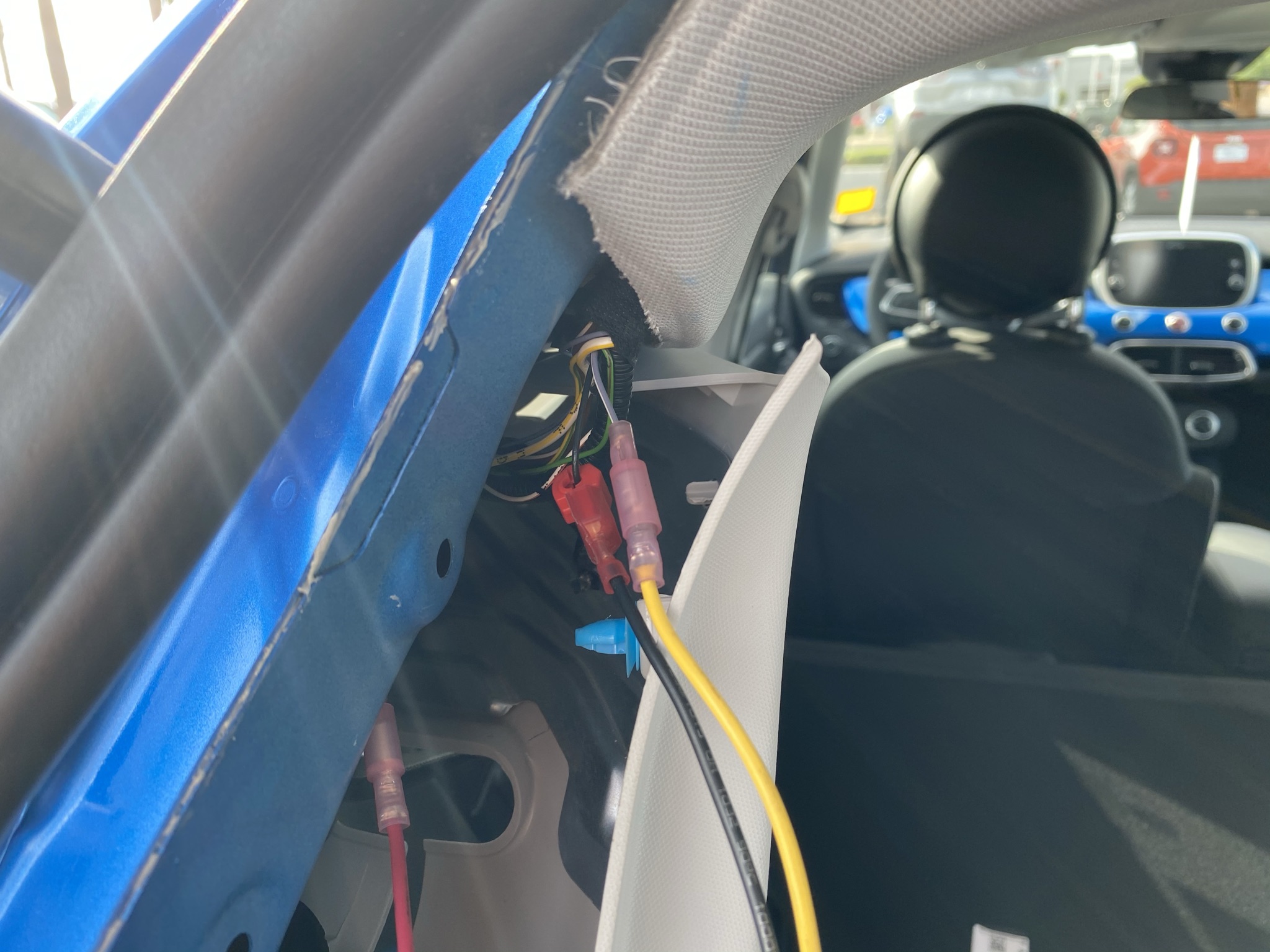

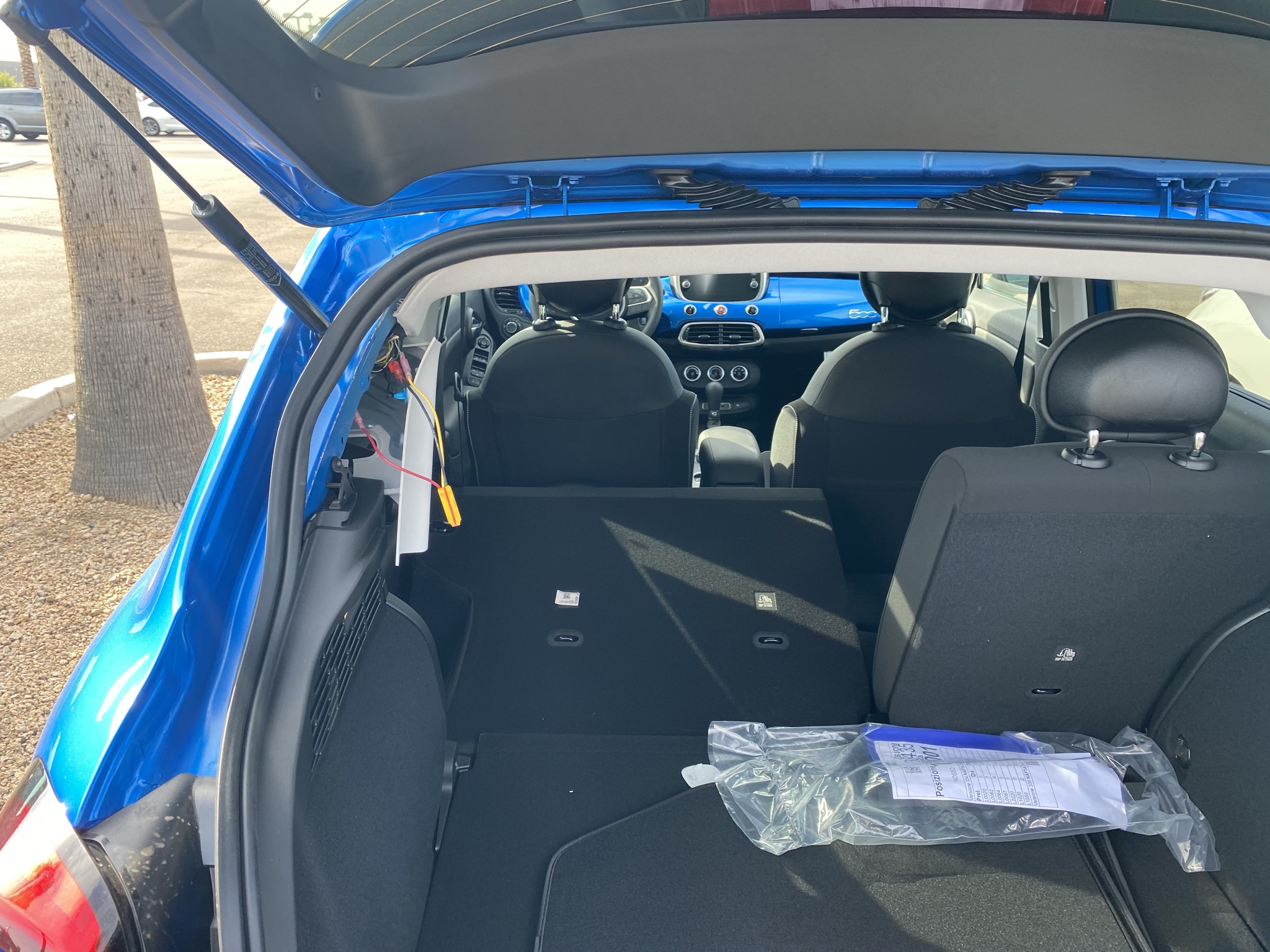

Open the rear hatch. Remove the driver side C-pillar cover. The wires will be in the harness beside the rear quarter window.

  • MODULE TYPE:

    RED STRIPE
    There are 3 types of Brake Plus modules: Regular, Black Stripe, Red Stripe
  • Positive Wire:

    Gray/White
  • Ground Wire

    Black

Additional Information:

None
