Accord 2023-2025

Honda

Installation Instructions:

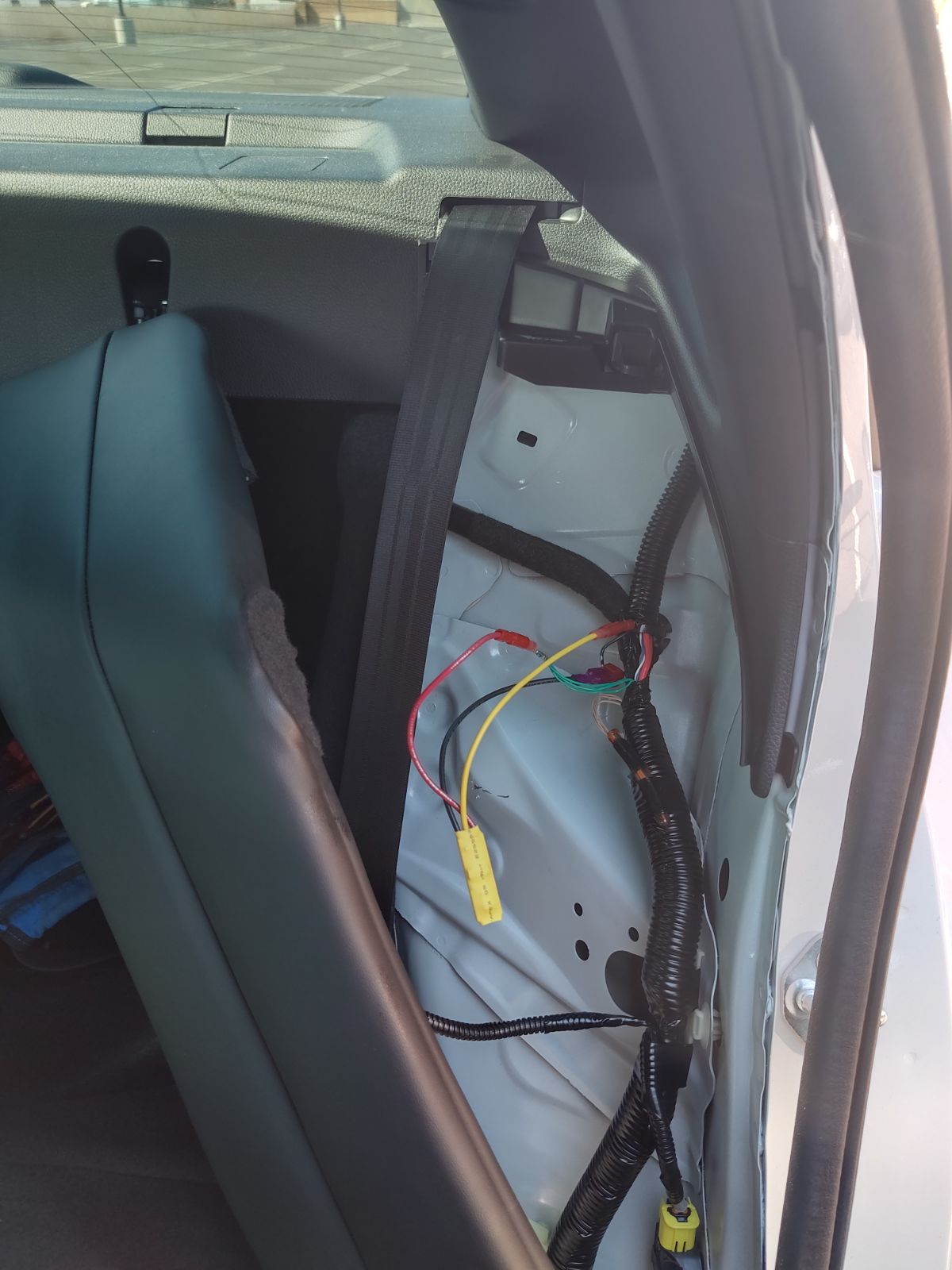

Open the driver side rear door and lower the seat back facing the trunk opening. On the right, remove that two 10mm screws that hold the side cushion in place, and lift up to unclip and access the wire harness. The brake light wires will be located inside the wire harness that is leading towards the top of the vehicle. Cut back the wire loom to access the brake light wires.

Additional Information:

None

  • Positive Wire:

    Green

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
