Arteon 2021-2023

Volkswagen

Installation Instructions:

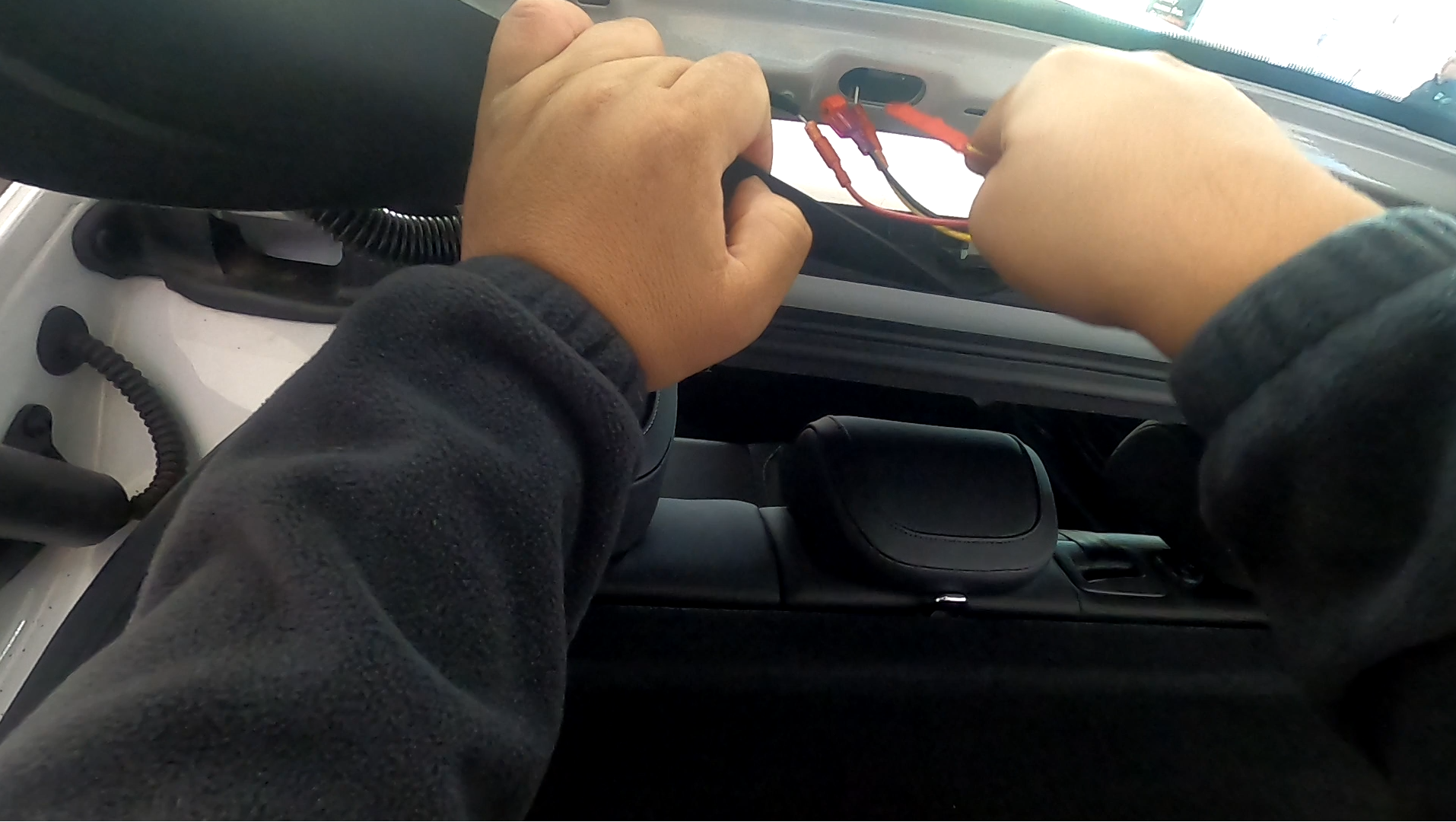

Open the back truck hatch and remove the top plastic panel. When you are pulling loose the top panel you will only be able to pull it down slightly to access the wires. The two wires will be located on the driver's side of the vehicle in a square hole leading from a black 2-pin plug. Unplug the 2-pin plug to better access the two wires.

Additional Information:

None

  • Positive Wire:

    White

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
