ATS & ATS Coupe 2014-2018

Cadillac

Installation Instructions:

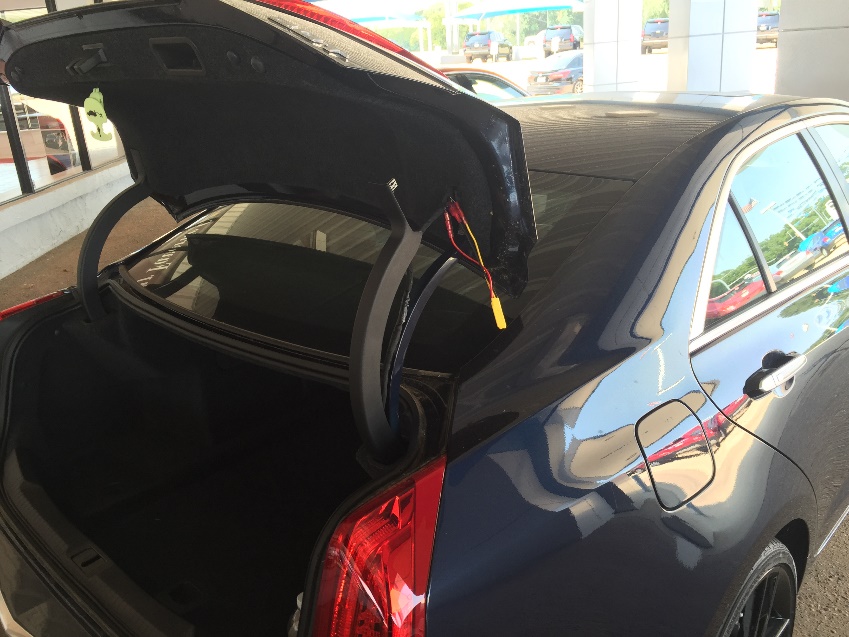

Open the trunk. Remove the cover on the passenger side hinge of the trunk lid. The wires will be in the harness running into the trunk.

  • MODULE TYPE:

    REGULAR
    There are 3 types of Brake Plus modules: Regular, Black Stripe, Red Stripe
  • Positive Wire:

    Violet/White
  • Ground Wire

    Black

Additional Information:

None
