Bolt 2023-2024

Chevrolet

Installation Instructions:

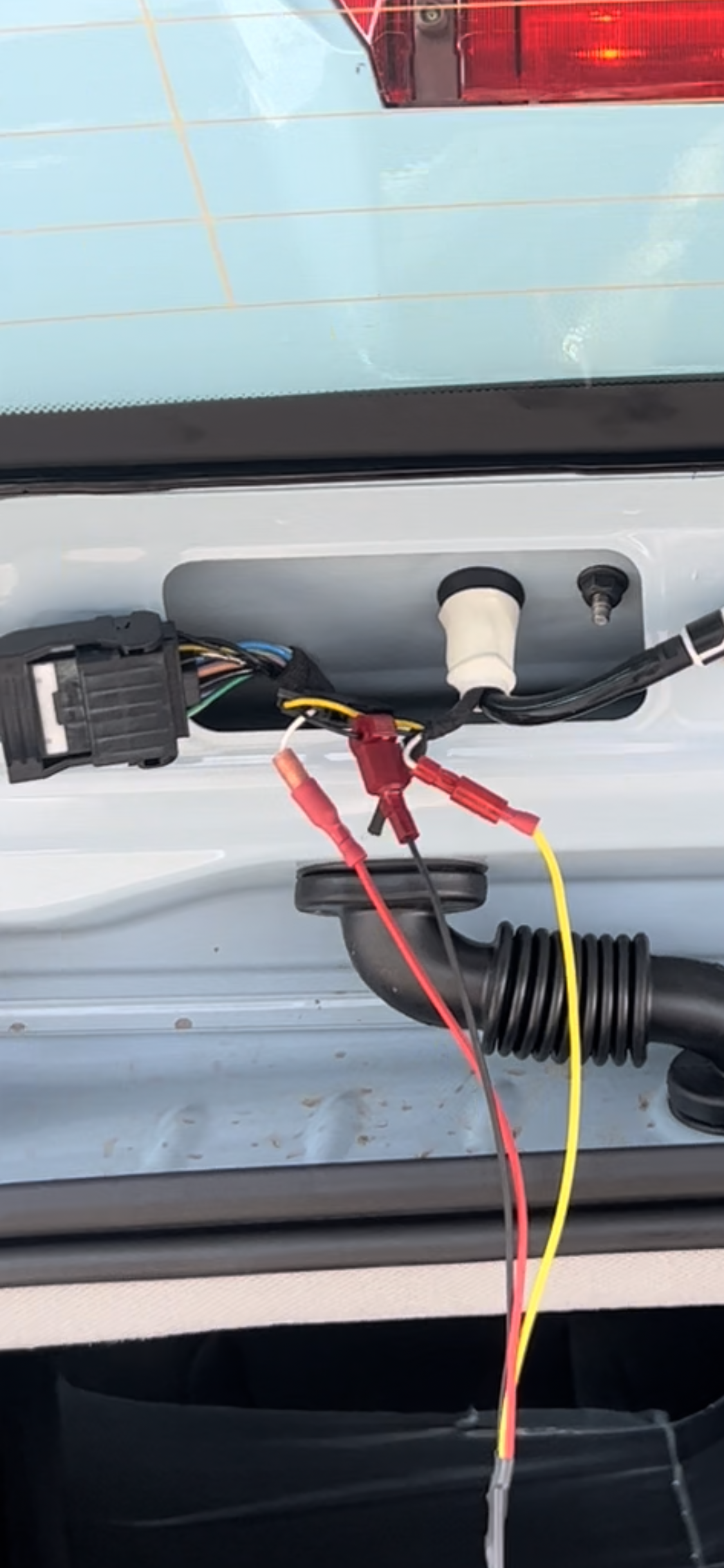

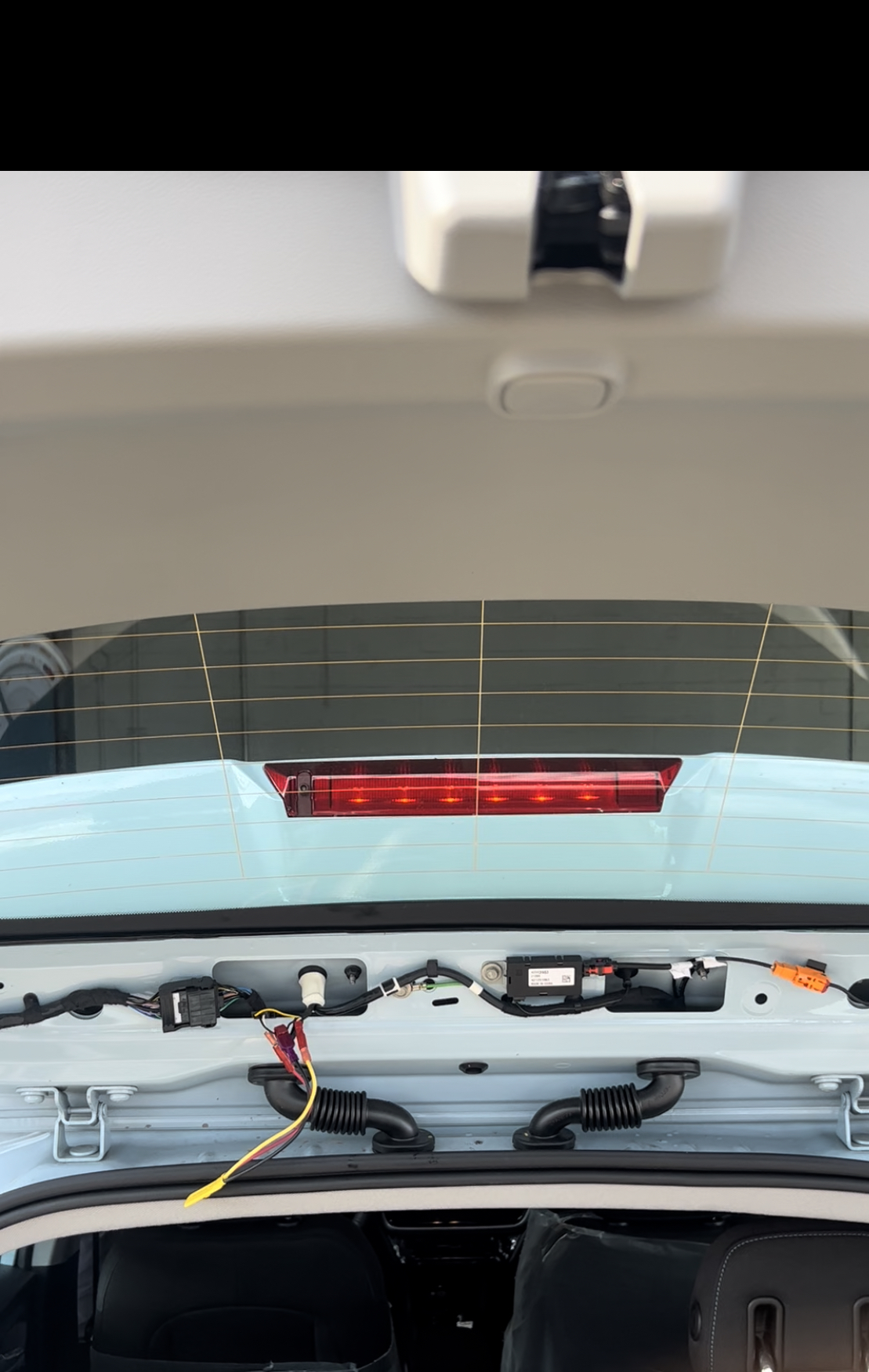

Open the back hatch of the vehicle and pop down the top panel. The brake light wires will be located on the left rectangular opening leading from the black boot. To access the wires, cut back the black tape.

Additional Information:

None

  • Positive Wire:

    White

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
