bZ4X 2022-2025

Toyota

Installation Instructions:

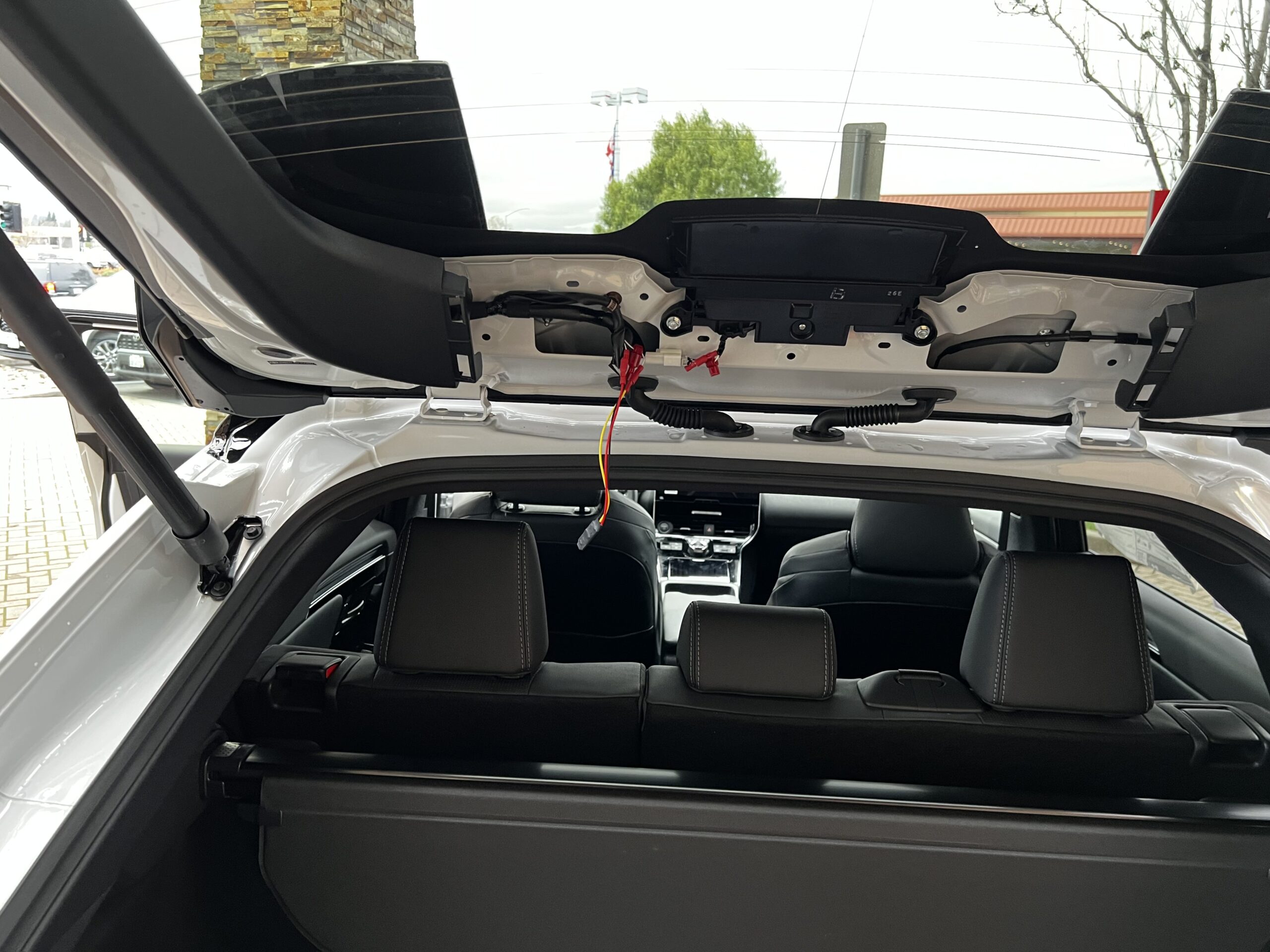

Open the back hatch of the vehicle and remove the top center panel. The wires will be located on the left side coming from a white 2-pin plug. To access the brake light wires, cut back the wire loom.

Additional Information:

On the left of the 2-pin plug, the wires colors will be white (POS) and white with pink (GND). On the right of the 2-pin plug, the wire colors are white (POS) and black (GND).

  • Positive Wire:

    White

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
