Cadenza 2014-2017

Kia

Installation Instructions:

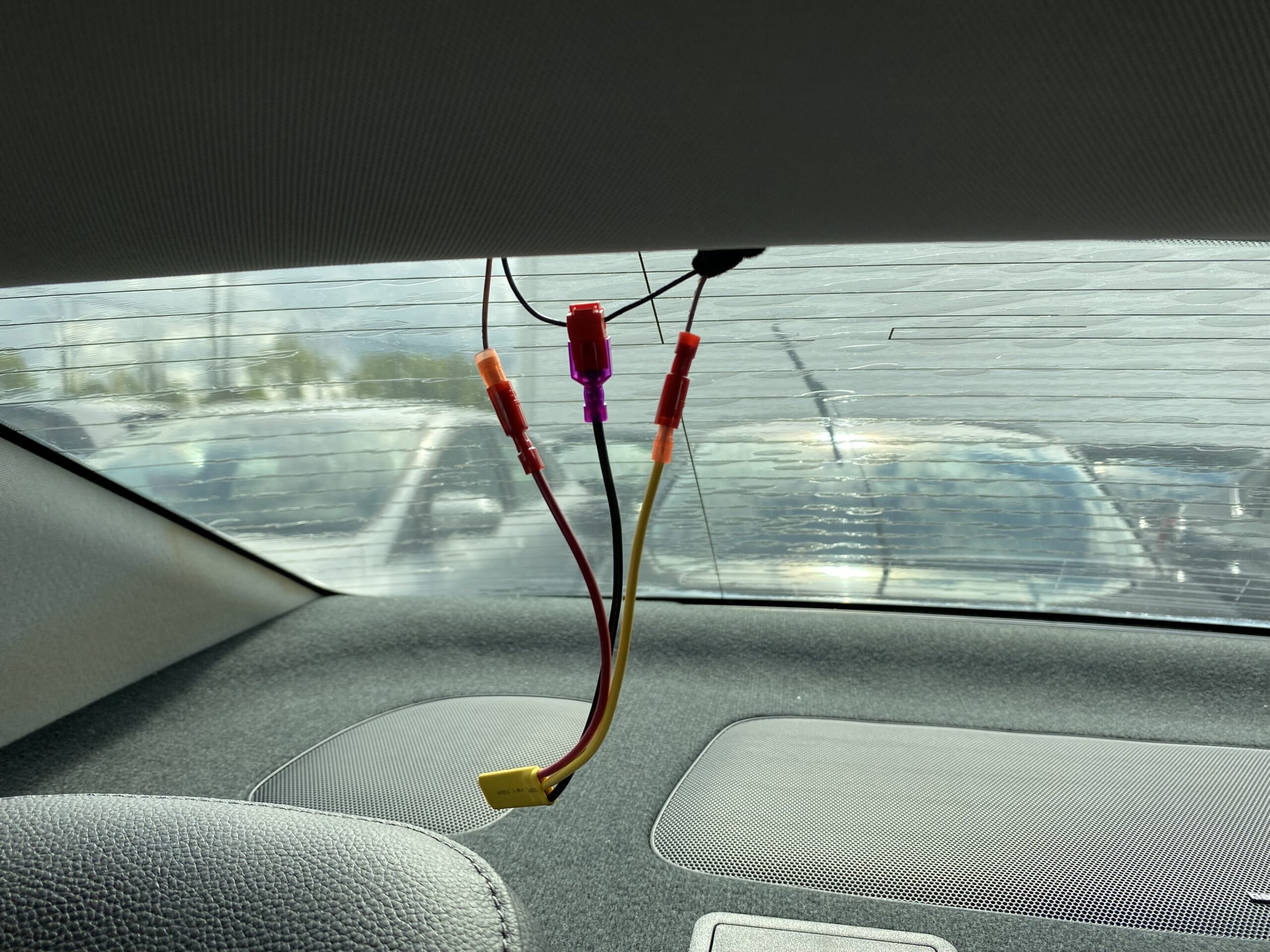

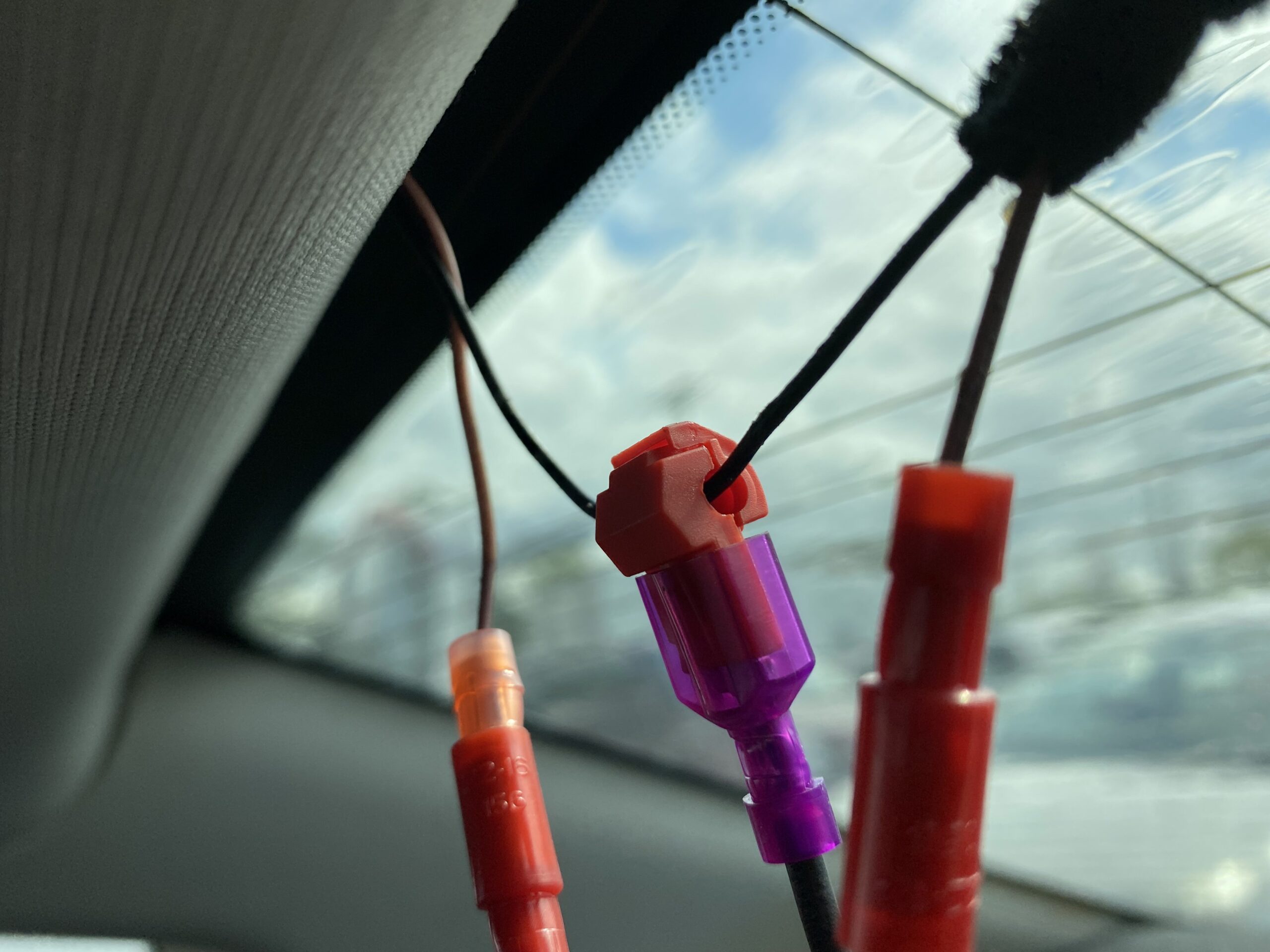

Open the rear door to access the back seat. The wires will be located in the headliner directly in the center, next to the back window of the vehicle. Pull down the headliner slightly to grab the wire harness. Cut back the tape to access the brake light wires.

Additional Information:

None

  • Positive Wire:

    Pink

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
