Cherokee 2014-2018

Jeep

Installation Instructions:

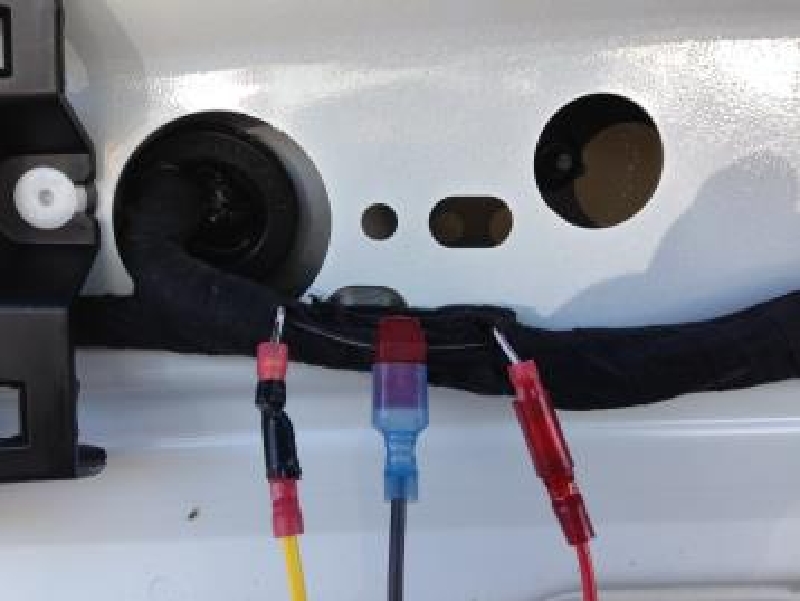

Open the trunk hatch. Remove the center panel directly behind the high mount brake light. The wires are on the driver side harness covered with black tape. Be careful and do not use a razor blade to cut the tape--you may accidentally cut the washer fluid line in the same harness.

Additional Information:

None

  • Positive Wire:

    White/Violet

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
