Corolla Cross 2022-2025

Toyota

Installation Instructions:

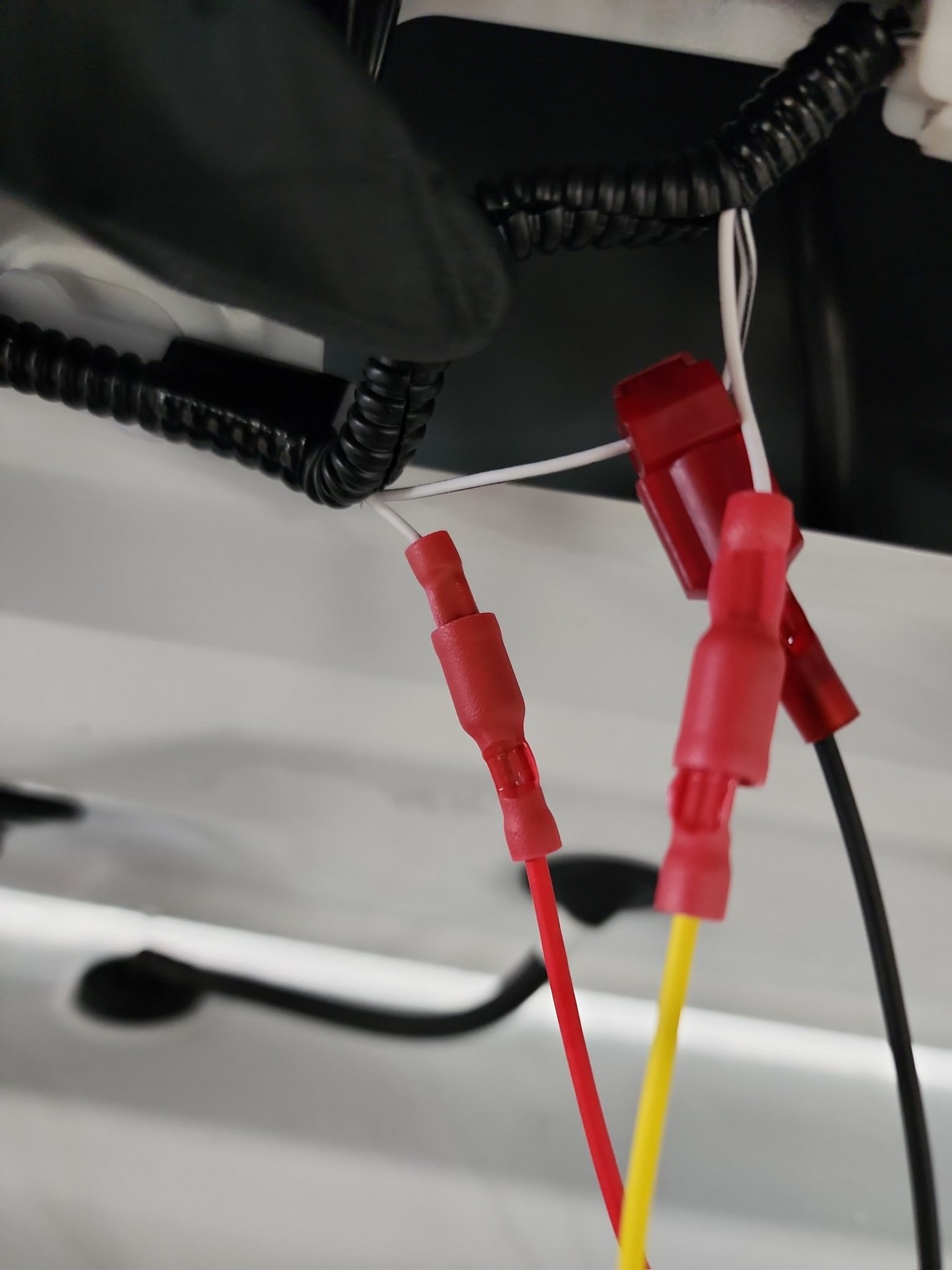

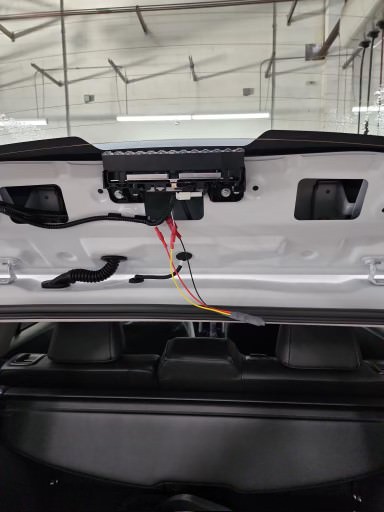

Open the back hatch of the vehicle and remove the top center panel. The brake light wires will be located in the center of the vehicle leading directly into the third Brake light. To access the wires, cut back the wire loom so that the wires are exposed.

Additional Information:

None

  • Positive Wire:

    White

  • Ground Wire

    White/Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
