Corsair 2022-2023

Lincoln

Installation Instructions:

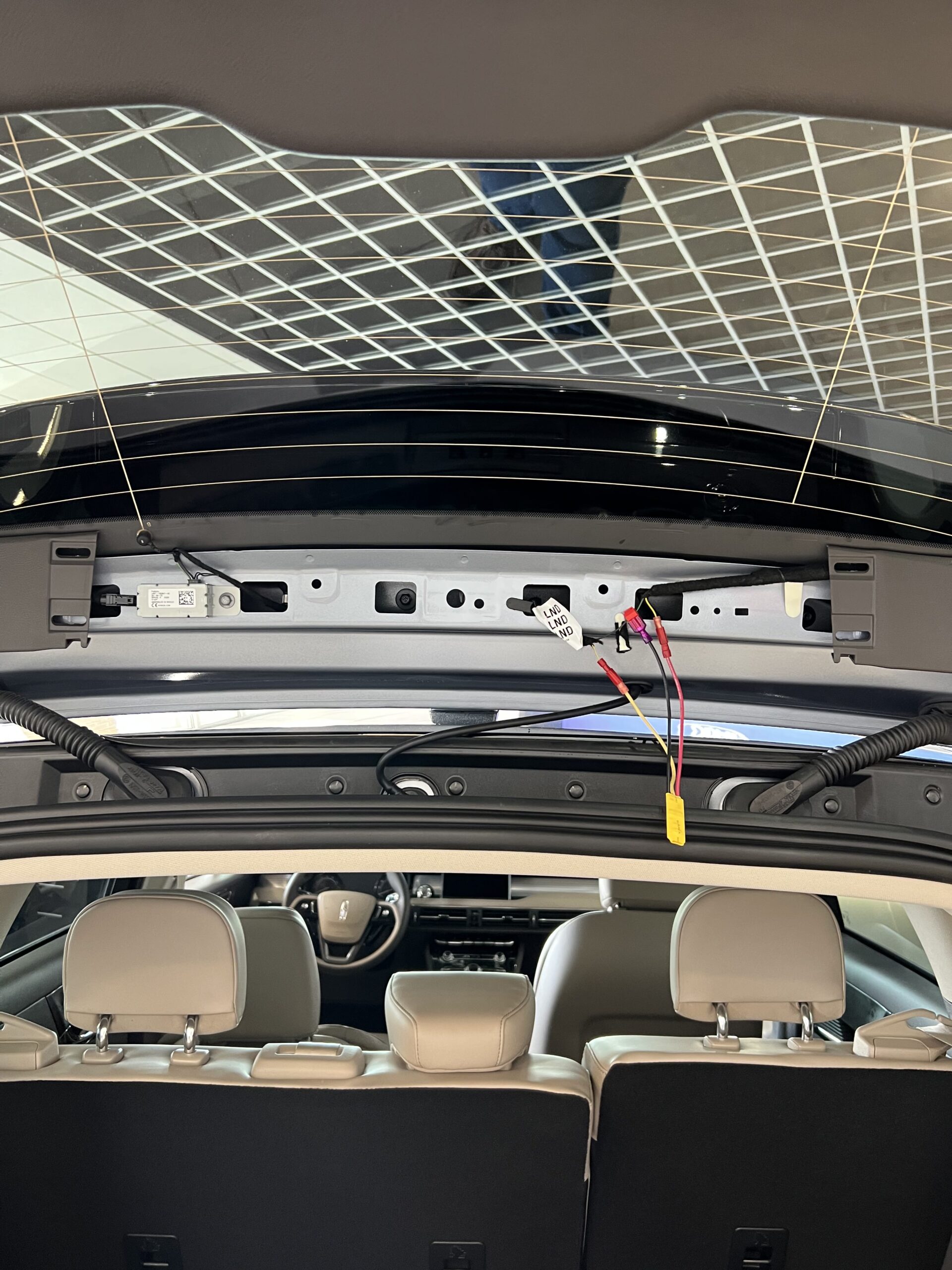

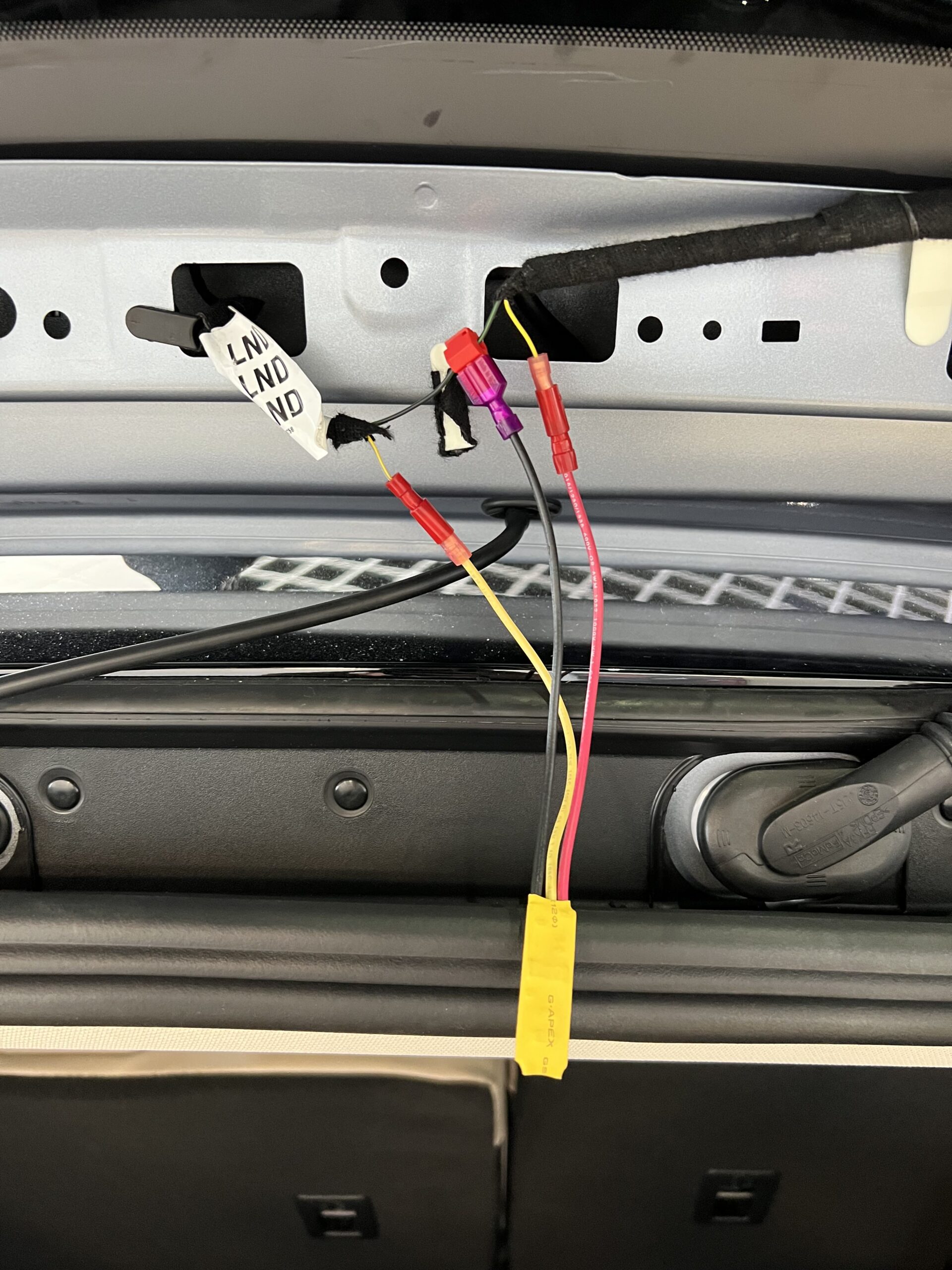

Open the back hatch of the vehicle and remove the top center panel. The wires will be located on the right side of the vehicle in the string with the black tape. To access the brake light wires cut back the tape.

Additional Information:

None

  • Positive Wire:

    Yellow

  • Ground Wire

    Black/Green

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
