Crown 2023-2025

Toyota

Installation Instructions:

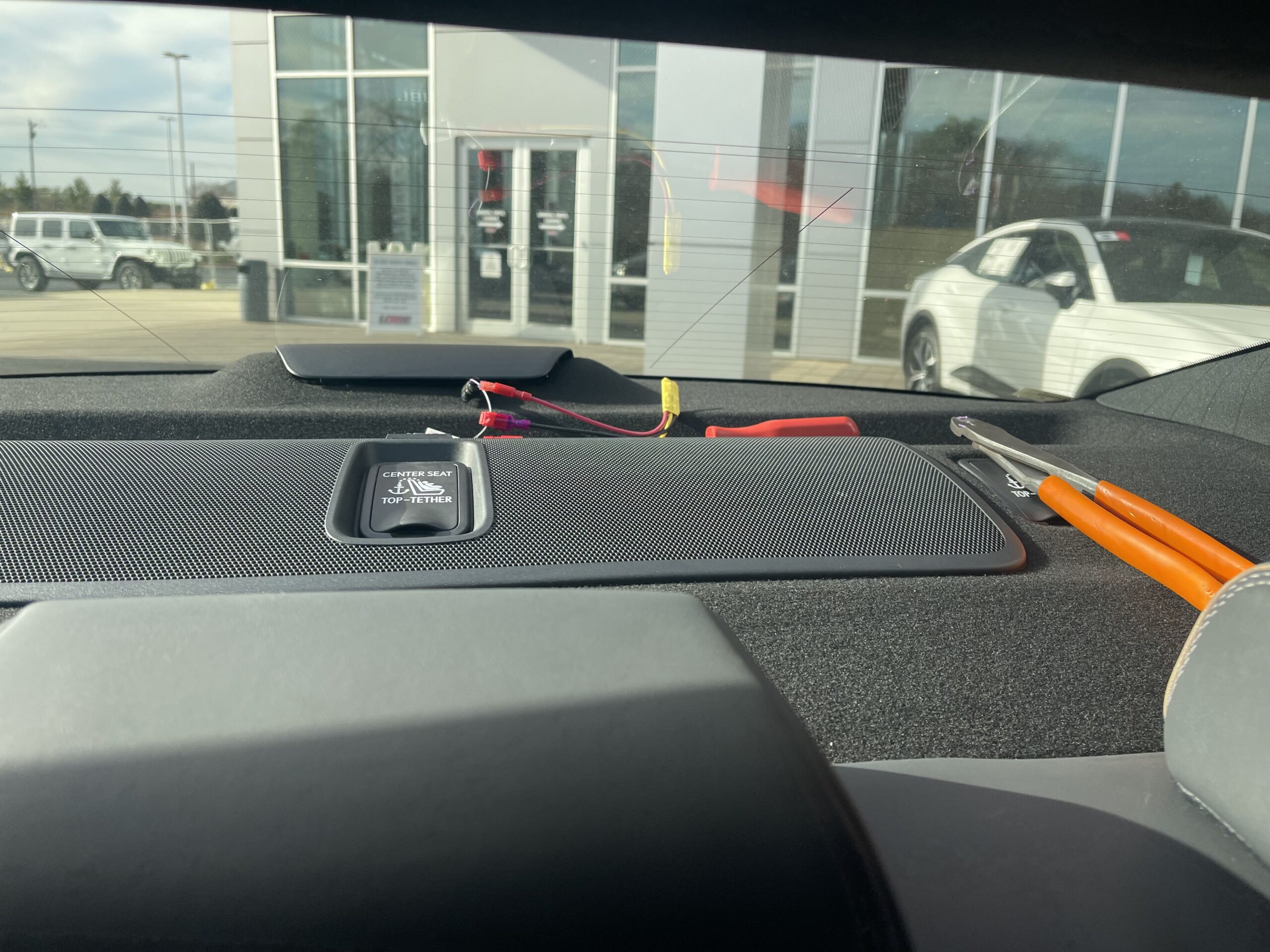

In the back seat of the vehicle, remove the deck lid that covers the third brake light. The wire will be located underneath, leading into a white 2-pin plug. To access the wires, unplug the light and cut back the black tape.

Additional Information:

None

  • Positive Wire:

    Purple

  • Ground Wire

    White/Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
