CX-50 2023

Mazda

Installation Instructions:

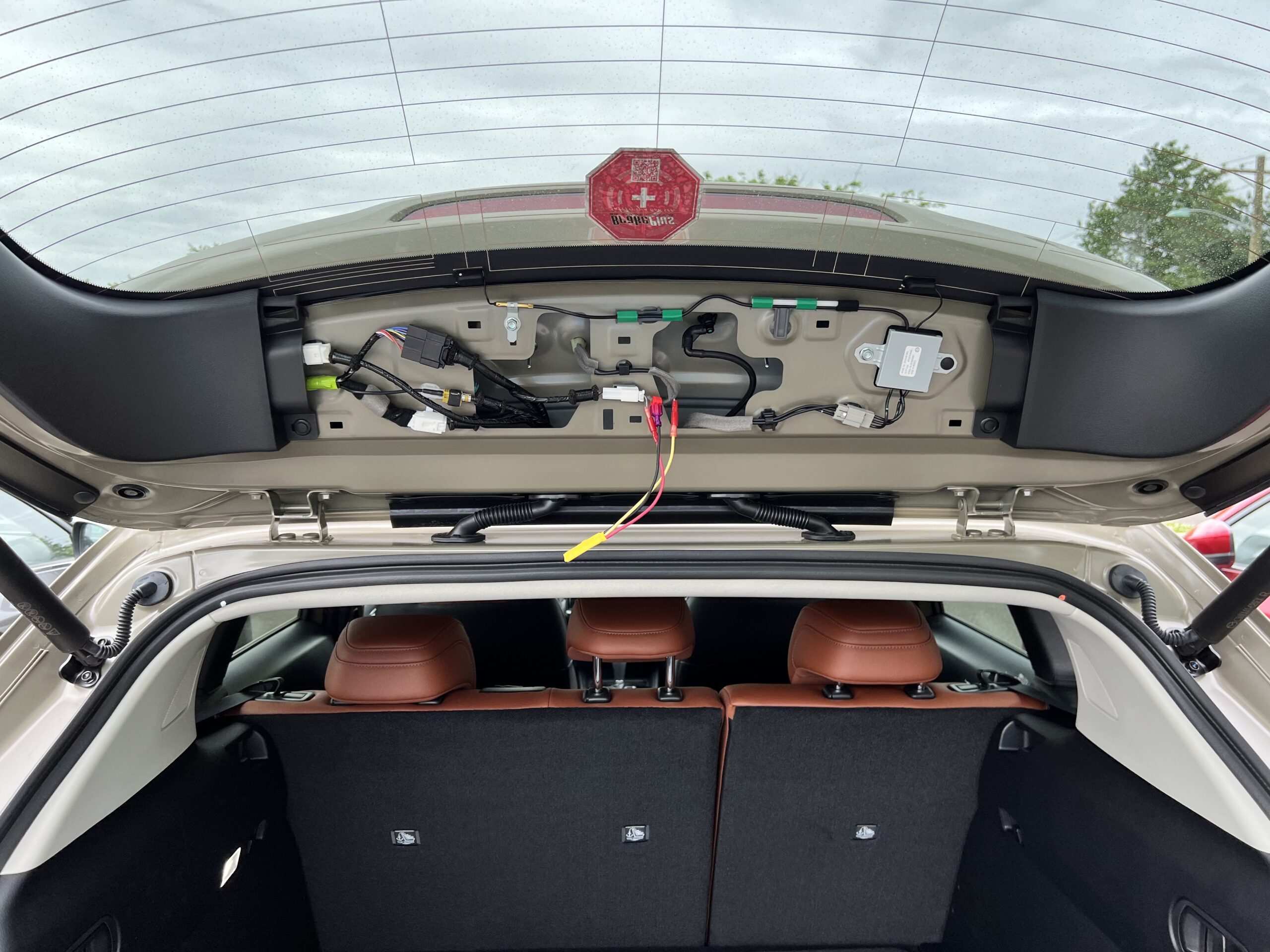

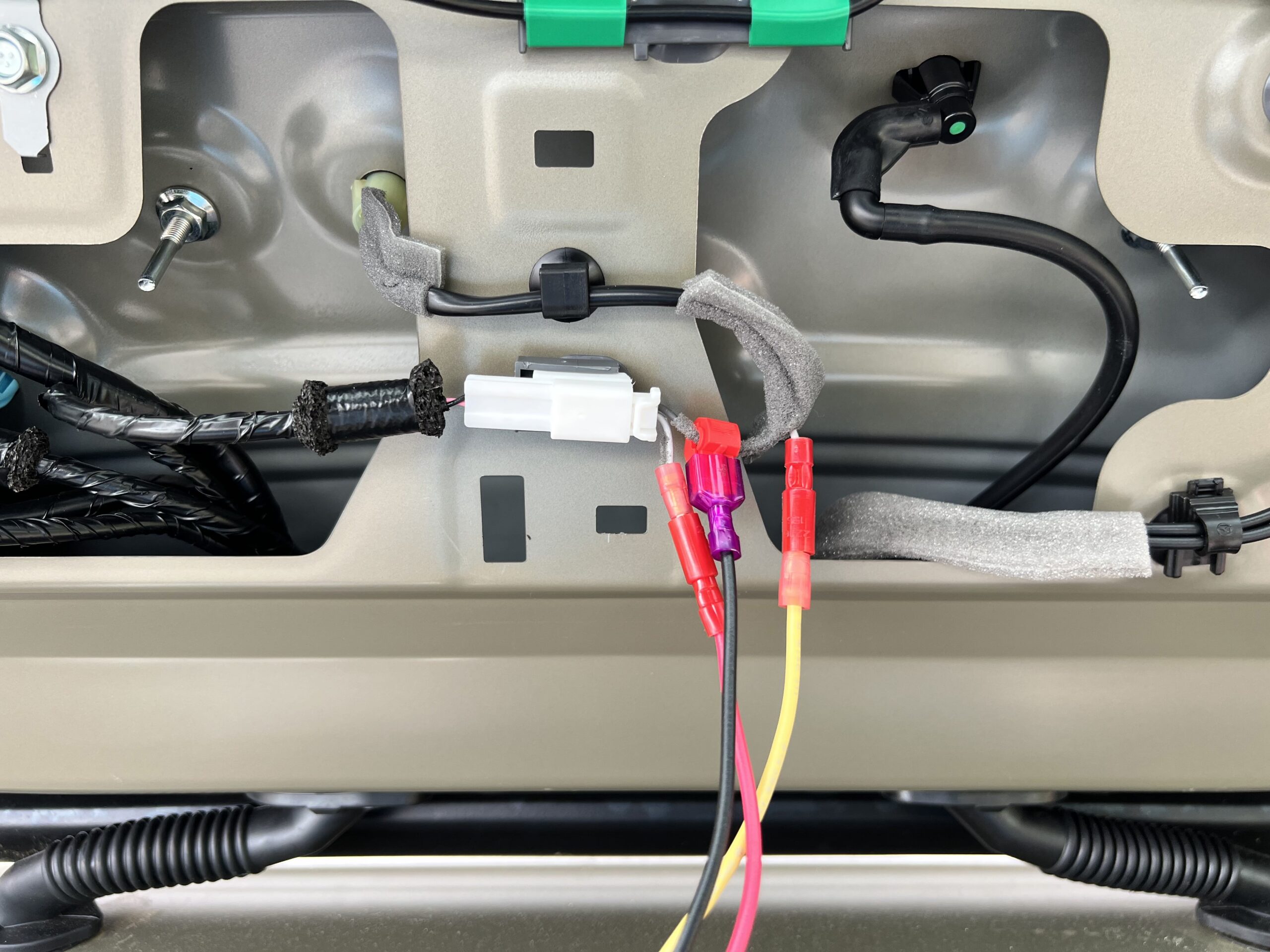

Open the back hatch of the vehicle and remove the center top panel. The wires will be located coming from the white 2-pin plug that is leading toward the third brake light. To access the wires, cut back the gray tape.

Additional Information:

None

  • Positive Wire:

    Gray

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
