E450 2018-2019

Mercedes-Benz

Installation Instructions:

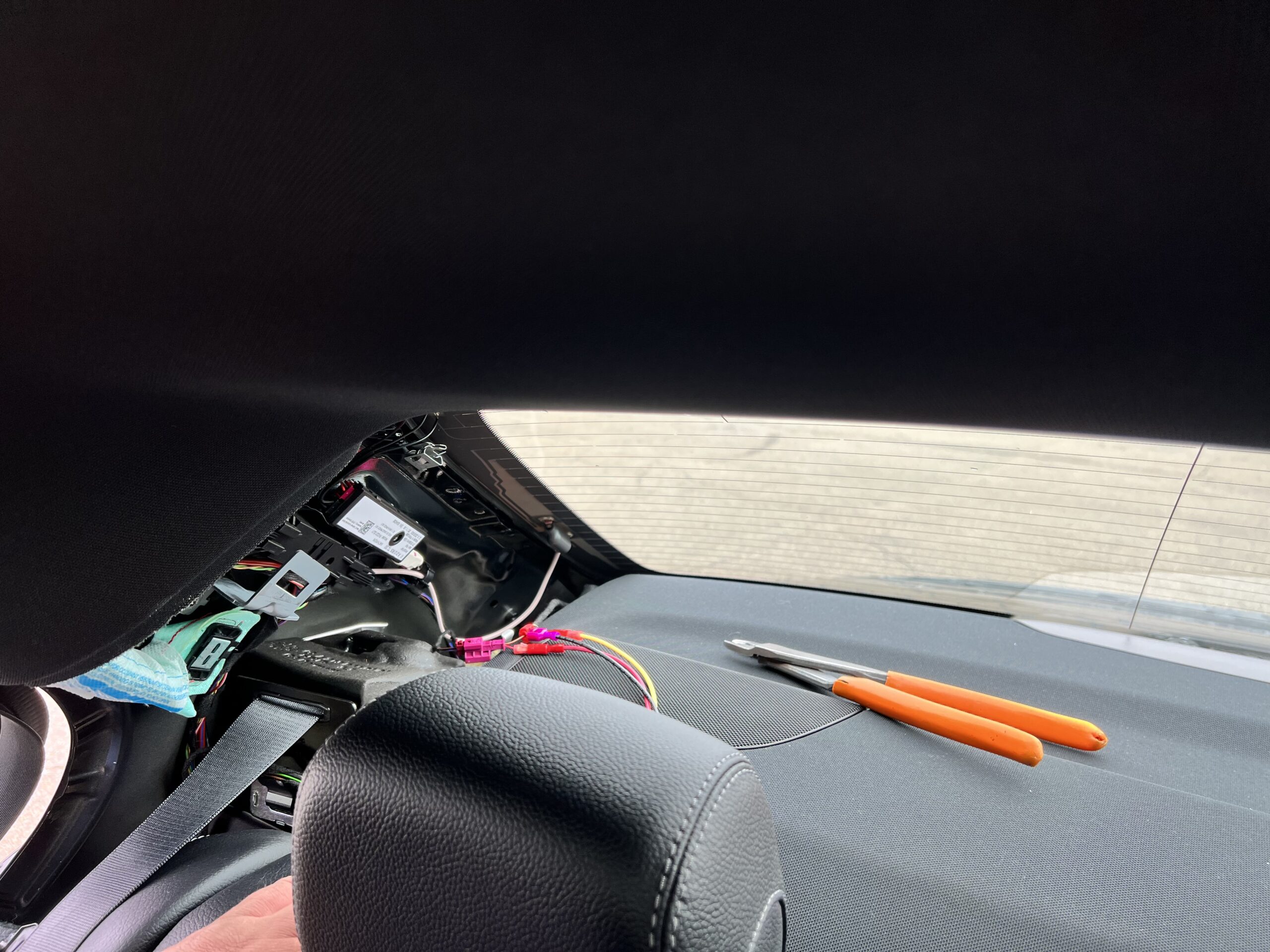

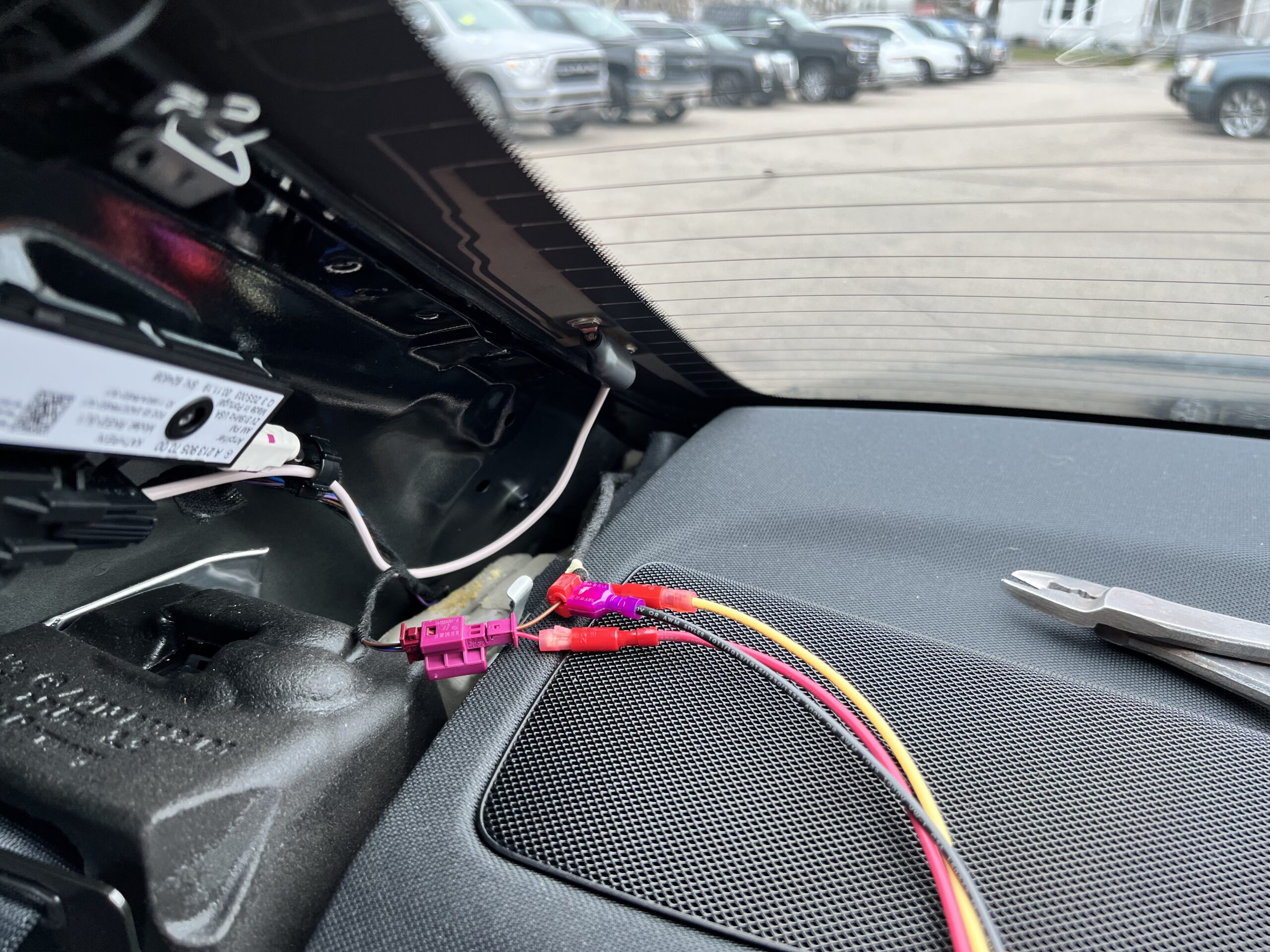

Open the back passenger side door. In the back seat, directly towards the back window on the passenger side, pull the C-pillar panel to locate the wires. The wires will be located going into the red 2-pin plug. Cut back the cloth tape to access the wires.

Additional Information:

None

  • Positive Wire:

    Red

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
