Eclipse Cross 2018-2019

Mitsubishi

Installation Instructions:

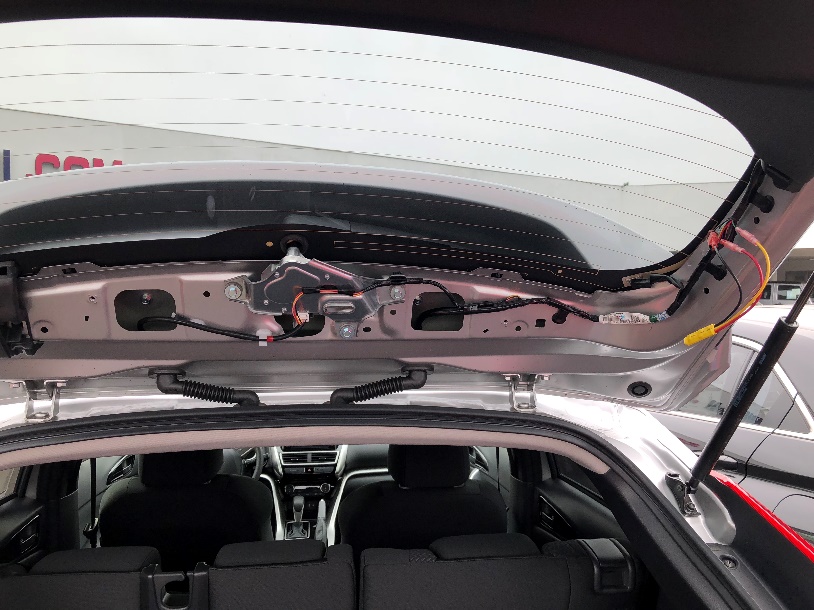

Open the trunk hatch. Remove the center panel at the top of the hatch. Remove the small panel on the right as well. The wires are in the harness behind the small panel.

  • MODULE TYPE:

    REGULAR
    There are 3 types of Brake Plus modules: Regular, Black Stripe, Red Stripe
  • Positive Wire:

    Green
  • Ground Wire

    Black (the thin one)

Additional Information:

None
