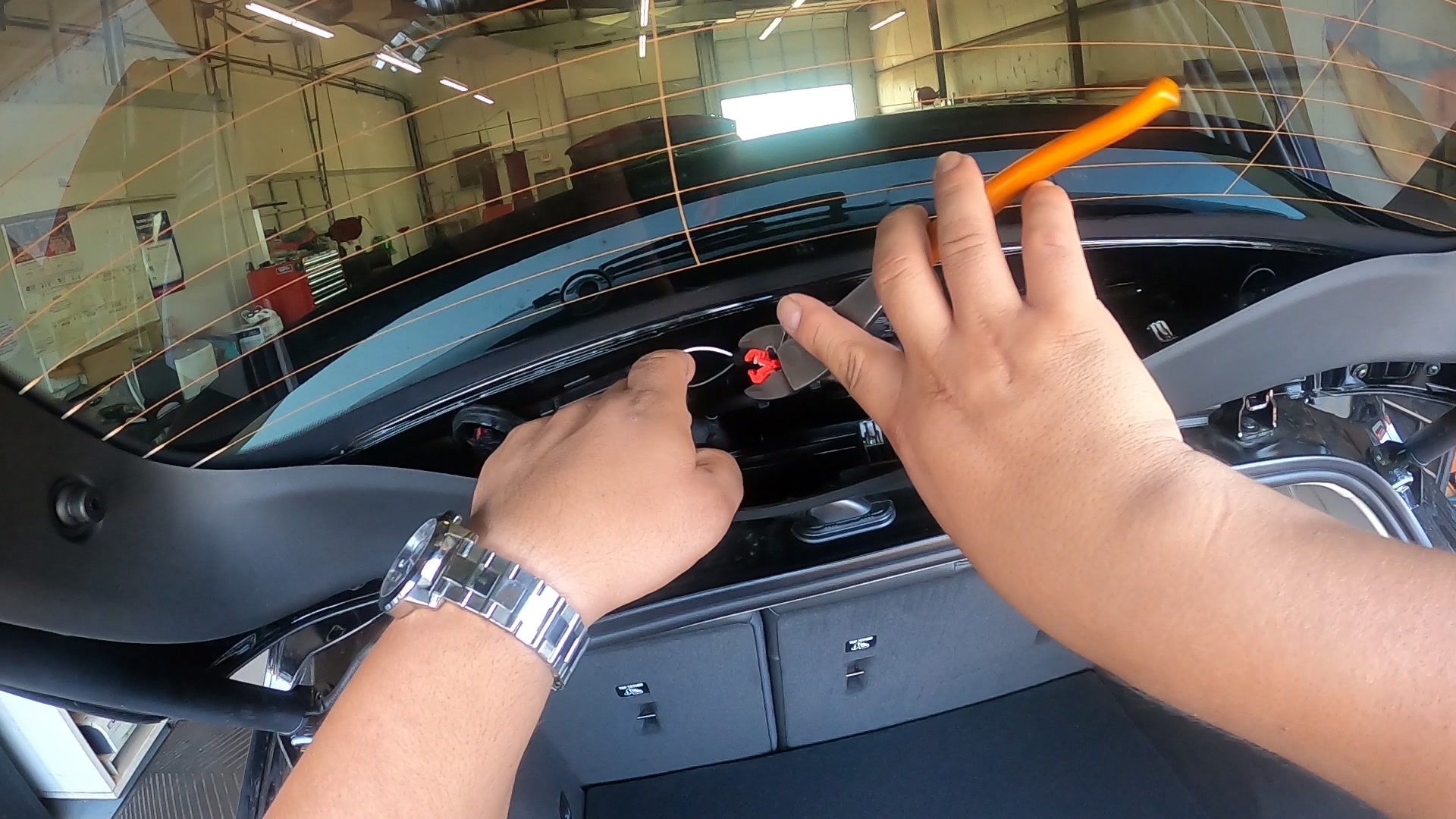

Open the back trunk hatch and pull down the top horse shoe panel. The wires are located on the driver side of the vehicle, going into the black 2-pin plug.
Additional Information:
When removing the top horse shoe panel, be careful not to pull directly in the center of the panel.
Positive Wire:
White
Ground Wire
Black
About wire colors:
In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
