Escape 2017-2019

Ford

Installation Instructions:

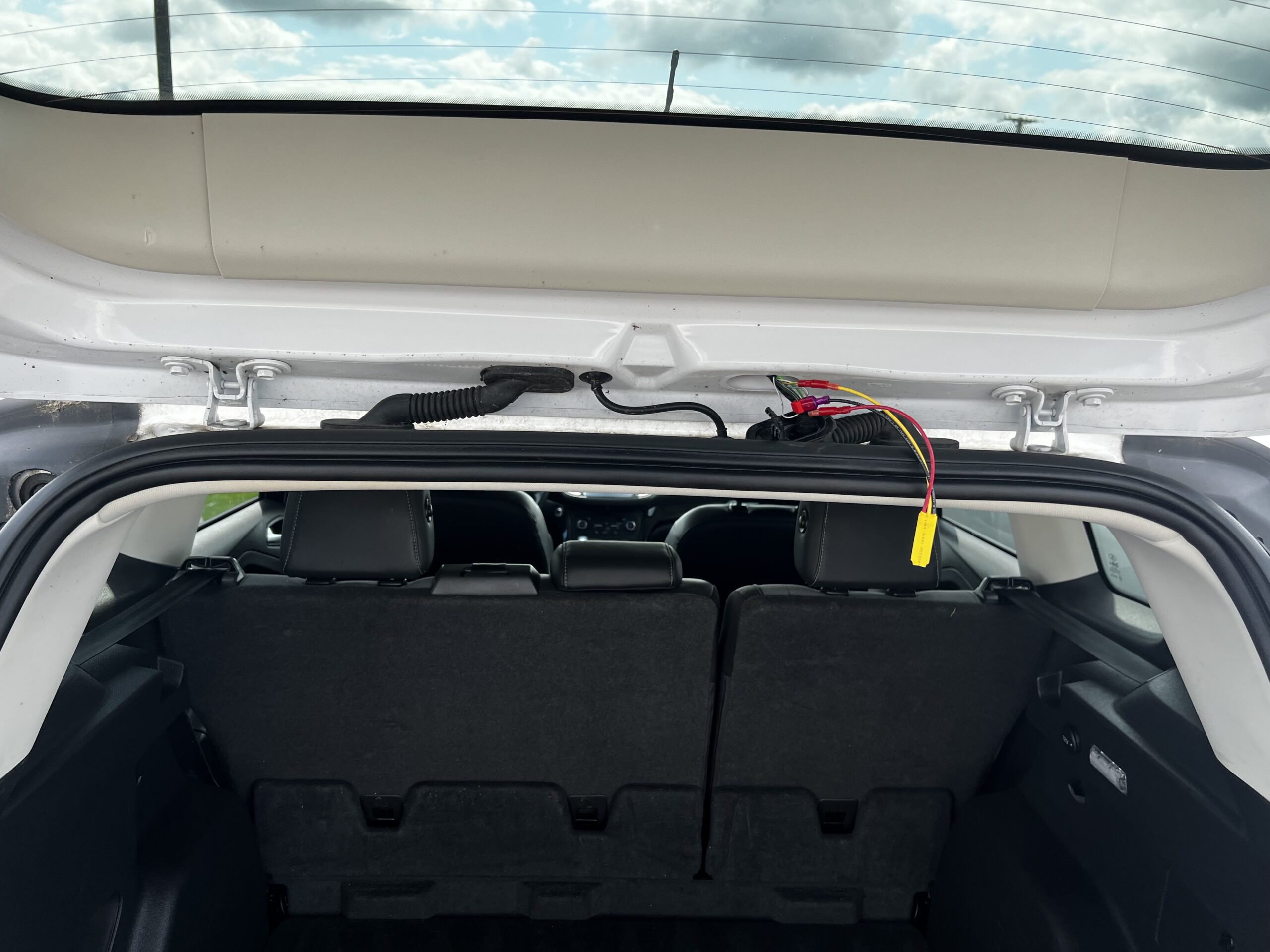

Open the trunk hatch. The wires are in the passenger side rubber boot in between the trunk hatch and vehicle.

  • MODULE TYPE:

    REGULAR
    There are 3 types of Brake Plus modules: Regular, Black Stripe, Red Stripe

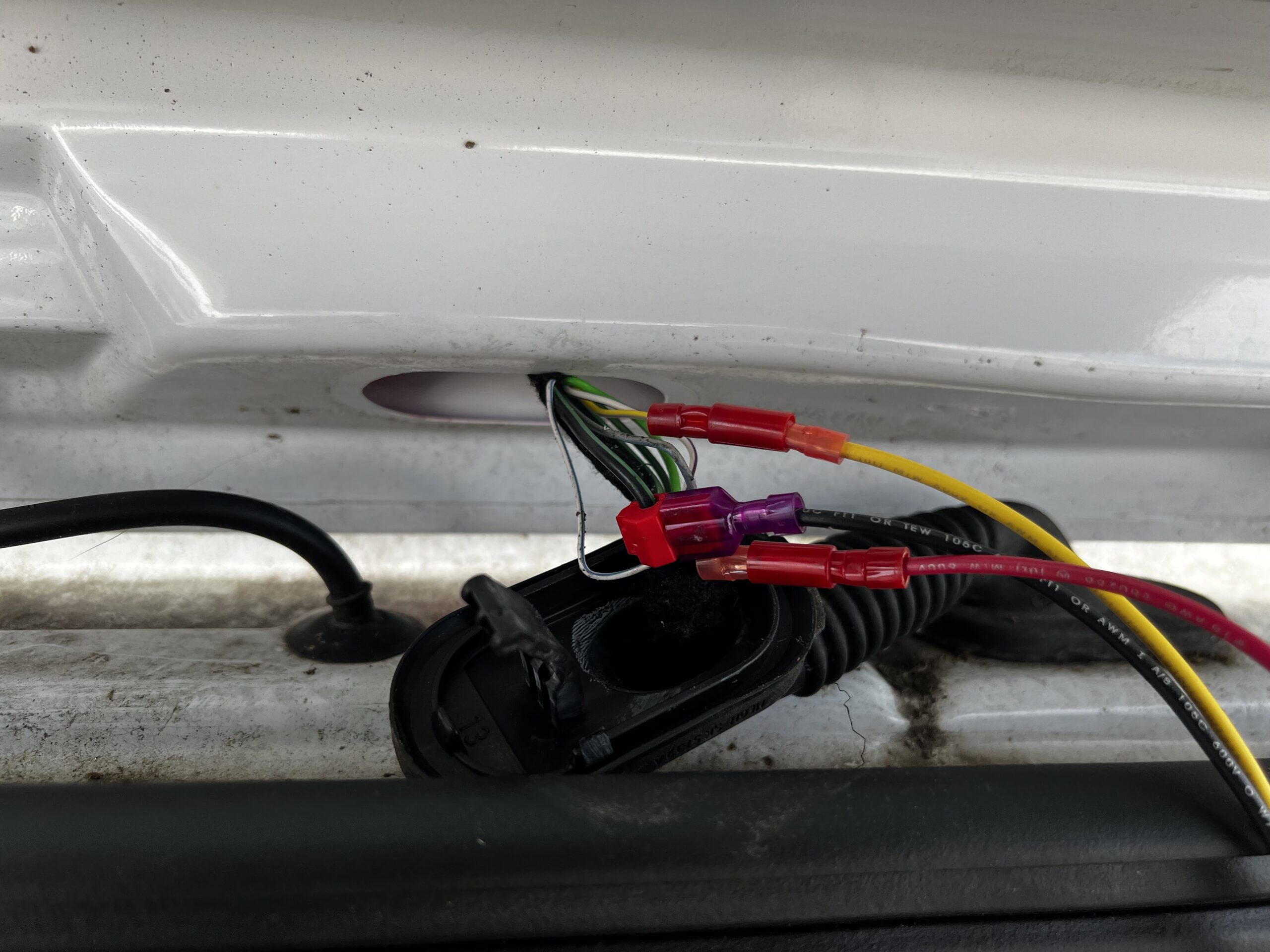

  • Positive Wire:

    Yellow/Gray
  • Ground Wire

    Black/Green

Additional Information:

The ground wires in the boot will be thicker than the positive wire.
