F-PACE 2016-2022

Jaguar

Installation Instructions:

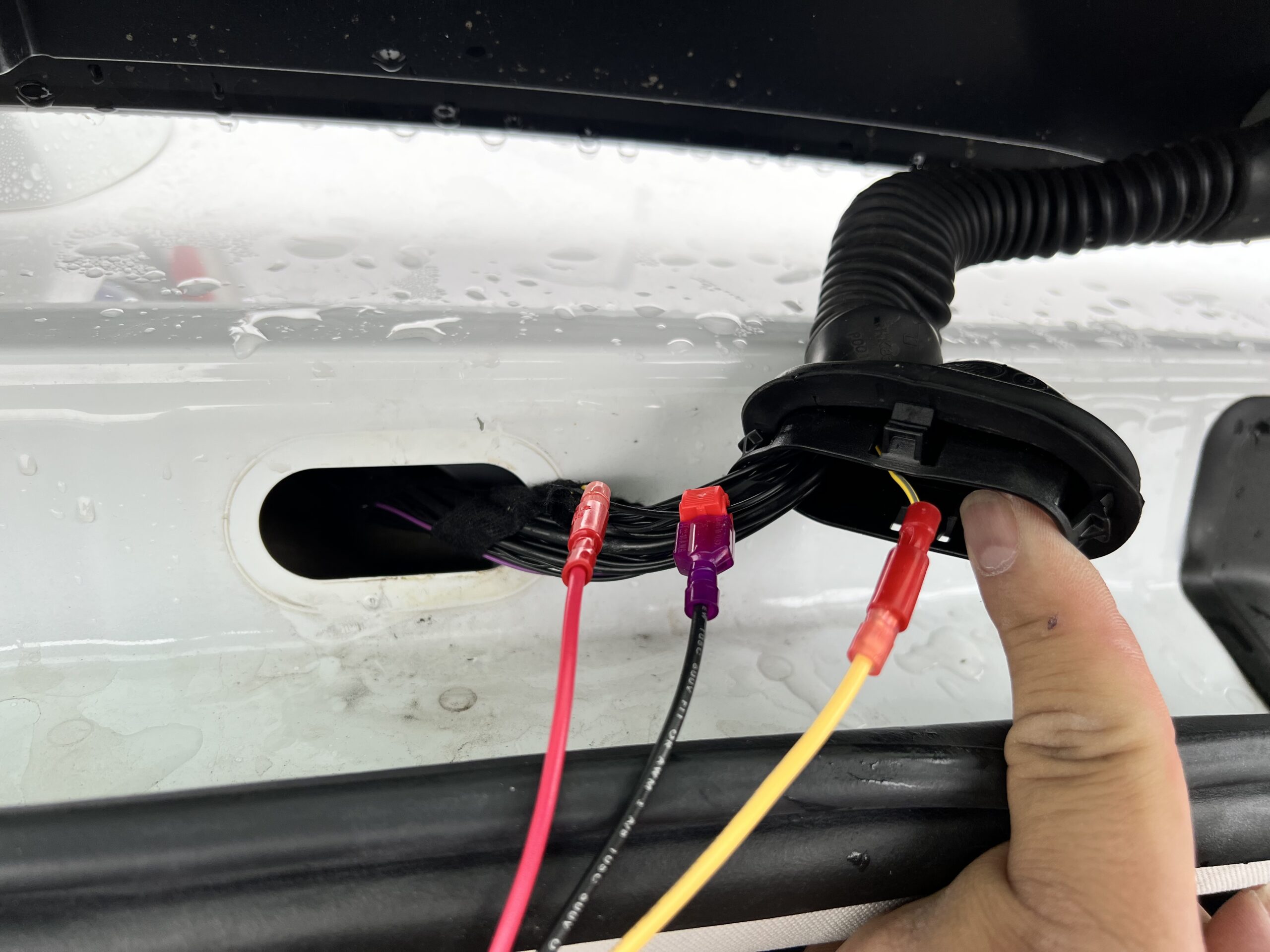

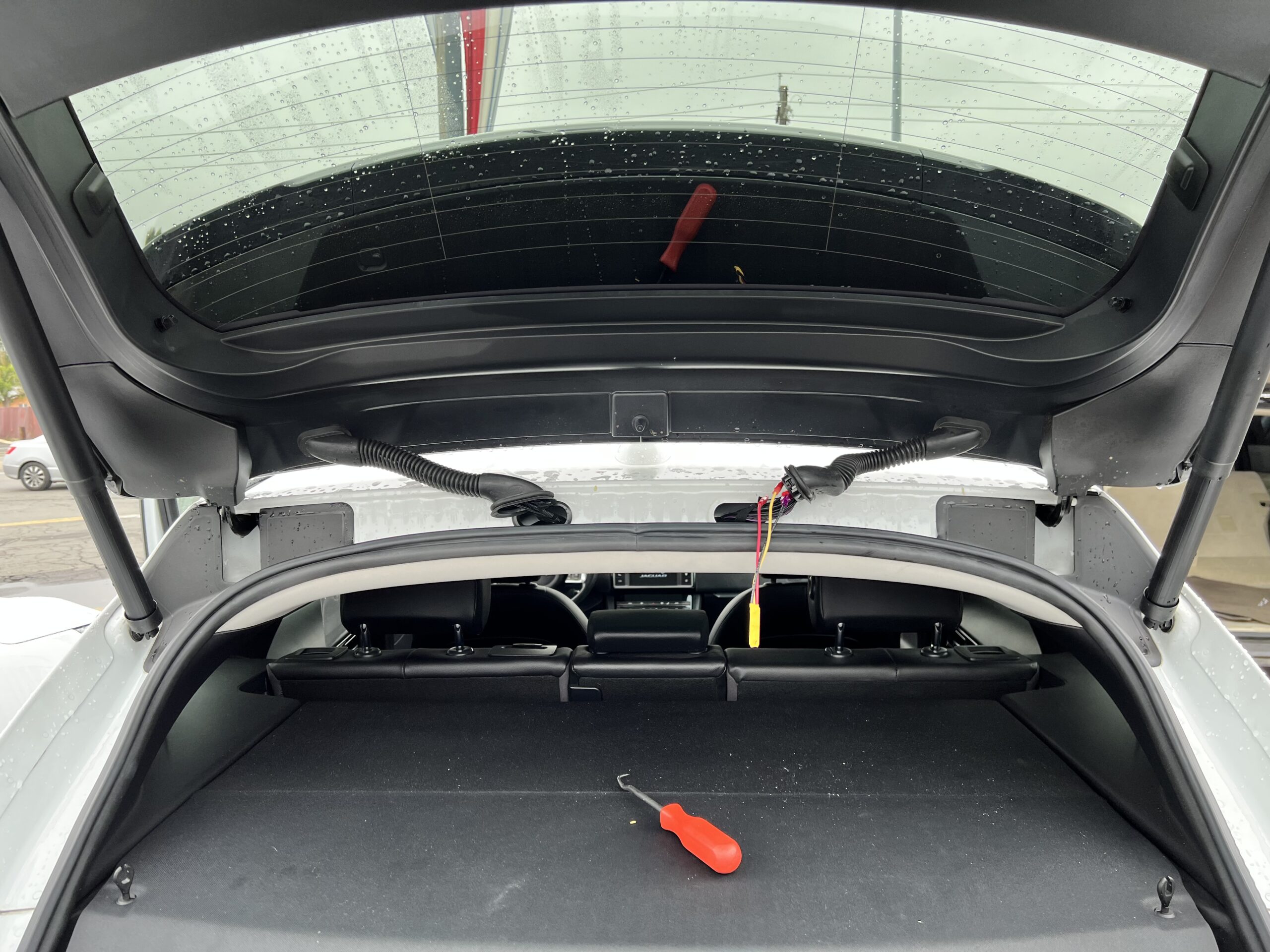

Open the back hatch of the vehicle. The wires will be located in the black rubber boot on the right side. Pop open the black rubber boot that is leading into the interior of the vehicle. Cut back any black tape in the boot to access the brake light wires.

Additional Information:

None

  • Positive Wire:

    Yellow/Gray

  • Ground Wire

    Black/White

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
