Frontier 2008-2026

Nissan

Installation Instructions:

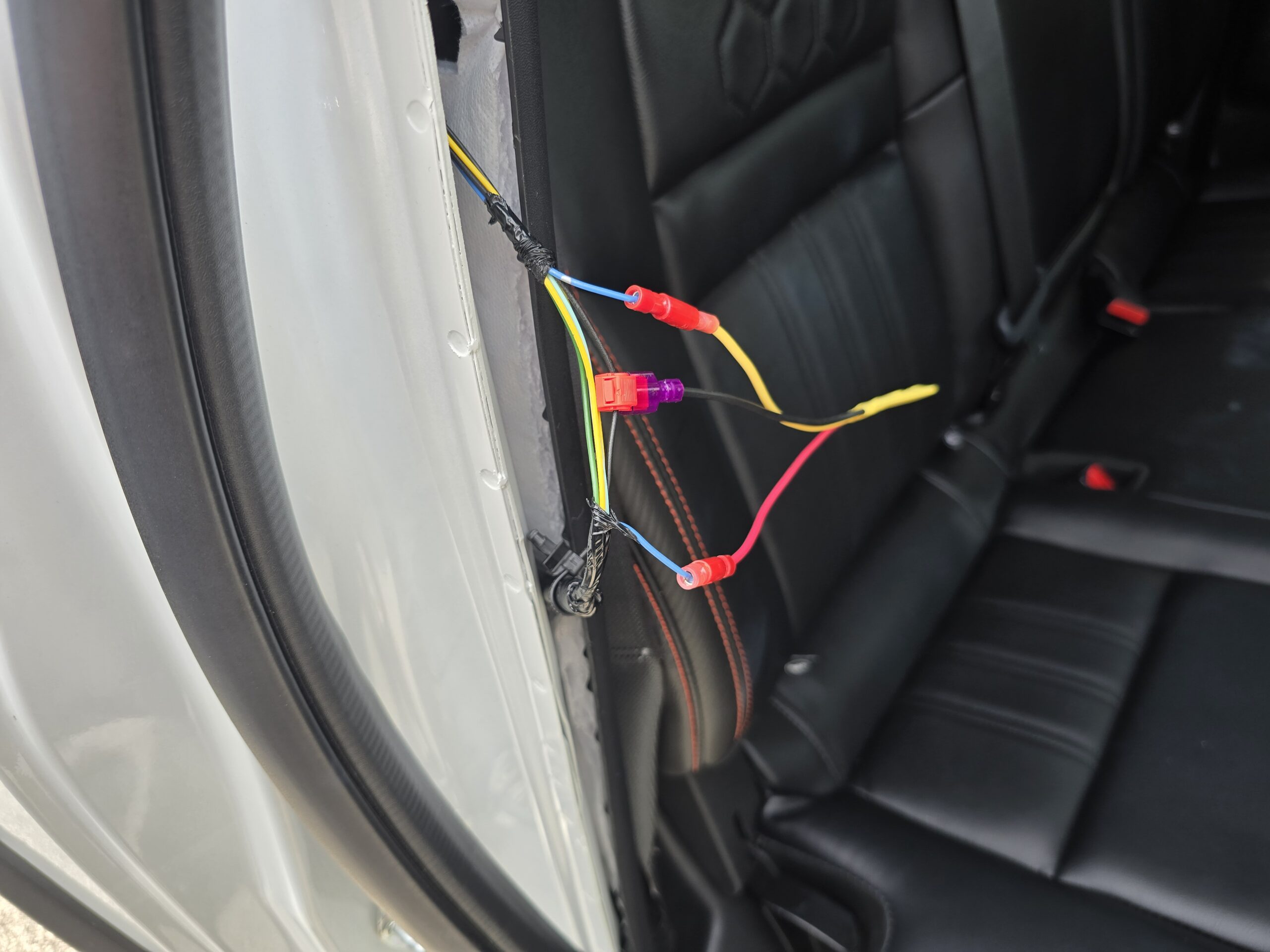

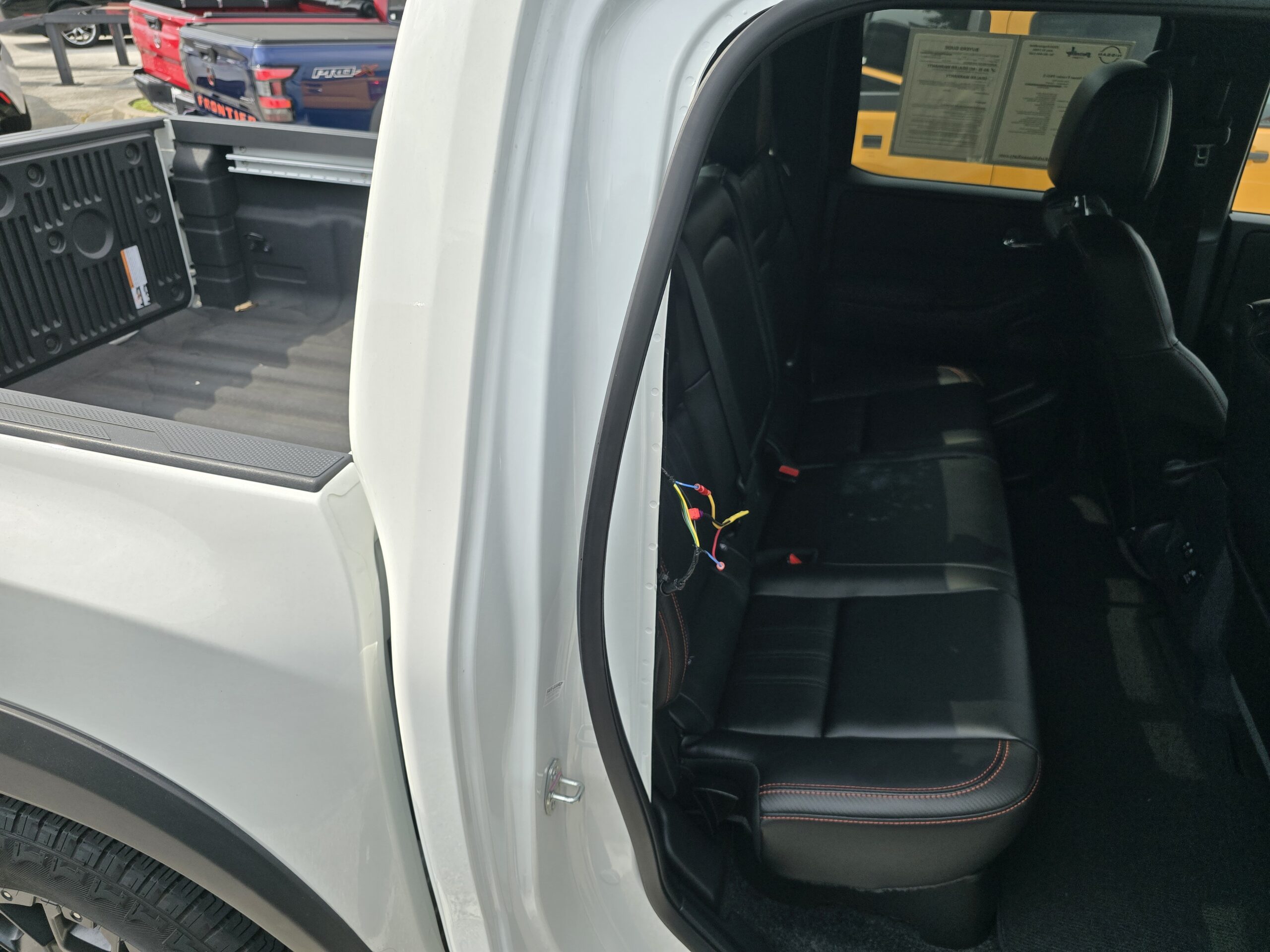

Fold down the rear seat on the passenger side. Remove the weather seal on the side by the seat. Pop the panel next to the seat toward the driver side. The wires are in the thin harness running up to the roof.

Additional Information:

None

  • Positive Wire:

    Blue

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
