Ioniq 5 2021-2024

Hyundai

Installation Instructions:

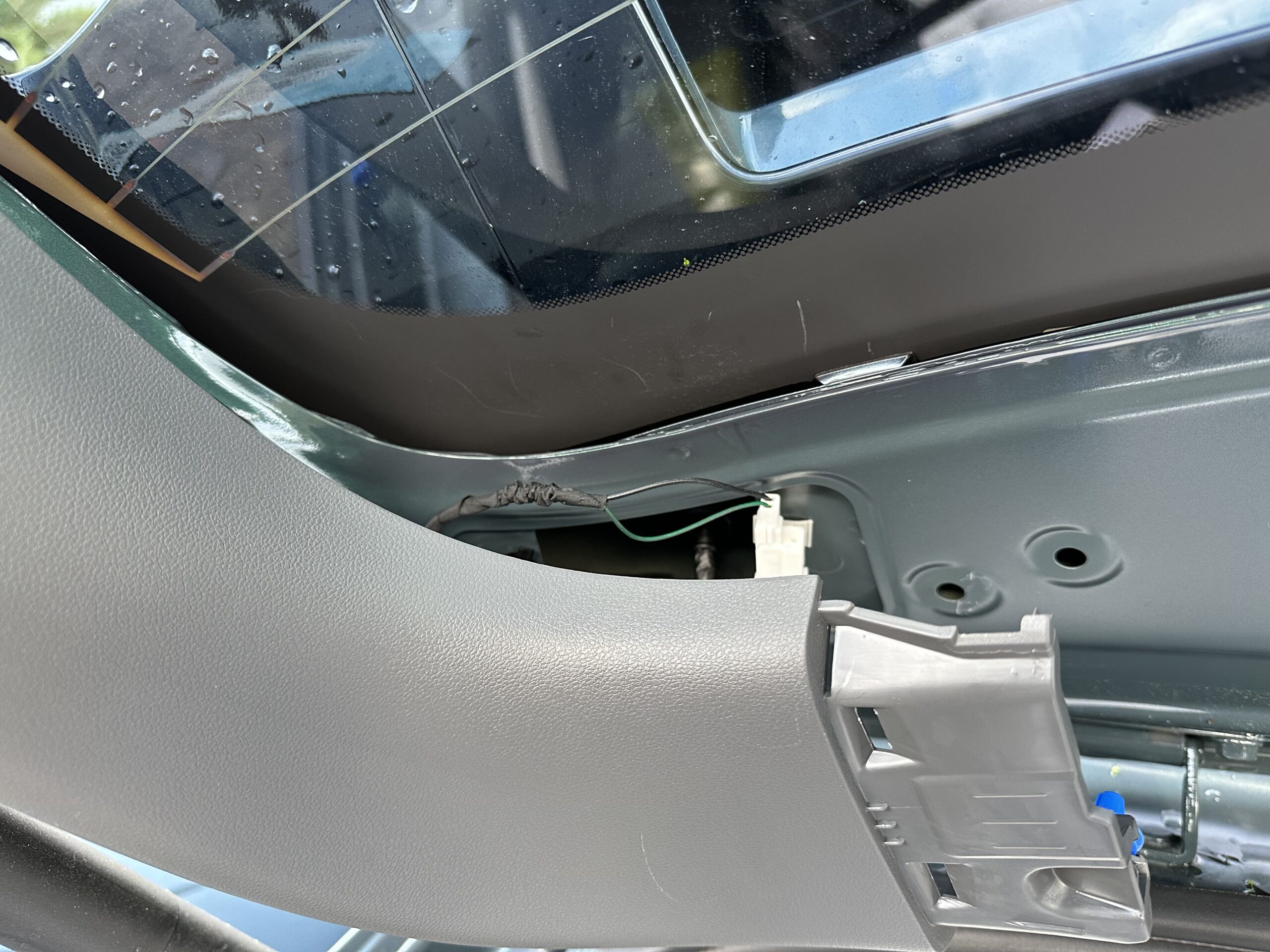

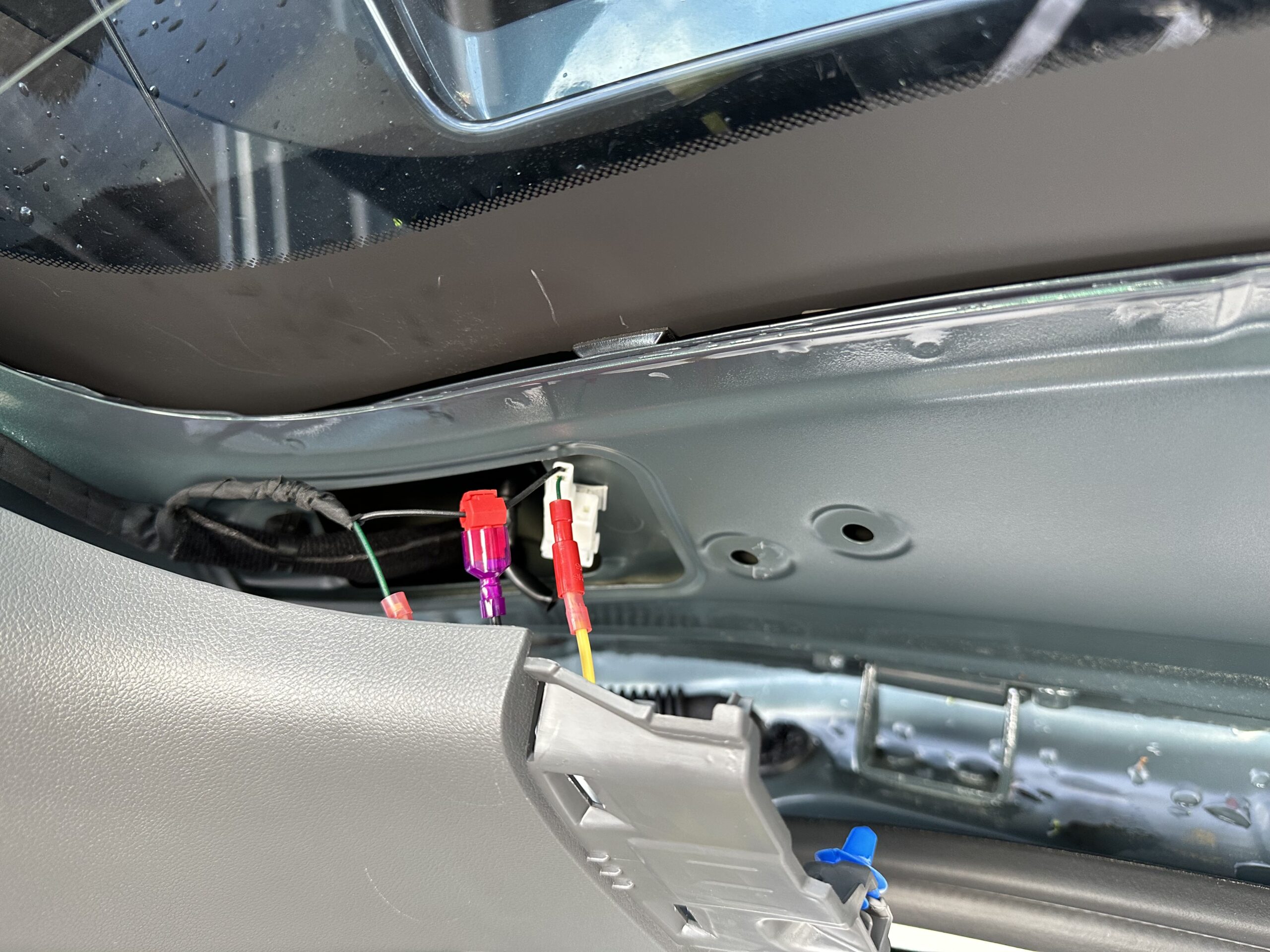

Open the back hatch of the vehicle and remove the top center panel. Once the top center panel is removed, pop the left side panel loose. The wires will be located on the driver side in the top left corner of the back hatch. To access the wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    Green

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
