KLX300 2021-2023

Kawasaki

Installation Instructions:

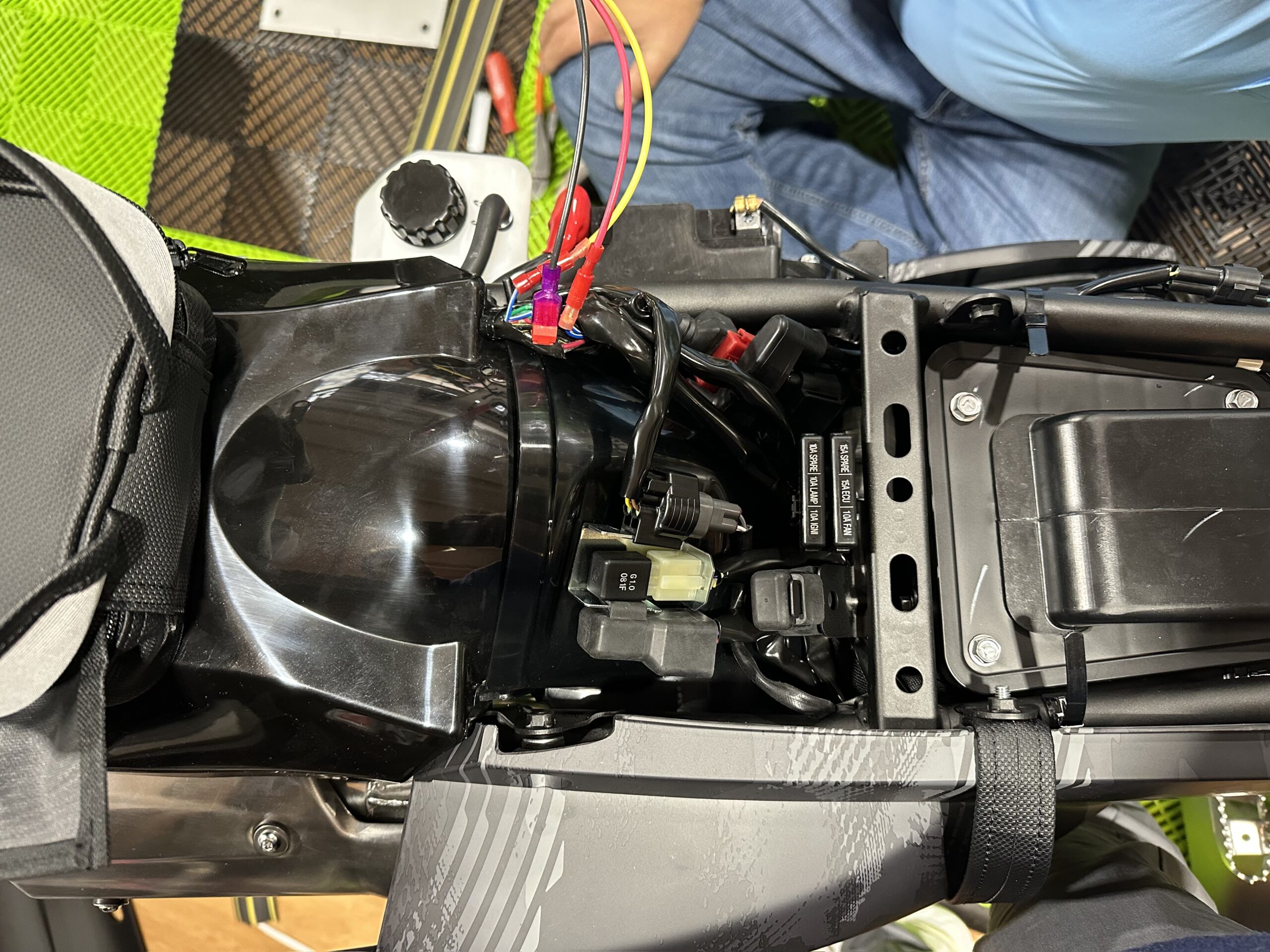

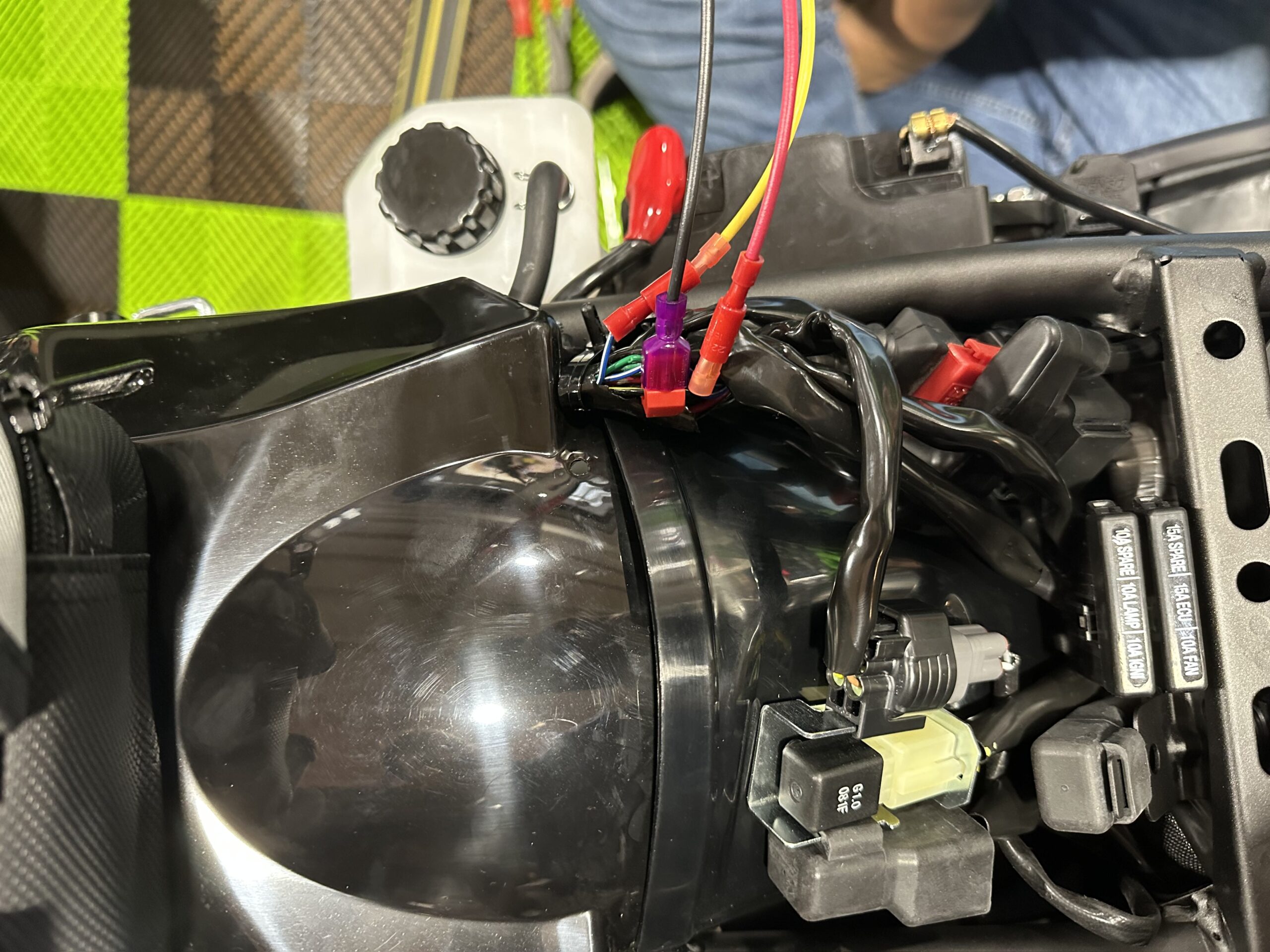

Remove the seat on the bike. The wires will be located in the thick black wire loom leading back towards the brake light.

Additional Information:

There will be two blue/white wires which test positive for the brake light—one of the wires is a dummy wire added for accessories, and the other is for the brake light. You will have to decipher which is which.

  • Positive Wire:

    Blue/White

  • Ground Wire

    Black/Yellow

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
