LaCrosse 2010-2016

Buick

Installation Instructions:

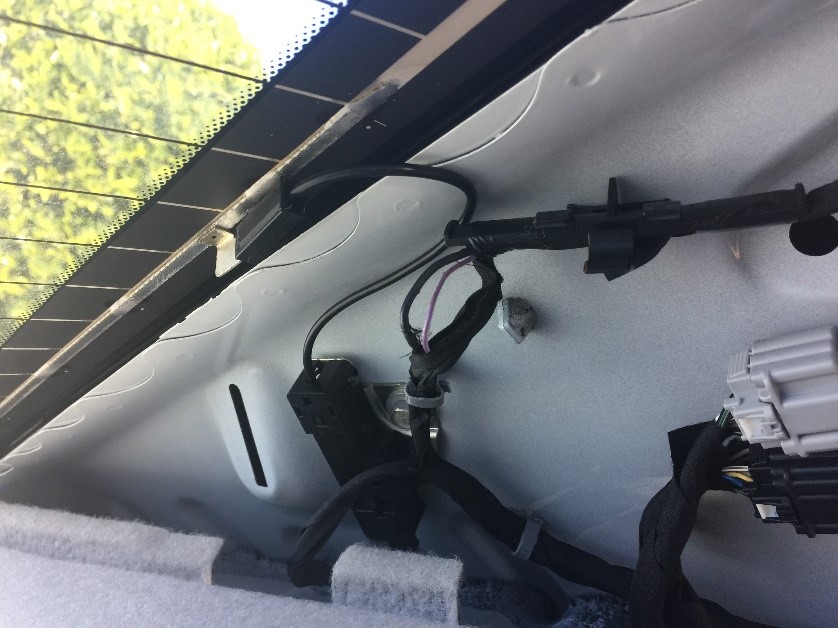

Open the driver rear door. Remove the c-pillar panel to access the wire. Remove the 10-mm bolt located behind the small rectangular airbag sign in the c-pillar cover. The wires are in the harness coming from the roof of the car.

  • MODULE TYPE:

    REGULAR
    There are 3 types of Brake Plus modules: Regular, Black Stripe, Red Stripe
  • Positive Wire:

    Violet/White
  • Ground Wire

    Black

Additional Information:

The wires are not in the black or gray plugs.
