Legacy 2020-2025

Subaru

Installation Instructions:

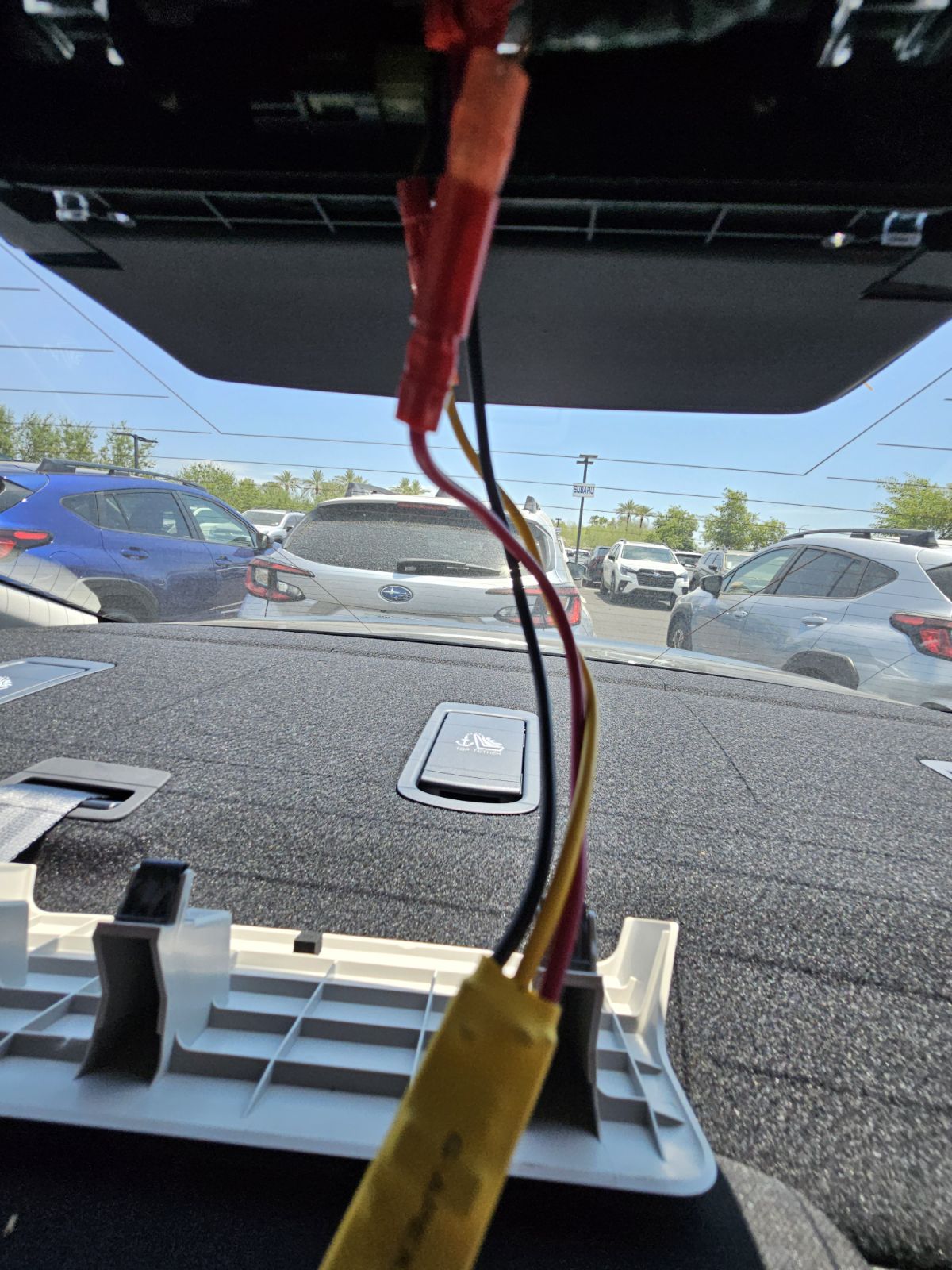

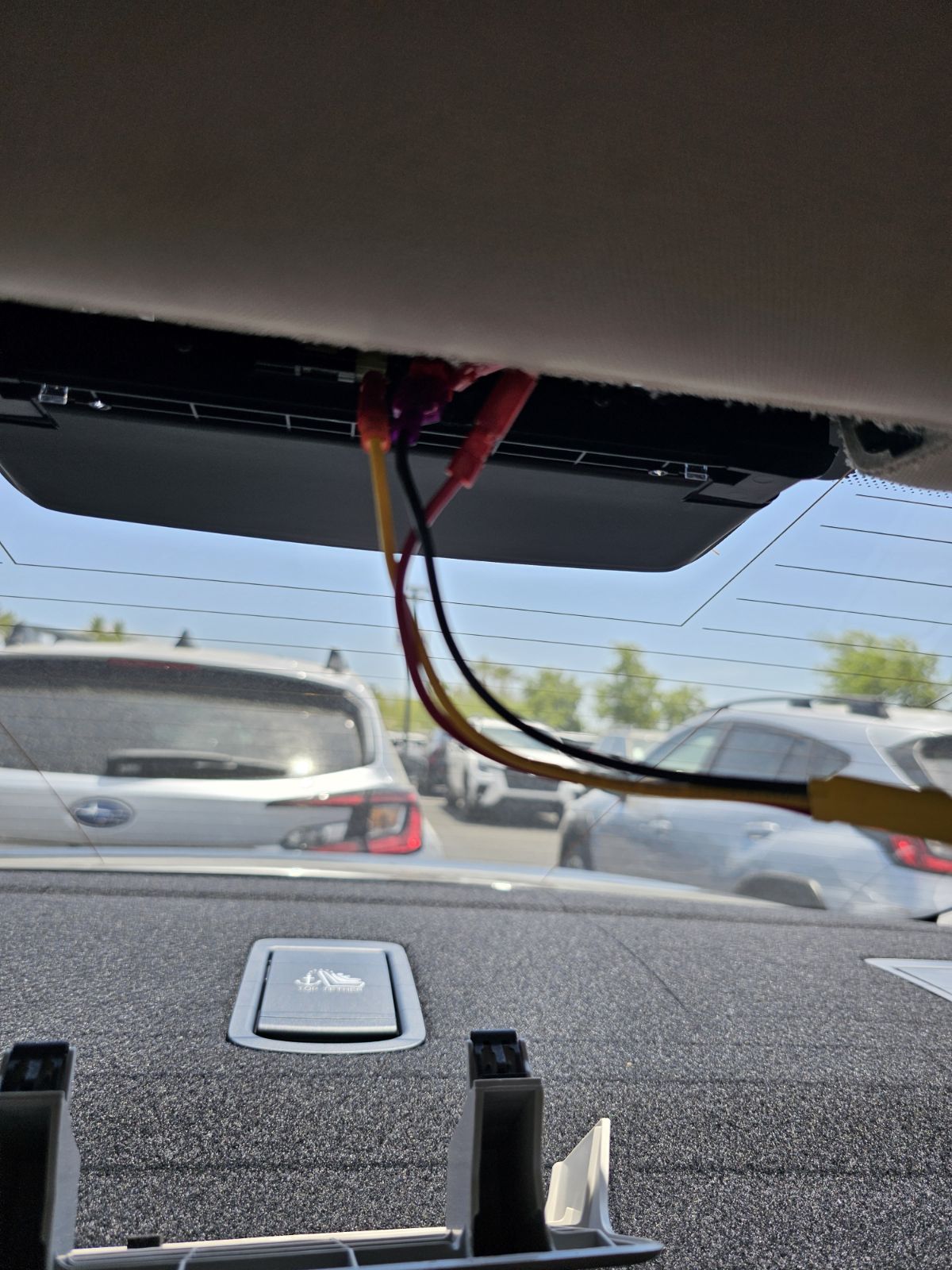

Open the rear door and locate the brake light at the rear of the headliner. Remove the cover by pulling it straight down. The wires are in the clear 2-pin harness on the brake light--unplug to facilitate the install.

Additional Information:

None

  • Positive Wire:

    Brown

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
