Model Y 2022

Tesla

Installation Instructions:

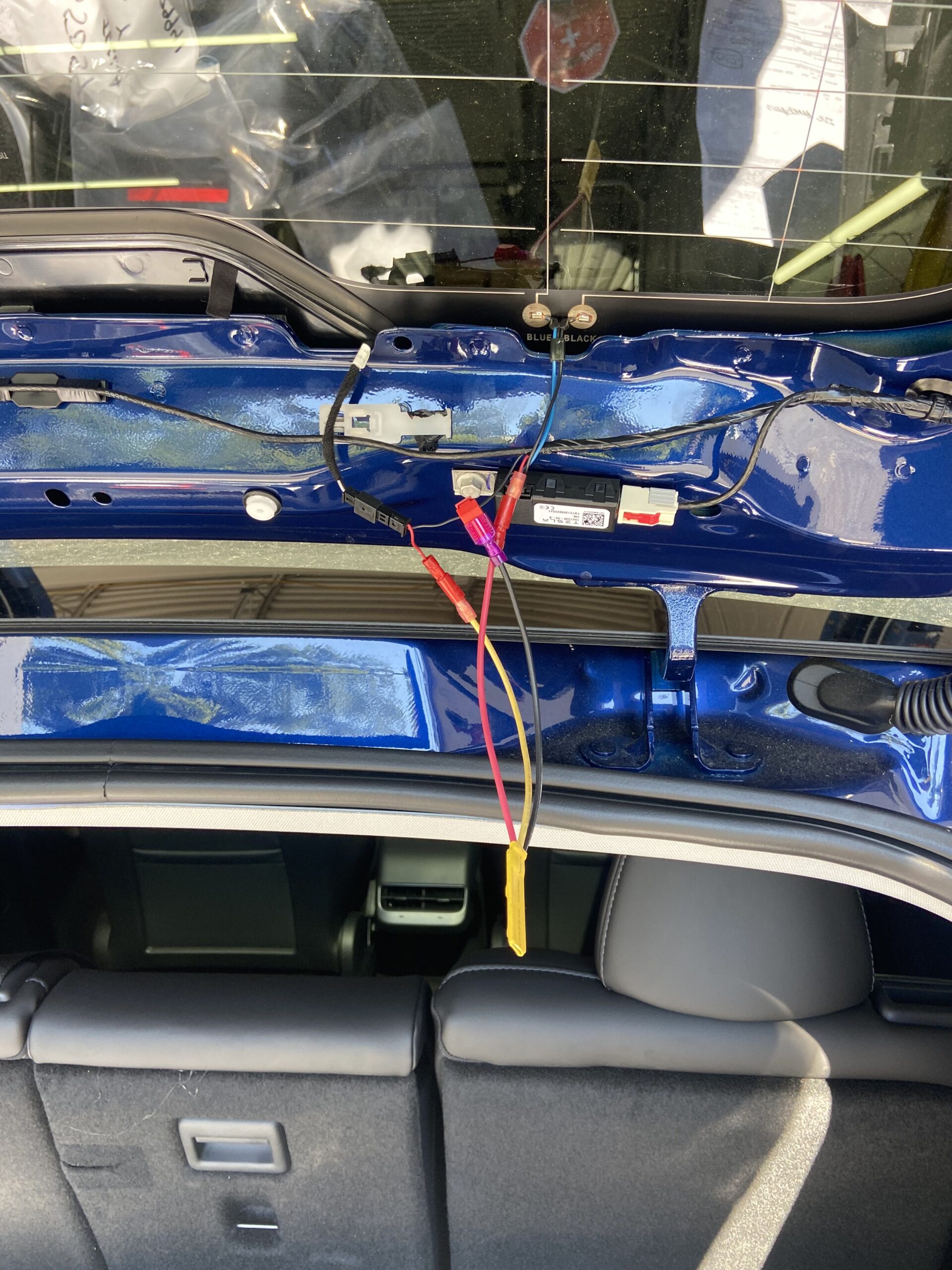

Open the rear hatch to the vehicle and pull down the top panel. The brake light wires will be located in the center of the vehicle coming from a black 2- pin plug that leads to the glass of the back window.

Additional Information:

None

  • Positive Wire:

    Red

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
