Mustang Mach-E 2021-2024

Ford

Installation Instructions:

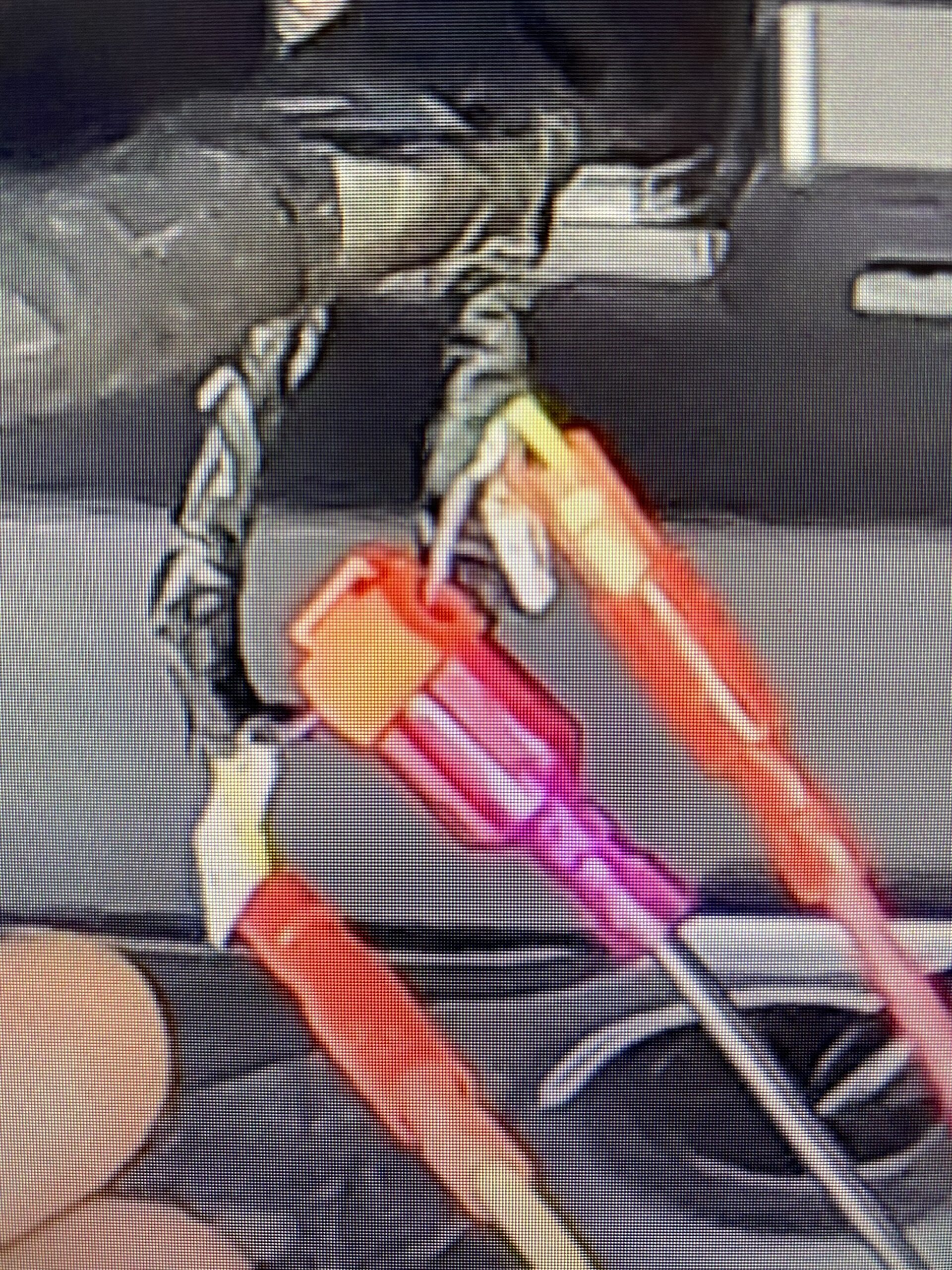

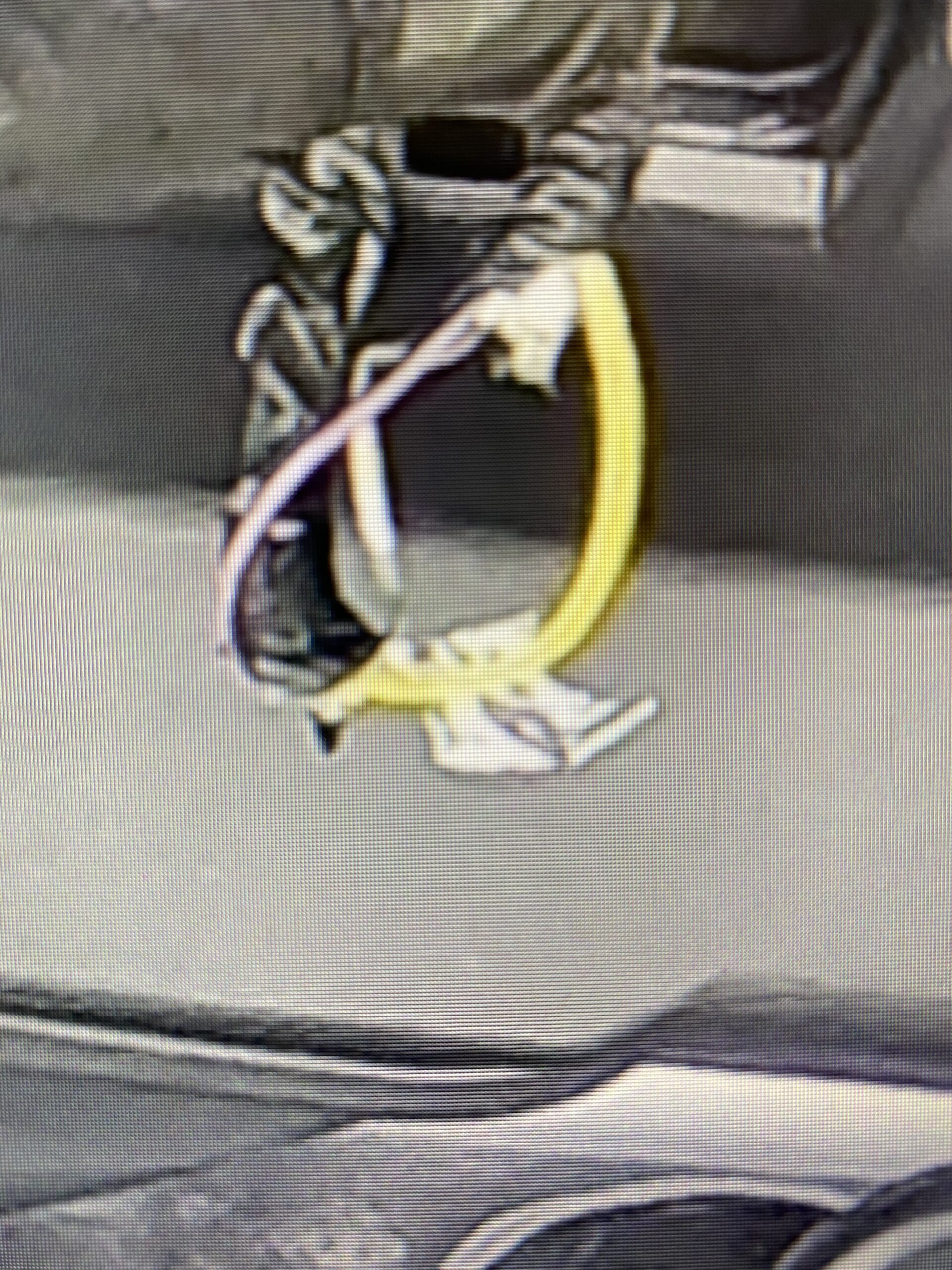

Open the back hatch and pull down the window shade cover. Remove the panel directly below the third brake light. The harness will be on the driver side of the vehicle. The wires will be located in the smaller harness that splits off. Cut back the black tape to access the wires.

Additional Information:

None

  • Positive Wire:

    Yellow/Gray

  • Ground Wire

    Black/Purple

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
