NX 2014-2018

Lexus

Installation Instructions:

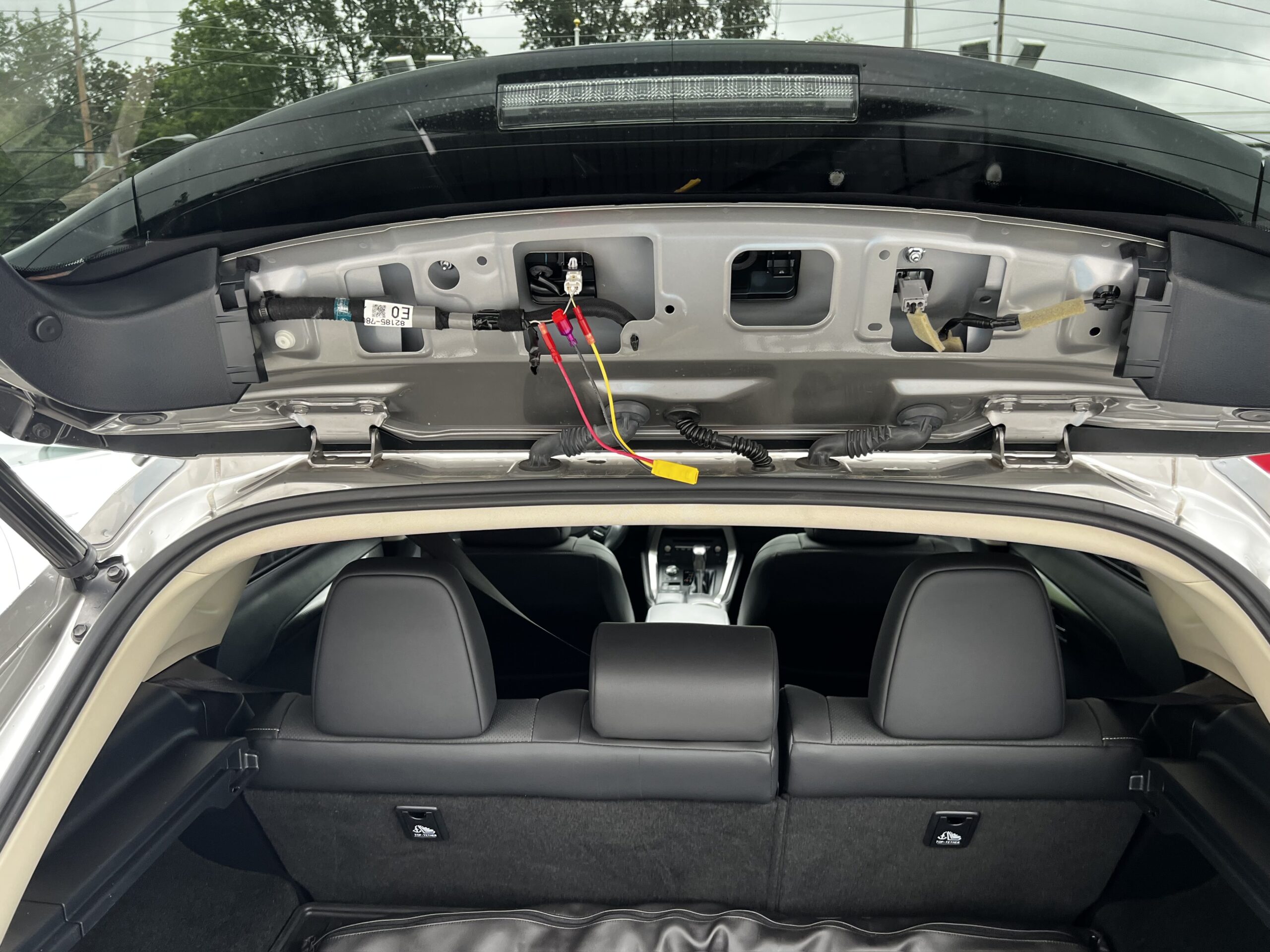

Open the rear hatch of the vehicle and pull down the back center panel. The wires will be located on the driver side in the rectangular opening leading from a white 2-pin plug. To access the wires, cut back the black wire loom.

Additional Information:

None

  • Positive Wire:

    Yellow/White

  • Ground Wire

    Black/White

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
