Panamera 2018

Porsche

Installation Instructions:

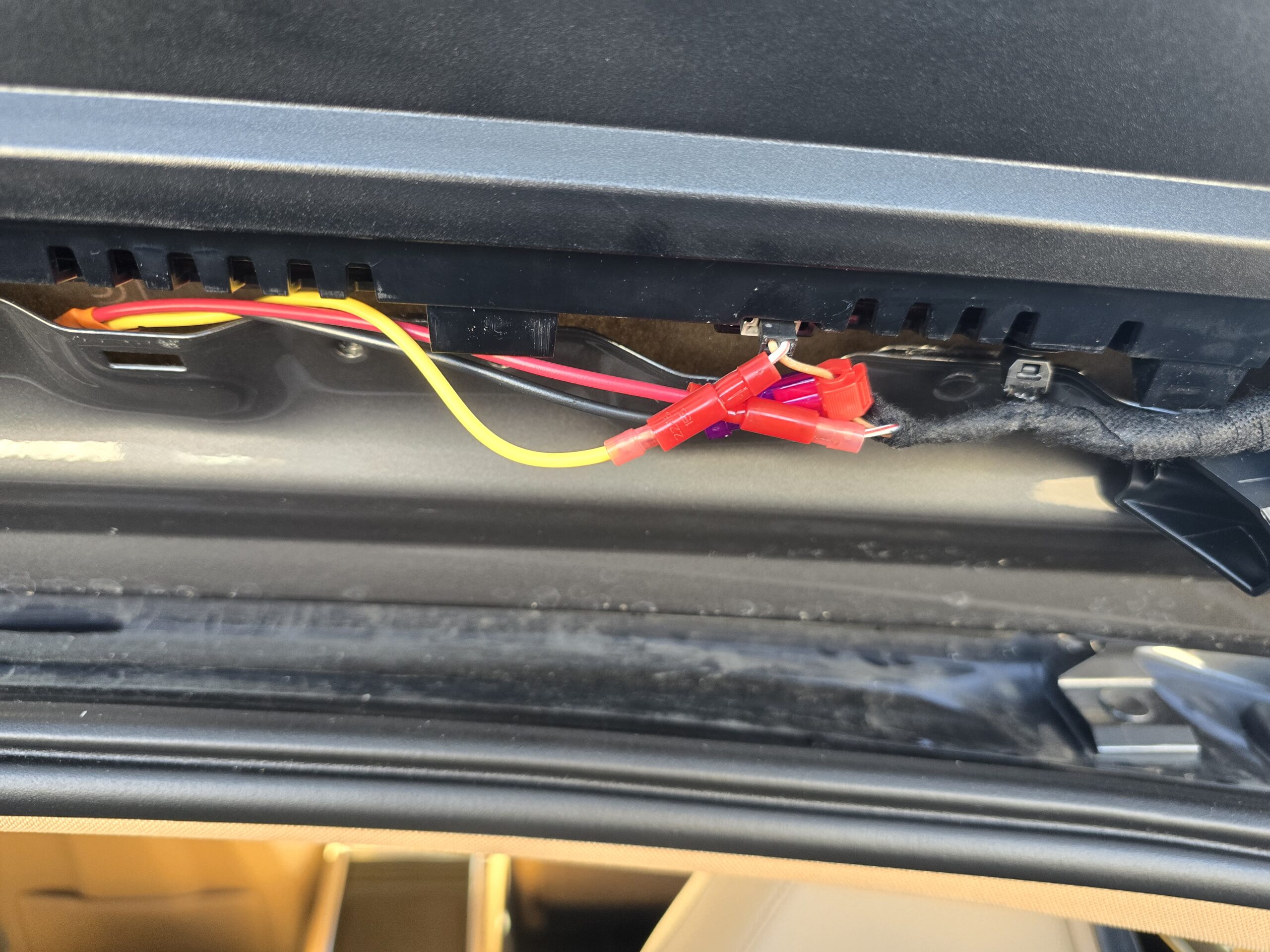

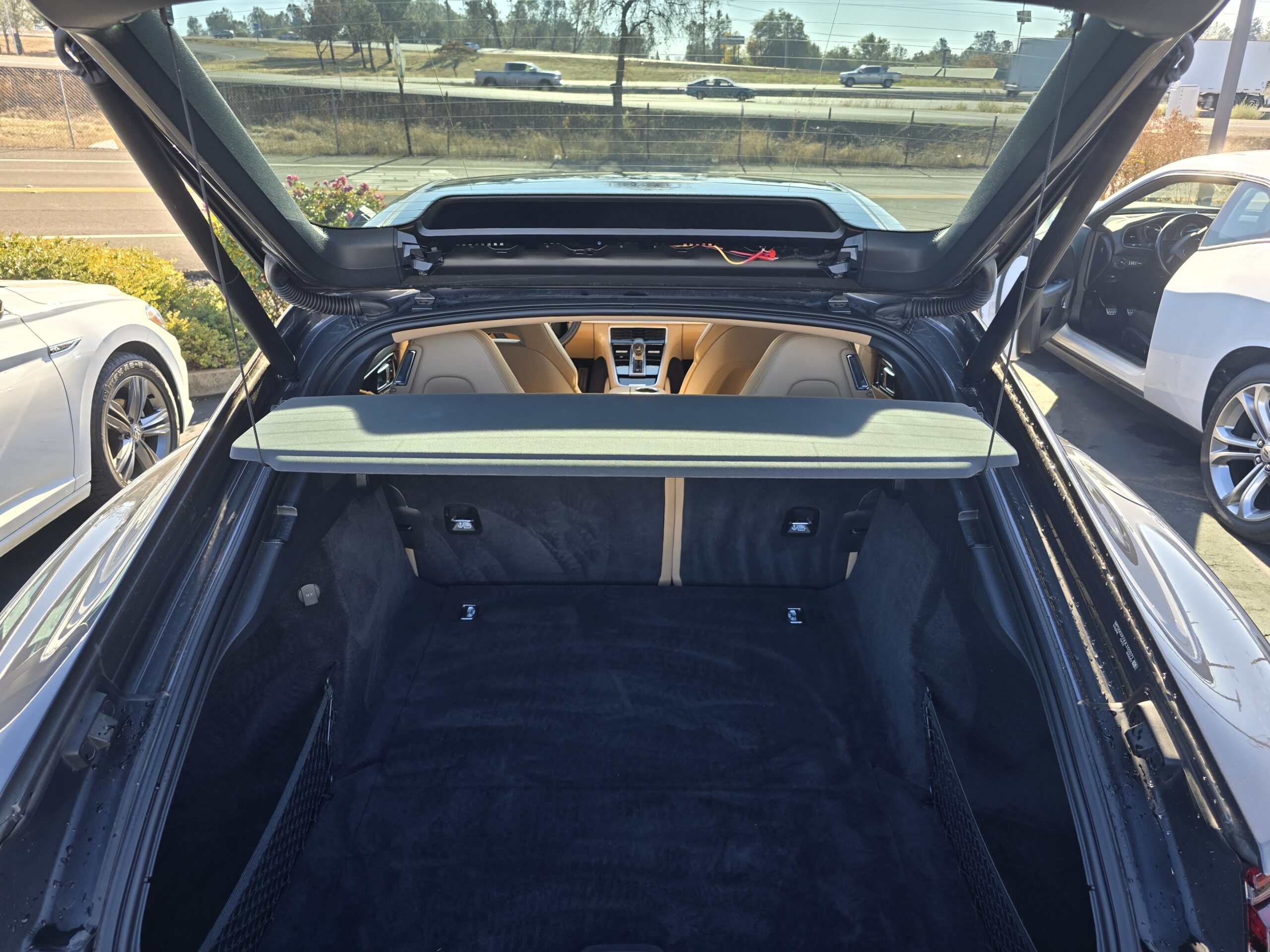

Open the hatch and Remove the center panel at the top of the liftgate—behind the brake light. The wires will be the ones on the passenger side. The wires will be in a black 2-pin plug directly under the light.

Additional Information:

None

  • Positive Wire:

    White/Orange

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
