Pilot 2024-2026

Honda

Installation Instructions:

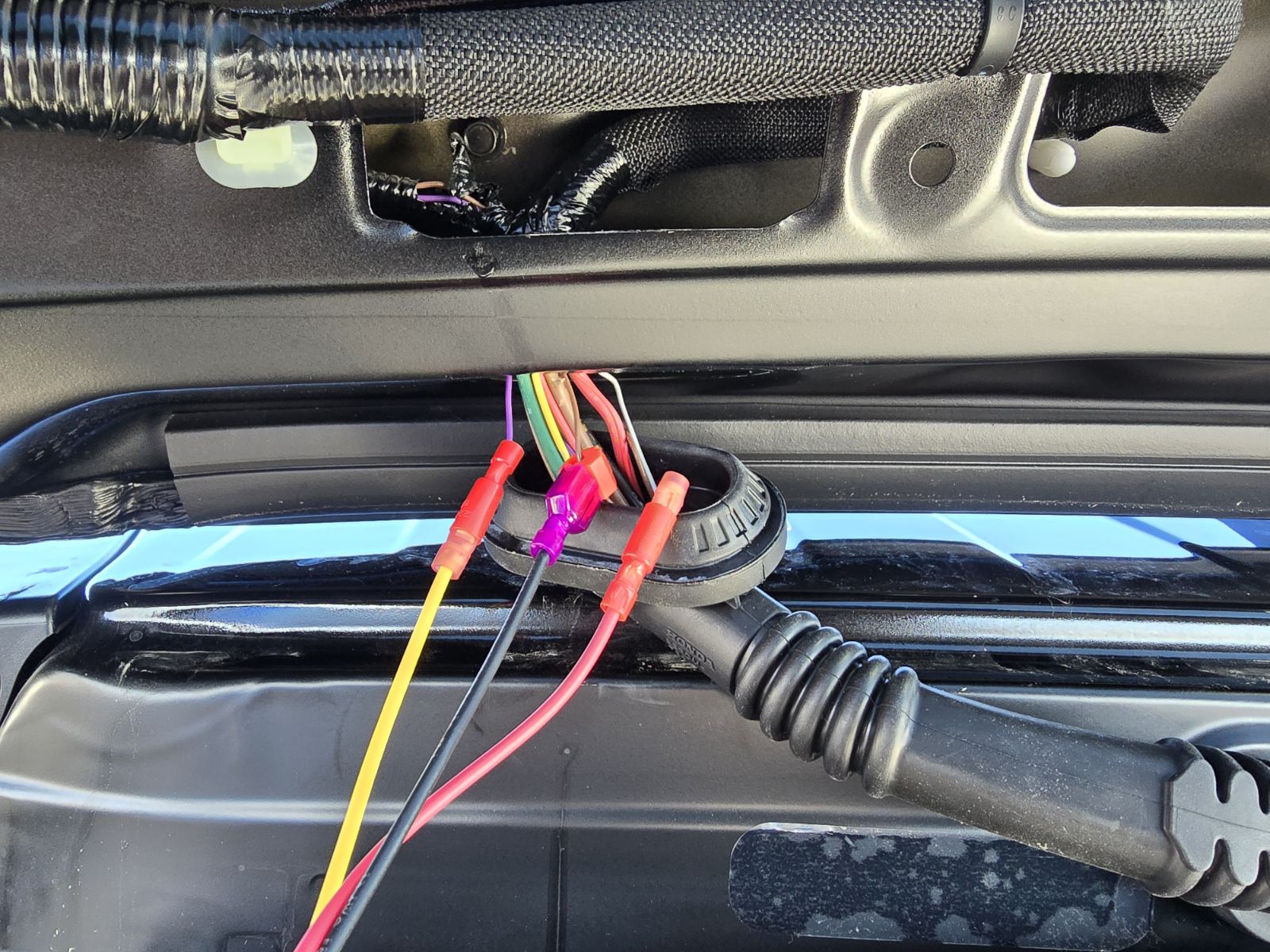

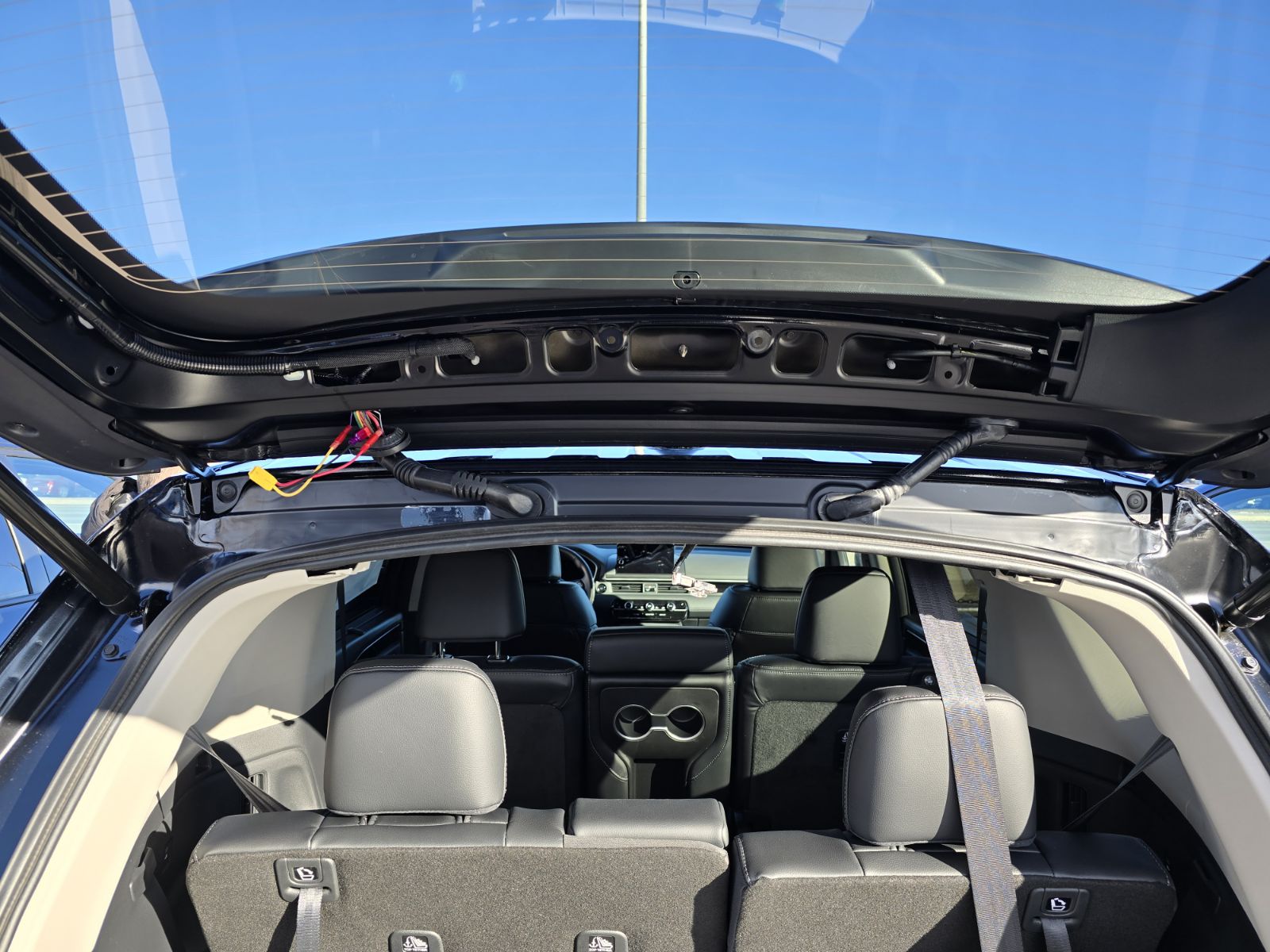

Open the back hatch of the vehicle and remove the top center panel. The brake light wires will be located in the rubber boot on the left side. Pull down the rubber boot to access the wires. The positive wire will be the thicker purple wire out of the 2 purple wires.

Additional Information:

None

  • Positive Wire:

    Purple (thicker)

  • Ground Wire

    Tan

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
