RDX 2019-2023

Acura

Installation Instructions:

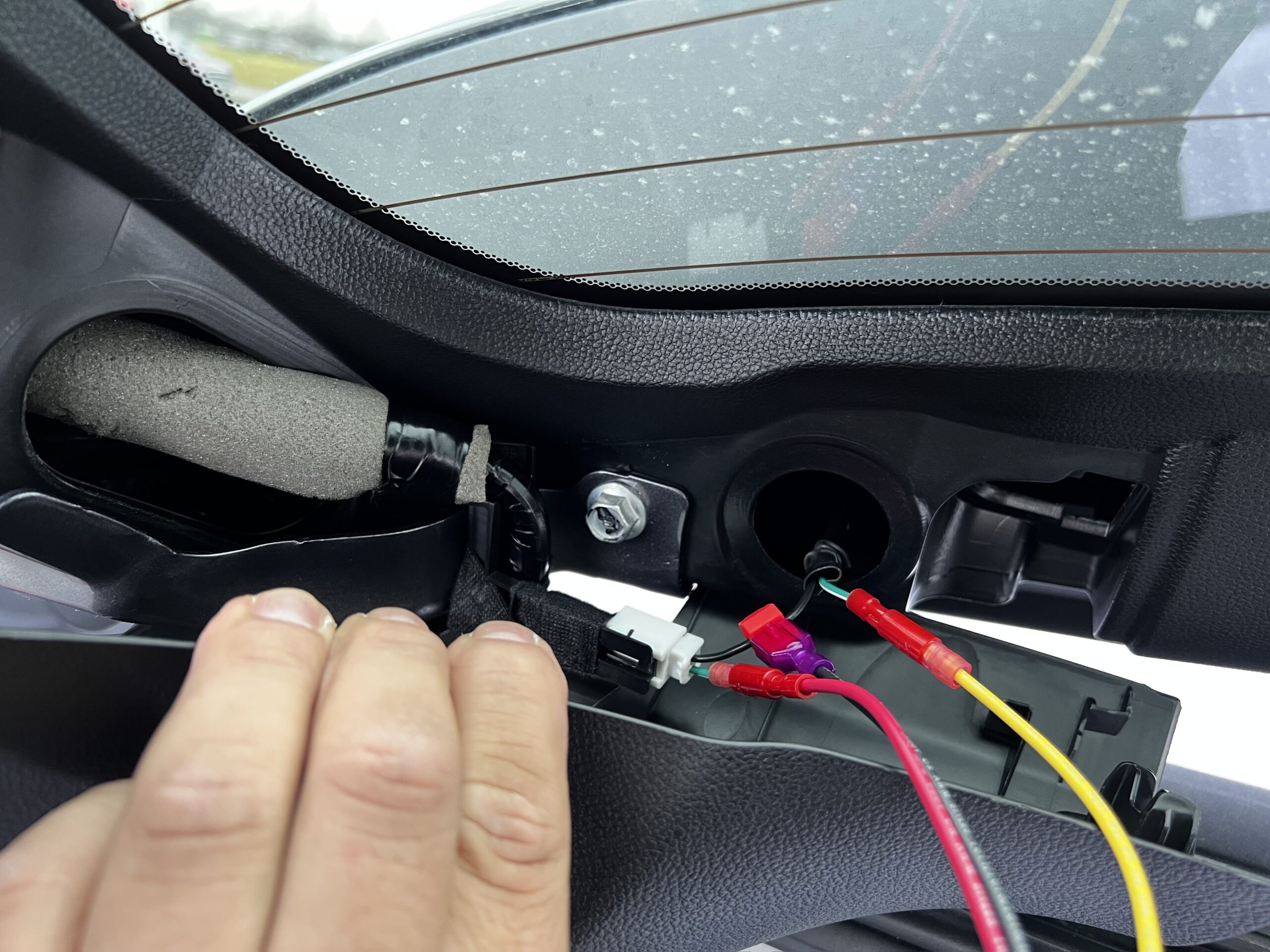

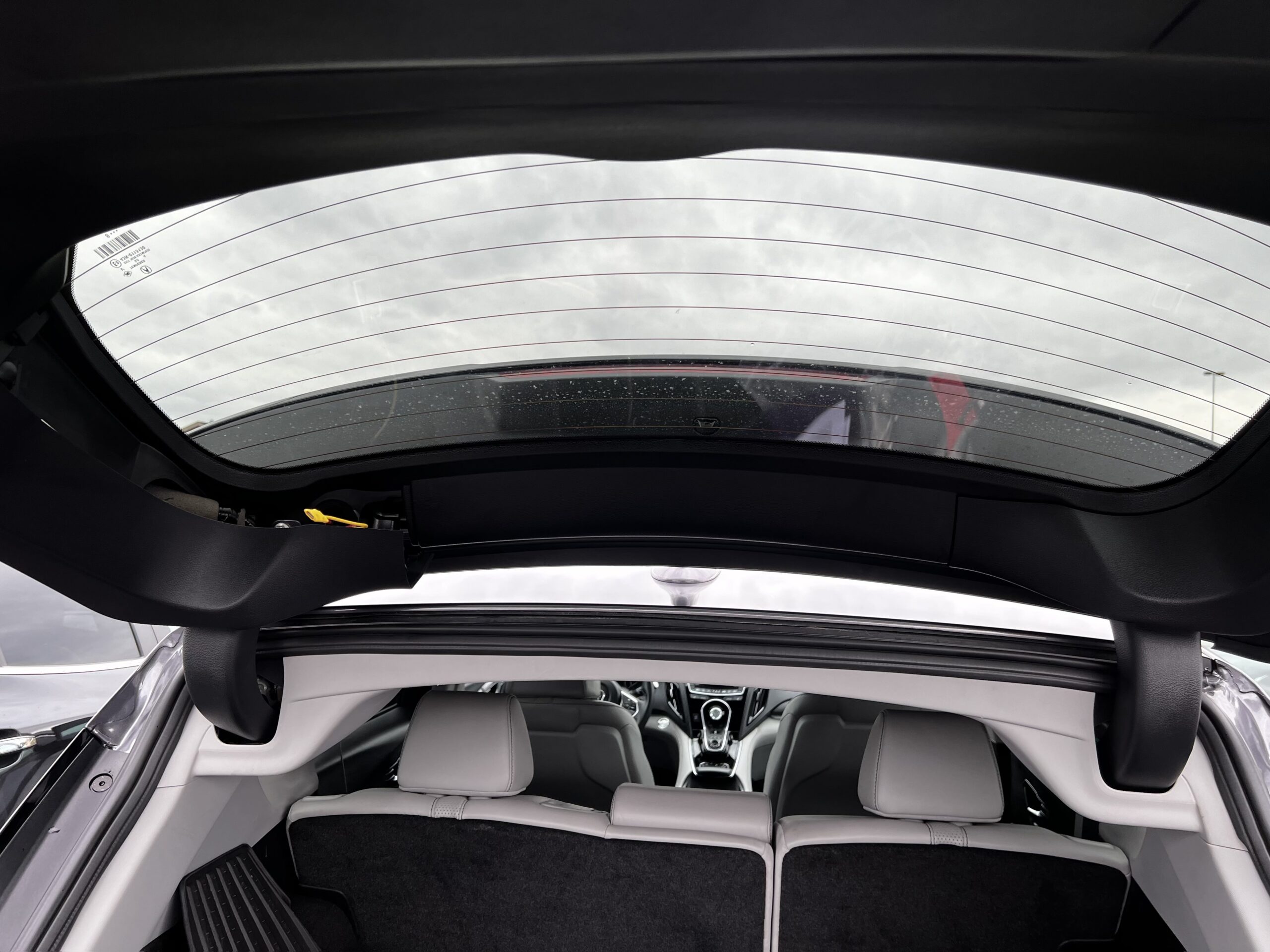

Open the back hatch of the vehicle and remove the panel that is on the left side that curves connecting to the center panel. The wires will be located behind the panel coming from a white 2-pin plug that leads directly into a black rubber boot. To access the wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    Green/White

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
