S60 2019-2023

Volvo

Installation Instructions:

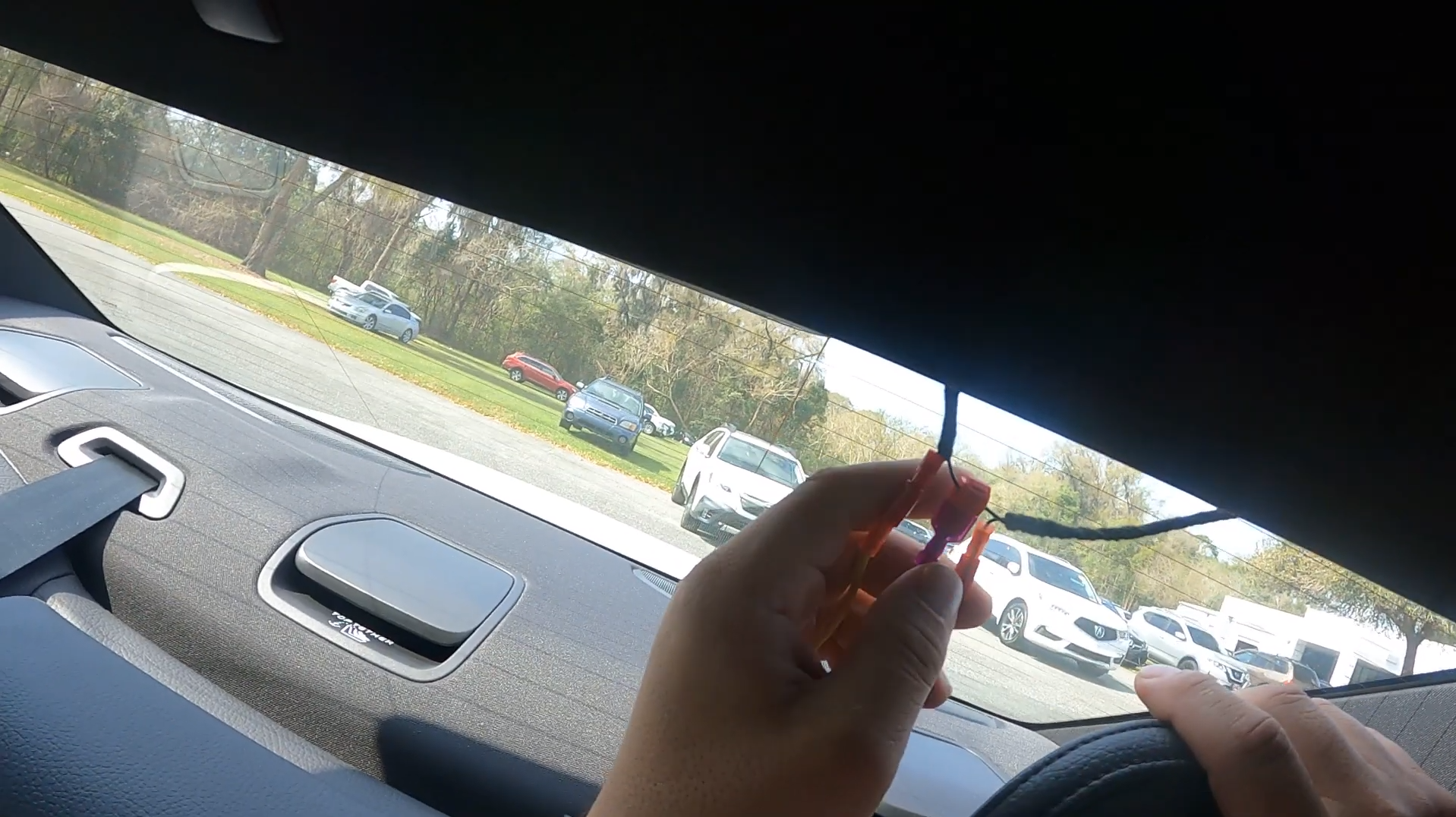

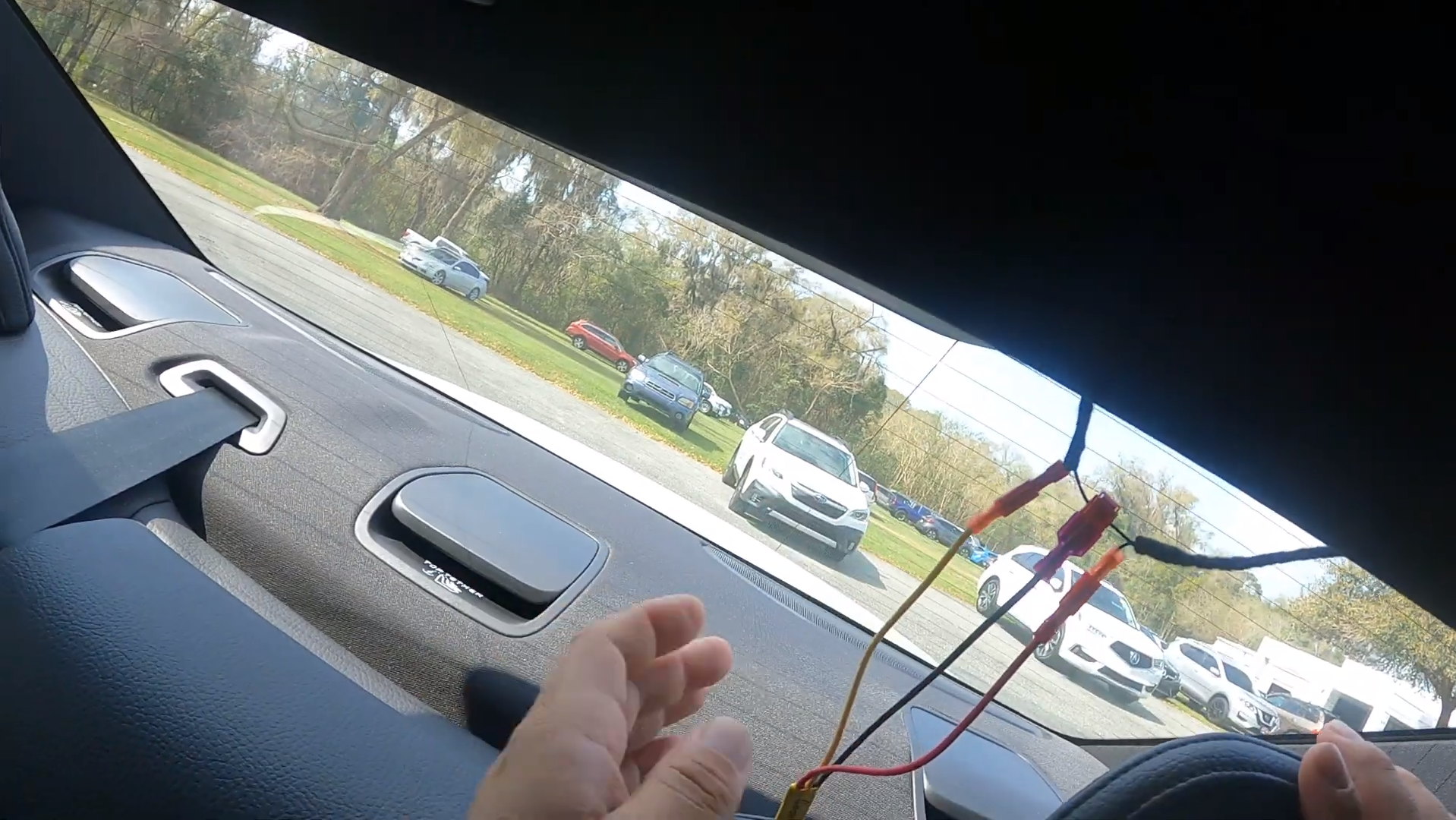

Open the rear door to access the back of the headliner. Gently pull down on the back of the headliner on the driver's side, and find the black 2-pin harness inside.

Additional Information:

The ground and positive wires are the same color (black), so you'll have to check which is your positive and which is your ground.

  • Positive Wire:

    Black

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
