Santa Fe 2019-2023

Hyundai

Installation Instructions:

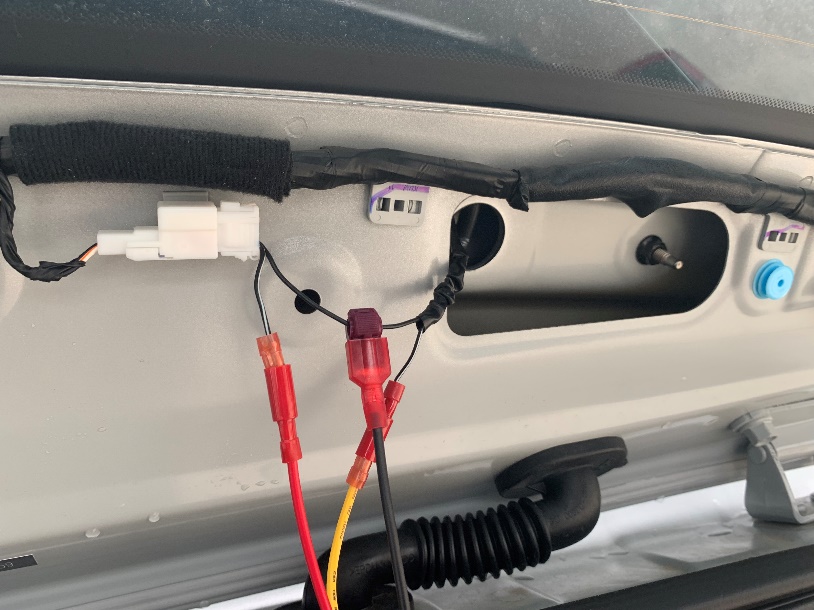

Open the hatch and remove the center panel at the top of the hatch. This will give you access to the wires just behind the third brake light.

Additional Information:

Depending on which side of the white 2-pin plug you access, the positive wire will be one of the combinations below.

  • Positive Wire:

    Black/White or White/Orange

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
