Solstice 2006-2010

Pontiac

Installation Instructions:

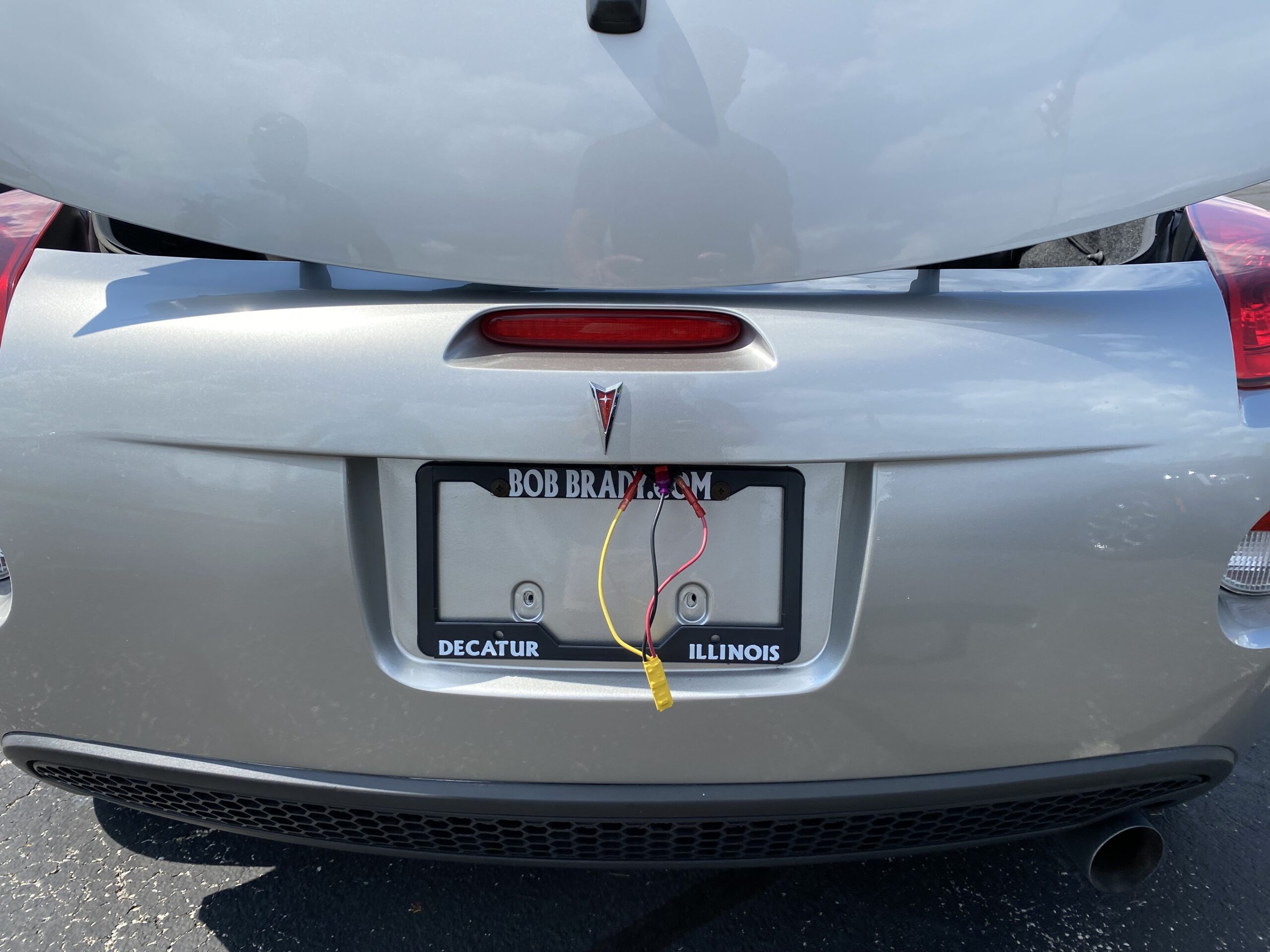

On the back on the vehicle, below the 3rd brake light, there is a rectangular hole. To locate the third brake light wires, reach into the access point and pull out the black wire harness. The brake light wires will be located inside the harness. Cut back any black tape to access the wires.

Additional Information:

None

  • Positive Wire:

    Blue

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
