Solterra 2023-2024

Subaru

Installation Instructions:

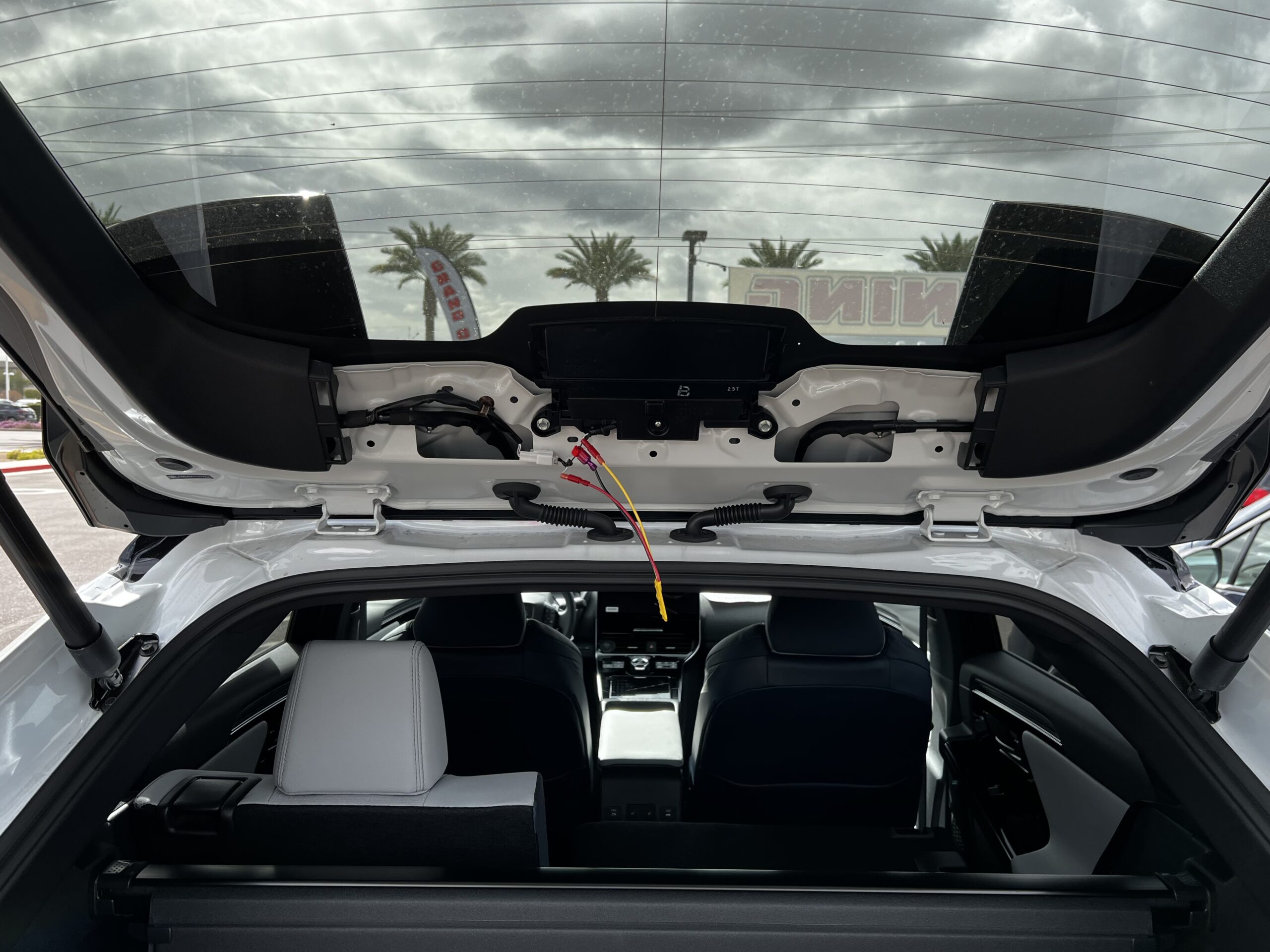

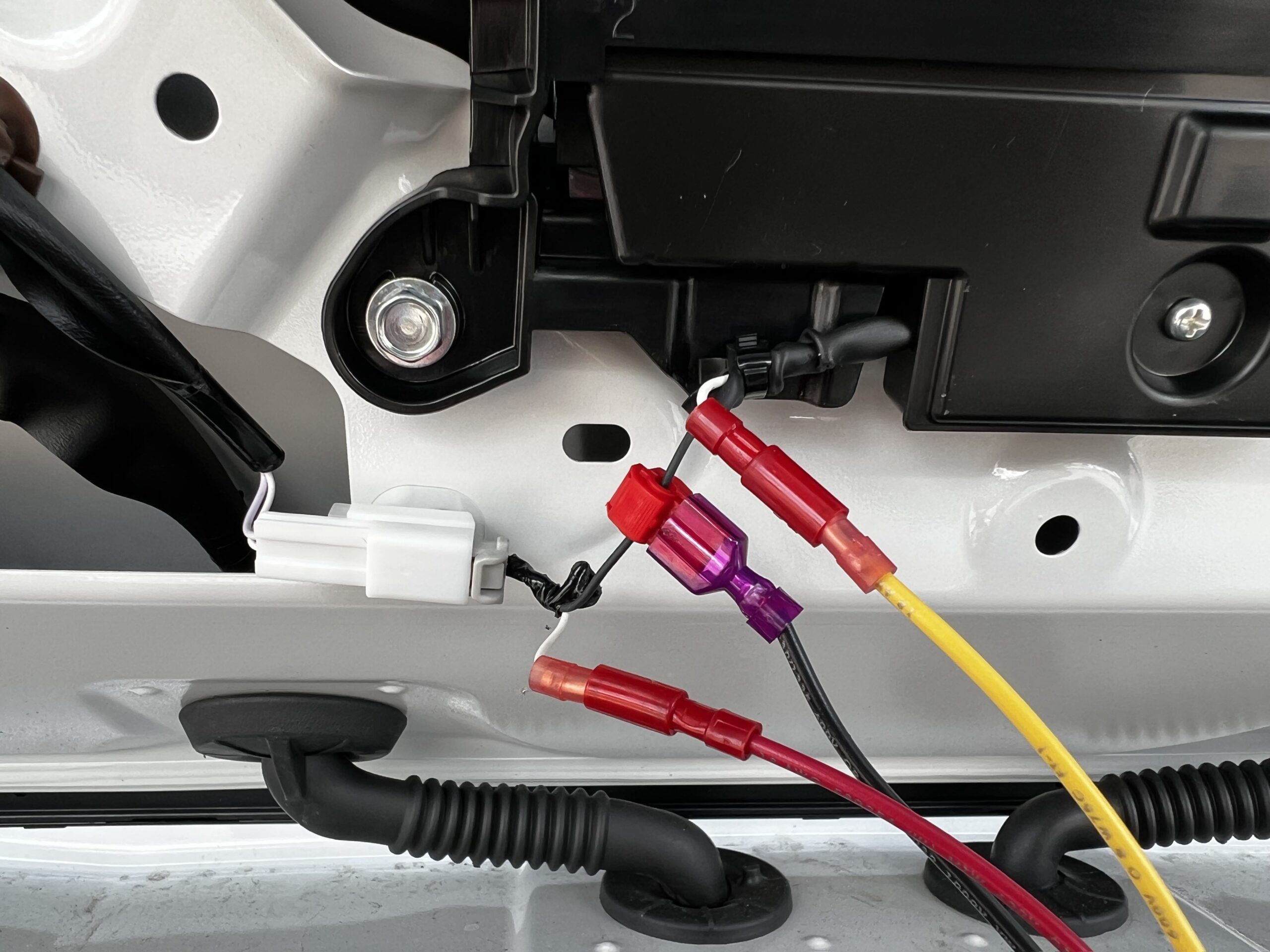

Open the back hatch of the vehicle and remove the top center panel. The brake light wires will be located in the center coming from a white 2-pin plug that leads directly into the third brake light. To access the wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    White

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
