Sonata 2015-2019

Hyundai

Installation Instructions:

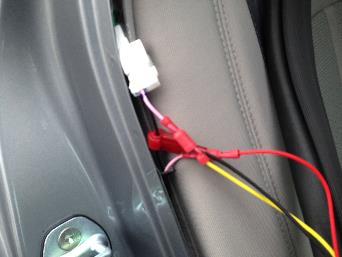

Open the passenger rear door. Remove the weather seal near the rear seat. The wires are in between the rear seat and the body of the car. The white plug will be mounted on the body of the car so use your tool to pull it from the body.

Additional Information:

None

  • Positive Wire:

    Pink or Green

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
