Sonata 2024-2025

Hyundai

Installation Instructions:

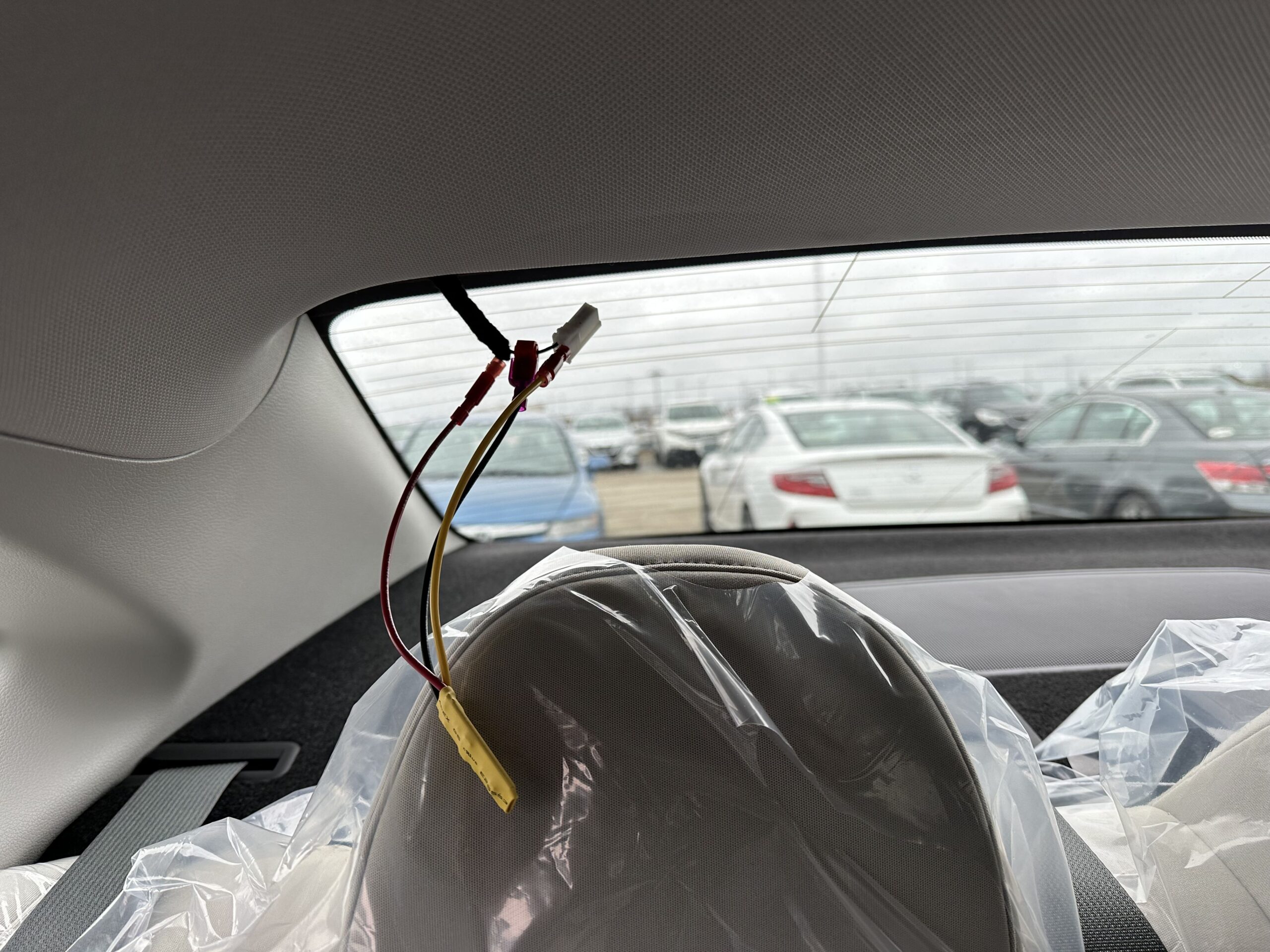

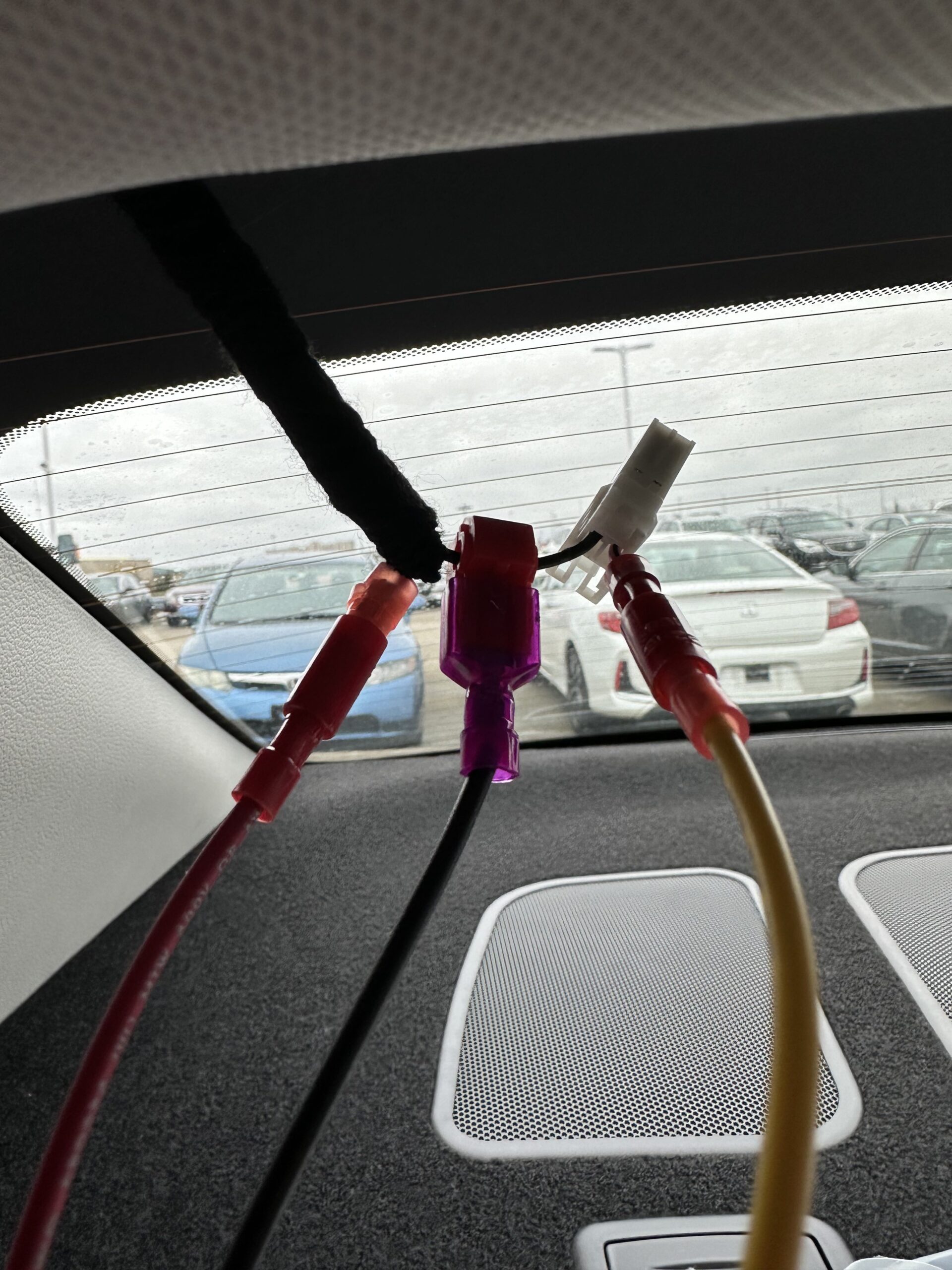

Open the rear passenger side door, and pull down the headliner to access the brake light plug. Unplug the brake light and pull it out from the headliner. To access the wires, cut back the black tape.

Additional Information:

None

  • Positive Wire:

    Pink/Black

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
