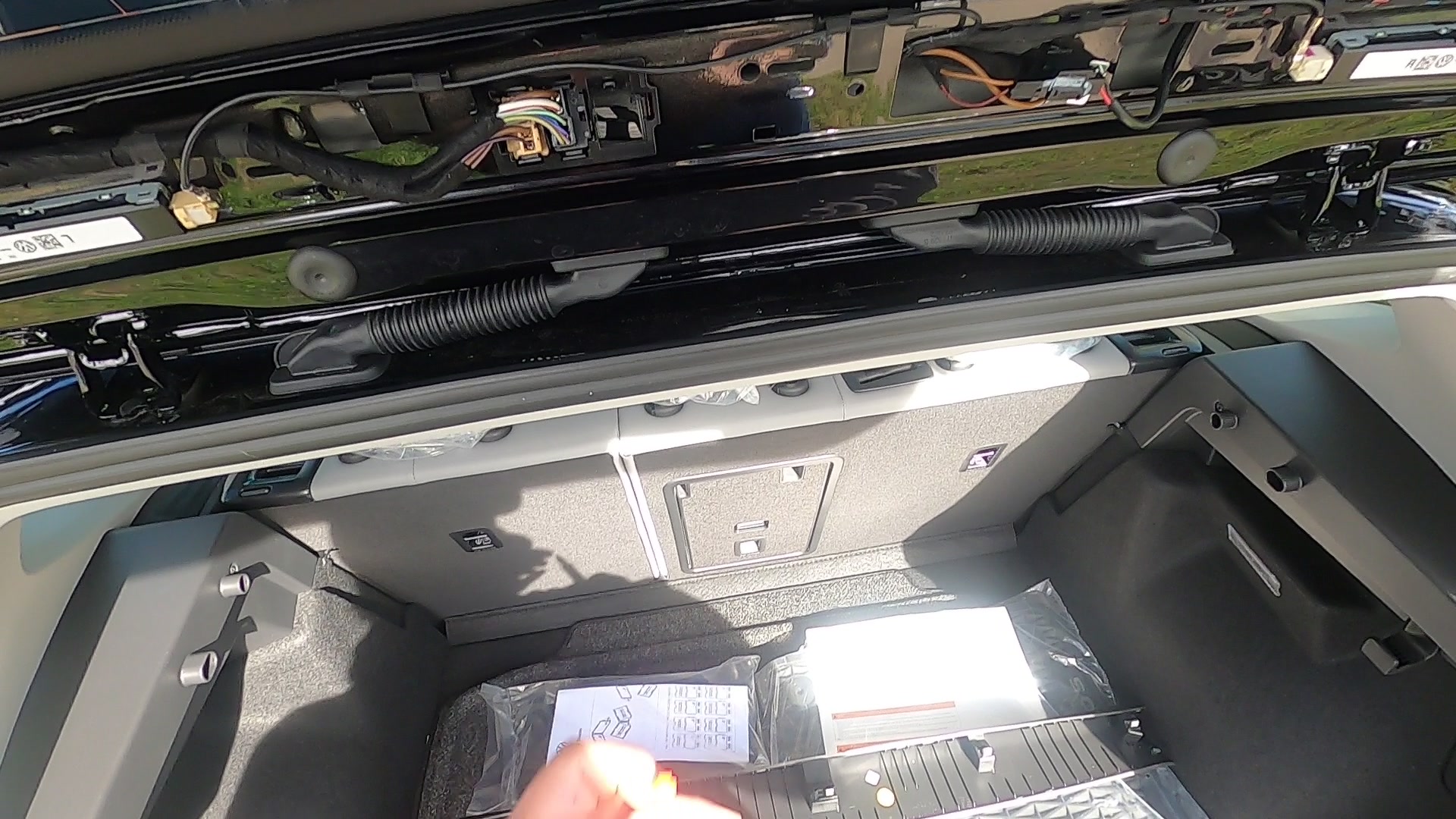

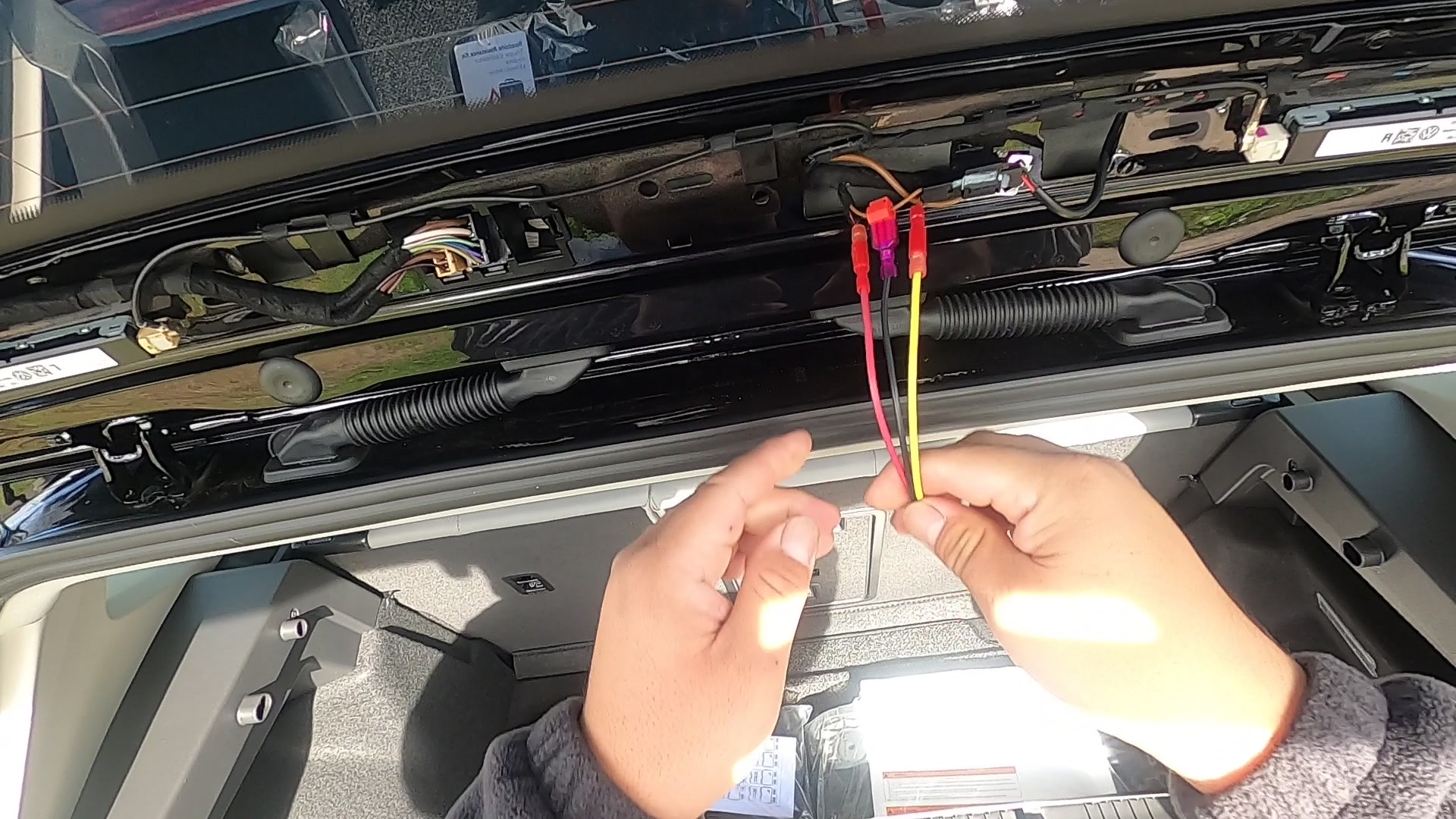

Open the back truck hatch. To access the wires, pop the top plastic panel. The wires will be located leading from the black 2-pin plug almost directly in the center of the vehicle.
Additional Information:
None
Positive Wire:
Red/Black
Ground Wire
Brown
About wire colors:
In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
