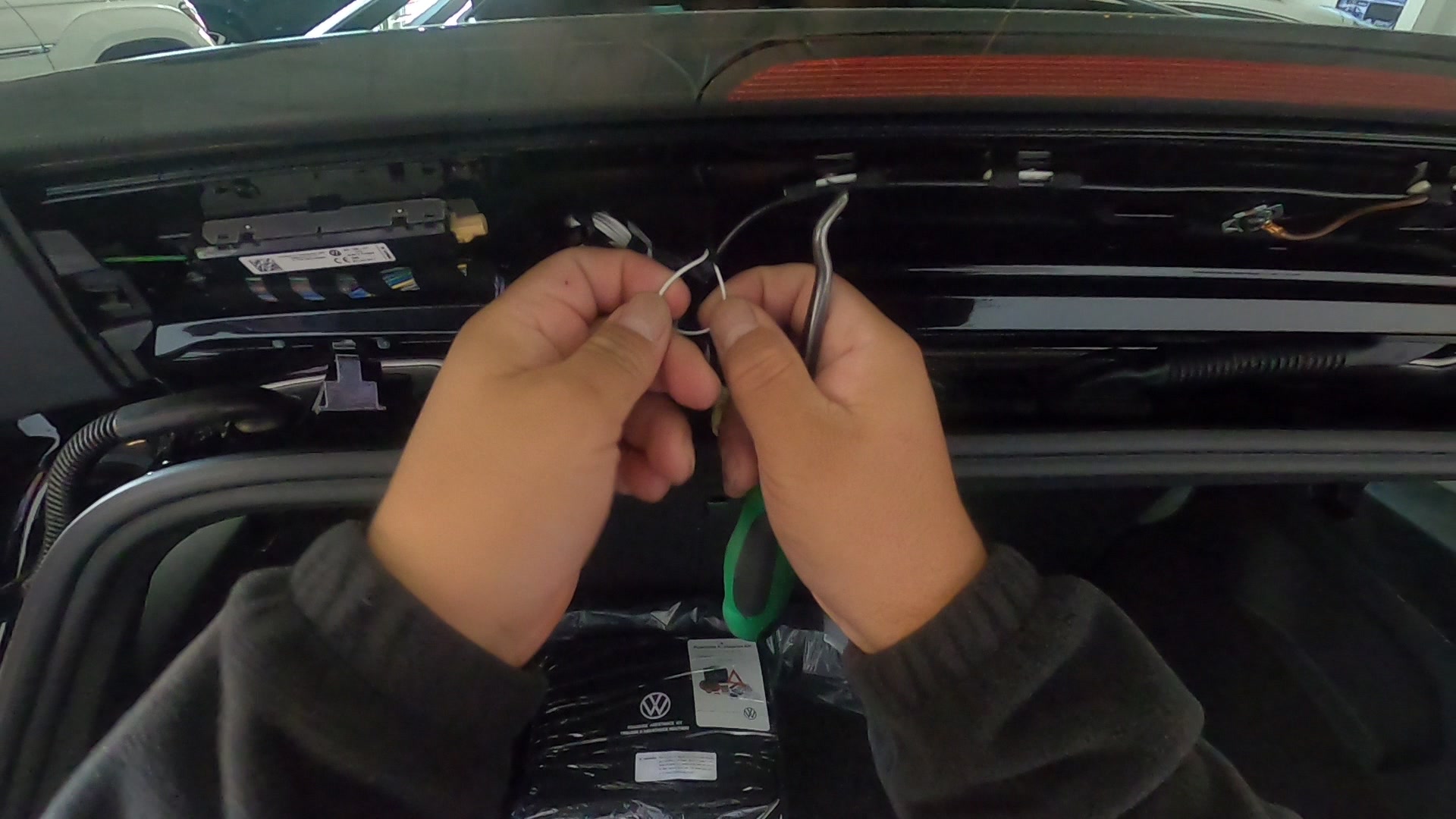

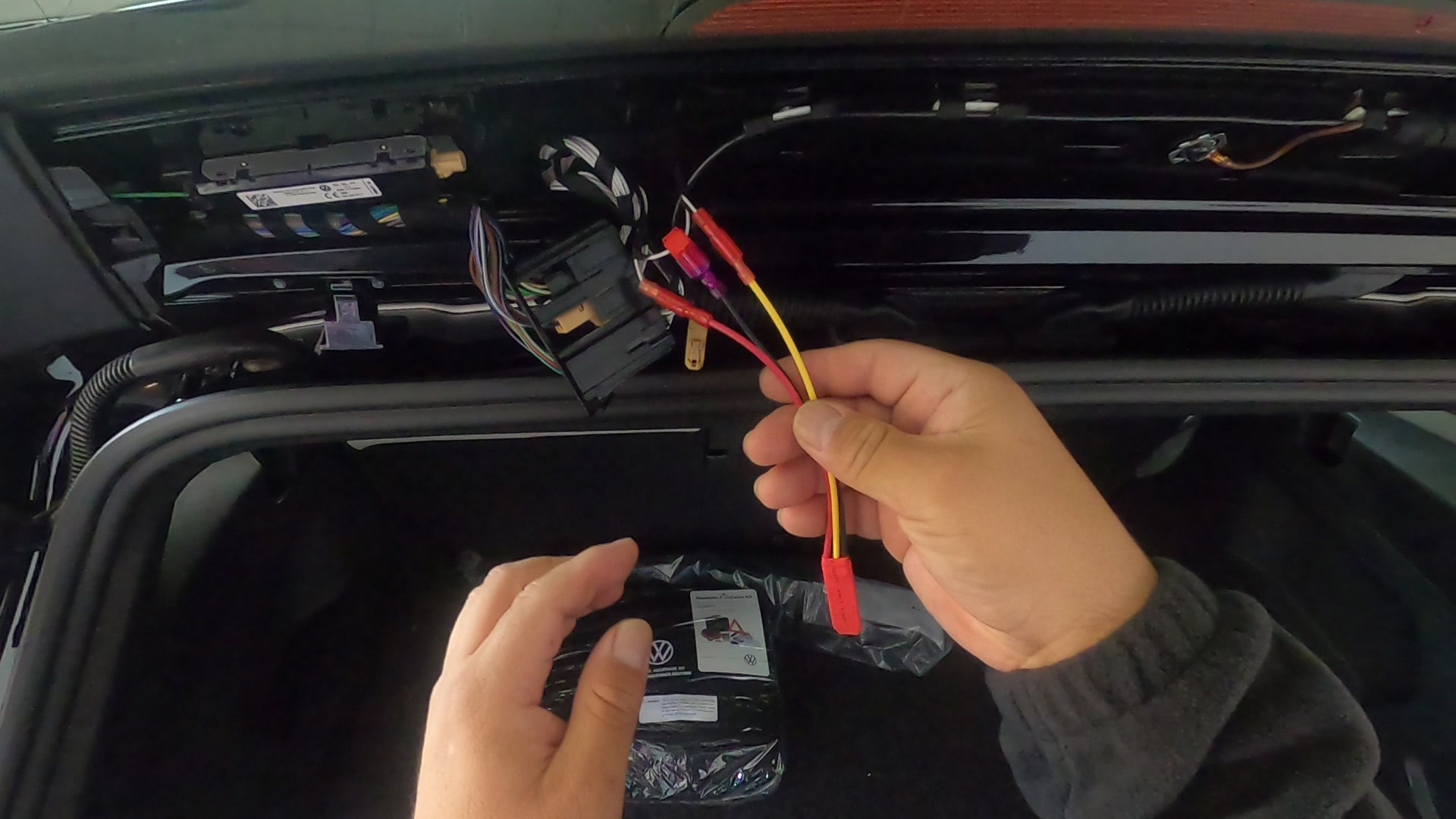

Open the back trunk hatch and remove the top plastic panel. Unplug the satellite wire and pull the 3-pin plug out to access the 2-pin wire harness directly below the brake light.
Additional Information:
None
Positive Wire:
White
Ground Wire
White (thicker)
About wire colors:
In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
