Tonale 2025

Alfa Romeo

Installation Instructions:

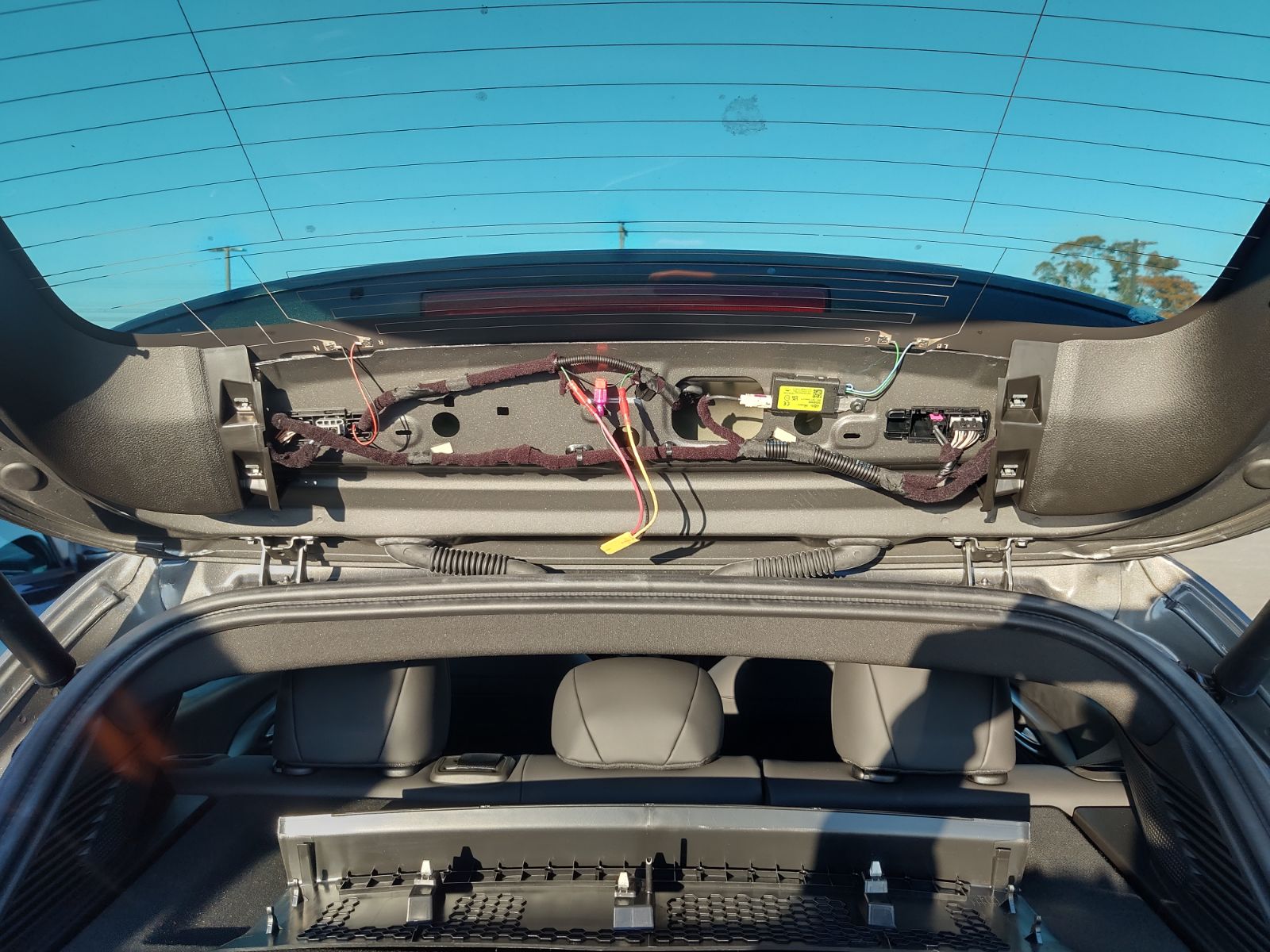

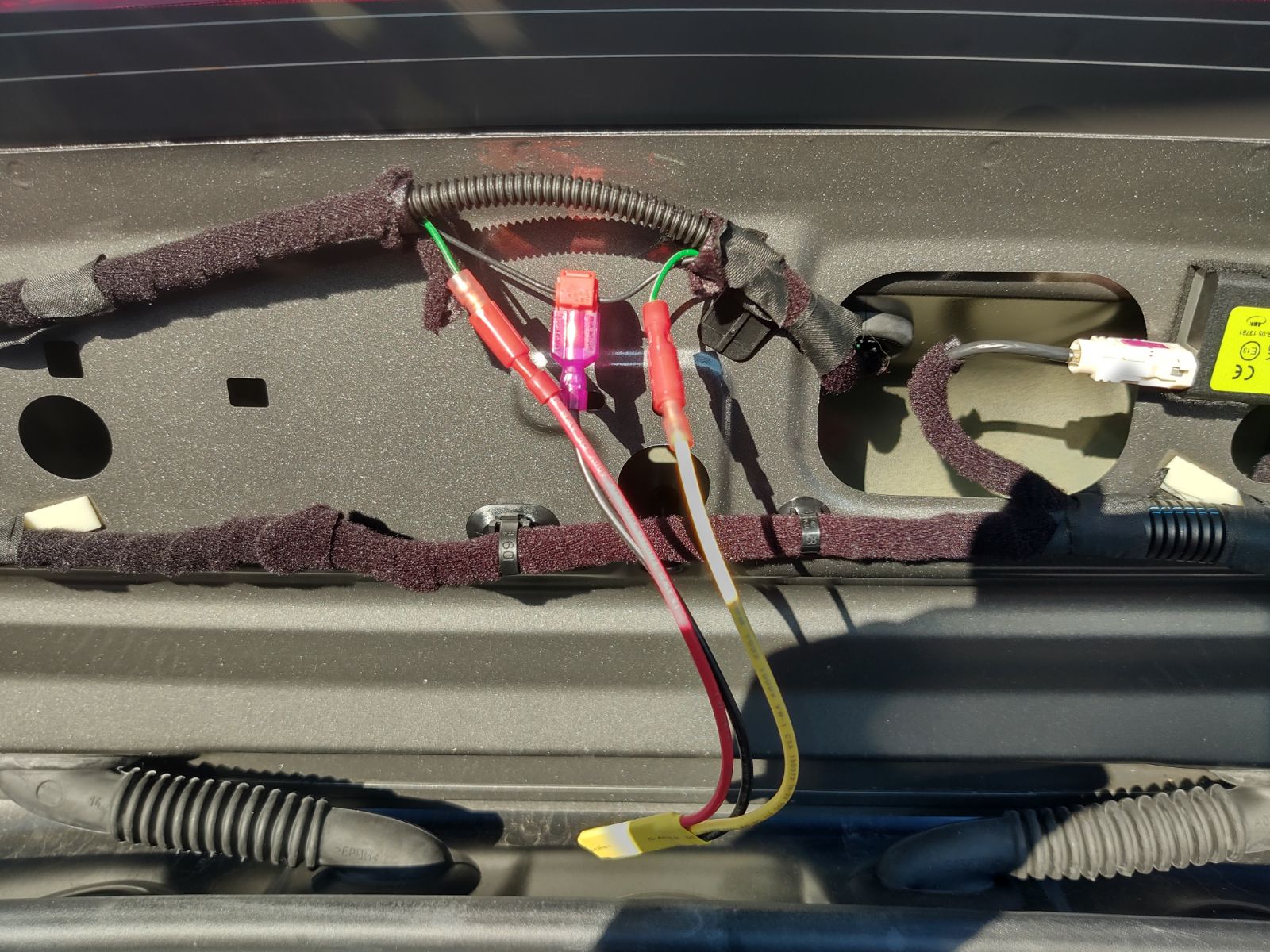

Open the back Hatch of the vehicle and remove the top center panel. The wires will be located near the center, in the black wire loom leading from the square peg. To access the brake light wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    Green

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
