Tucson 2022-2025

Hyundai

Installation Instructions:

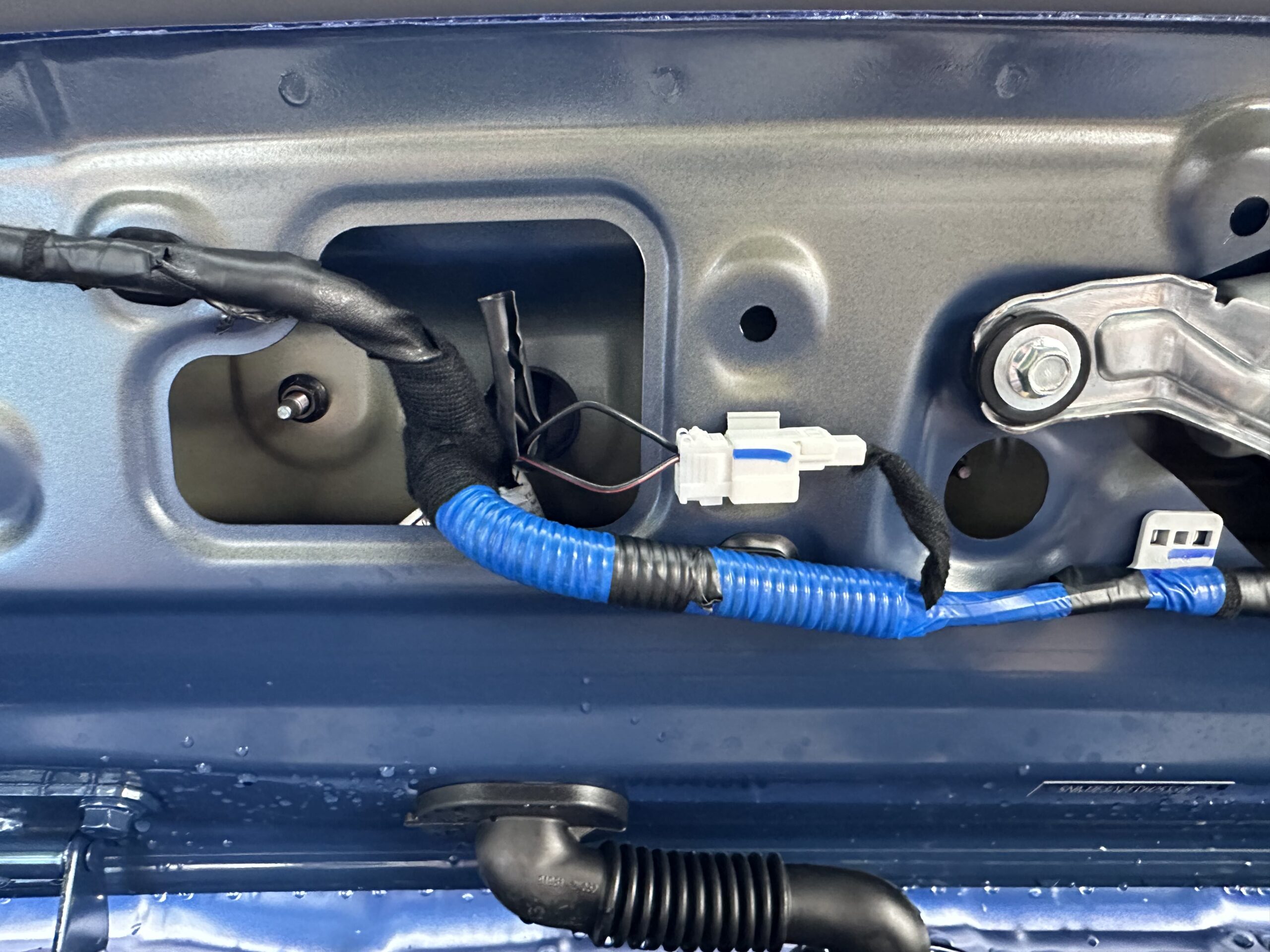

Open the back hatch of the vehicle and remove the top center panel. The wires will be located near the center coming from a white 2-pin plug that leads into a rubber grommet. To access the wires, cut back the wire loom.

Additional Information:

None

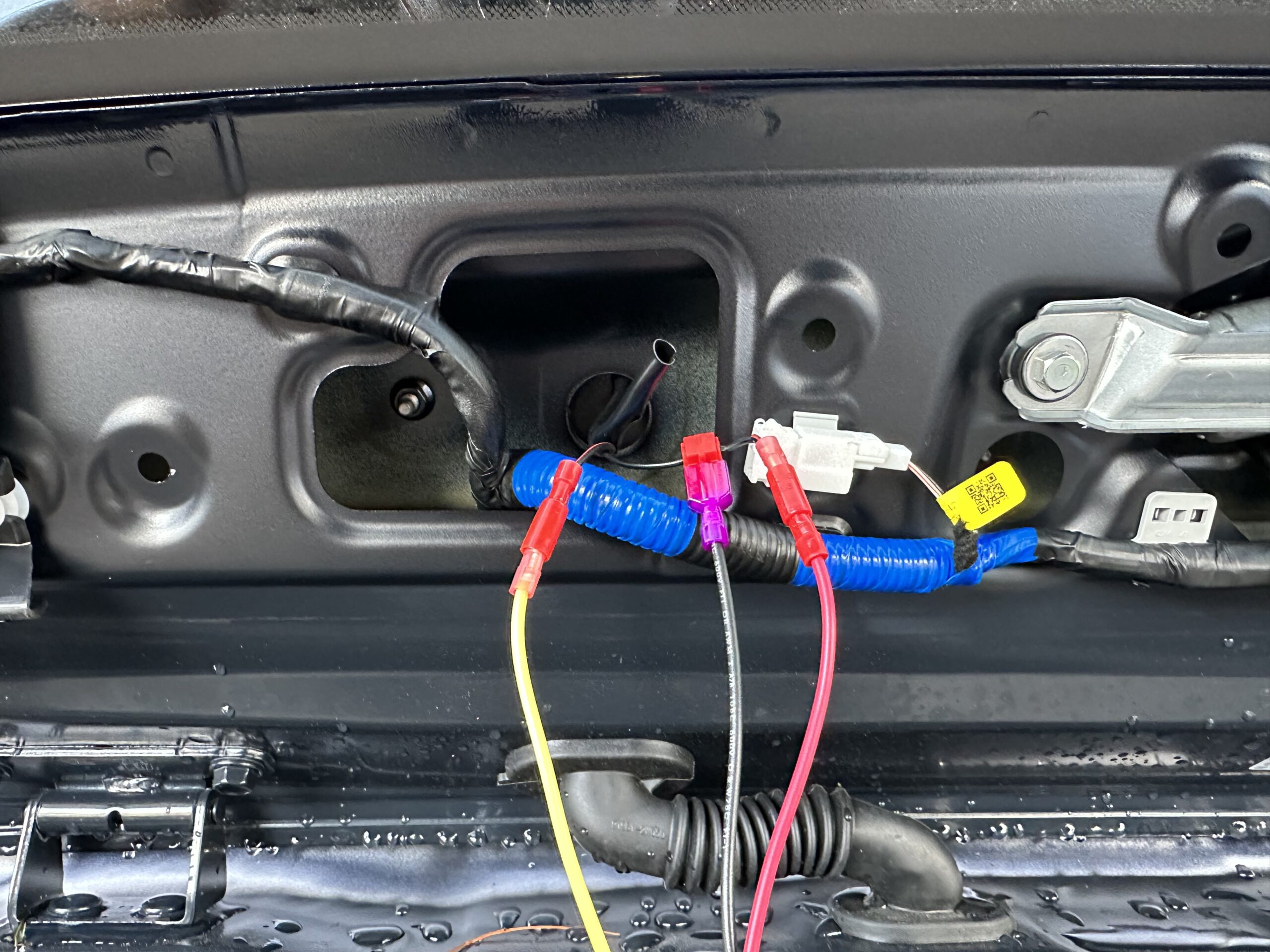

  • Positive Wire:

    Black/Red

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
