Tucson N-line 2022-2024

Hyundai

Installation Instructions:

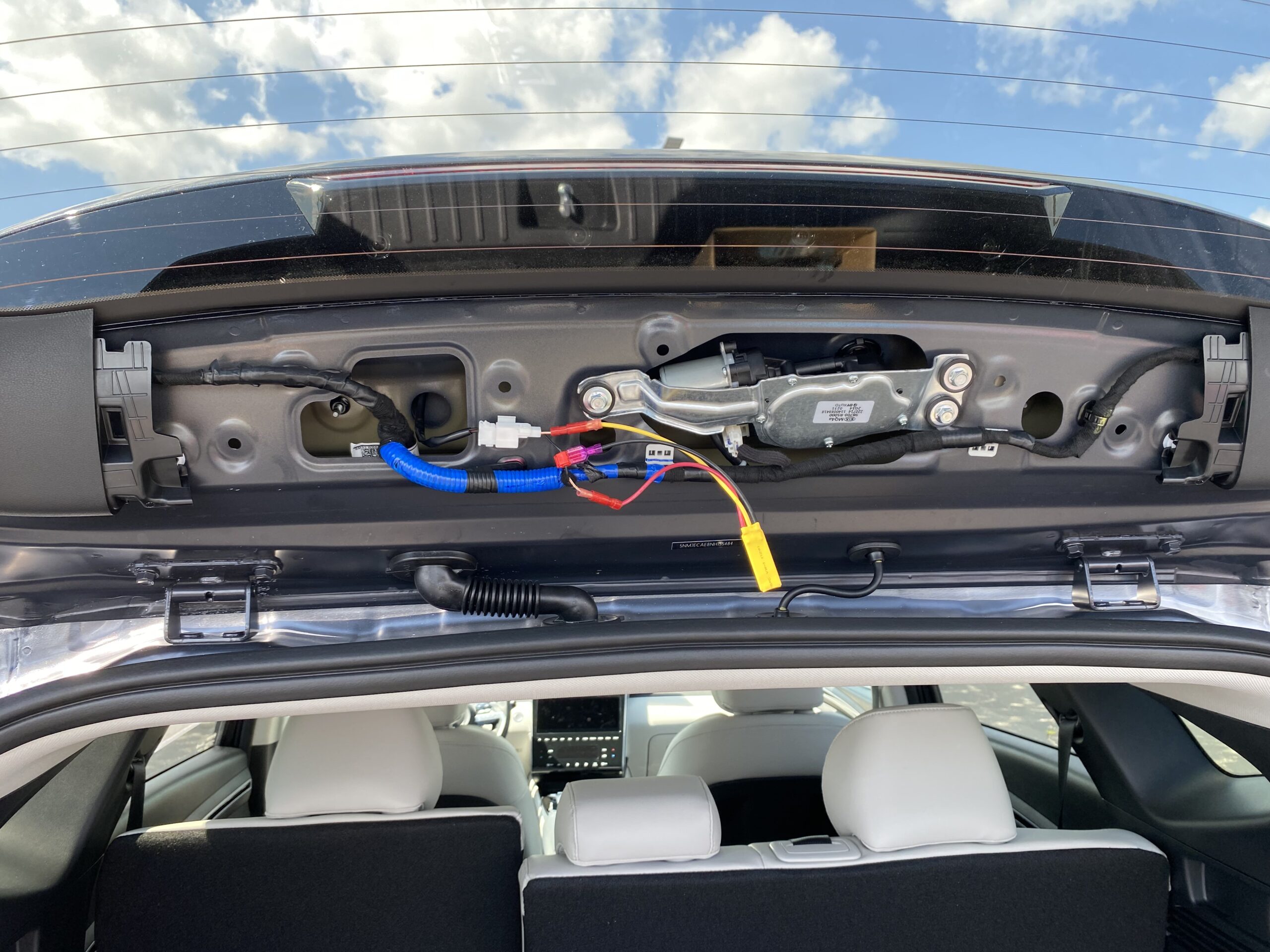

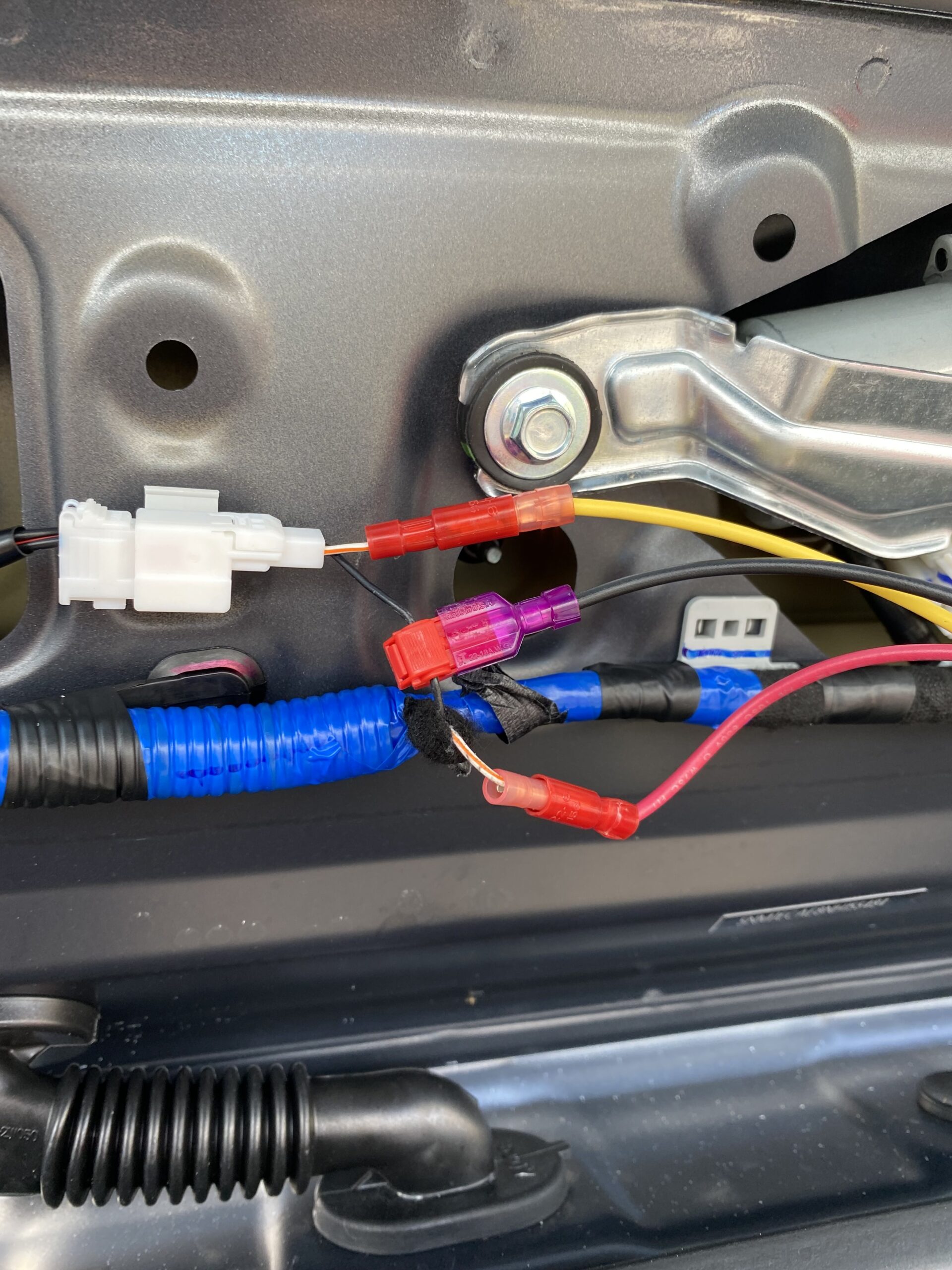

Open the back hatch of the vehicle and pulled down the top panel. The wires will be coming from a white 2-pin plug leading back into the rectangular cutout. To access the wires, cut back the black tape.

Additional Information:

None

  • Positive Wire:

    White/Orange

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
