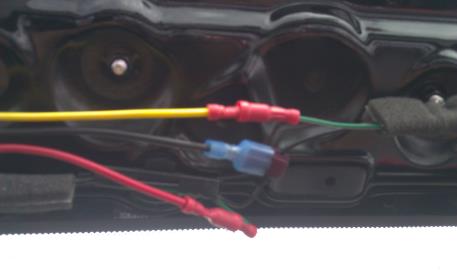

Remove the center cover in between the two windows in the hatch. The wires will be in the center behind the cover wrapped with foam tape.
Additional Information:
None
Positive Wire:
Green
Ground Wire
Black
About wire colors:
In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
