Venza 2022-2024

Toyota

Installation Instructions:

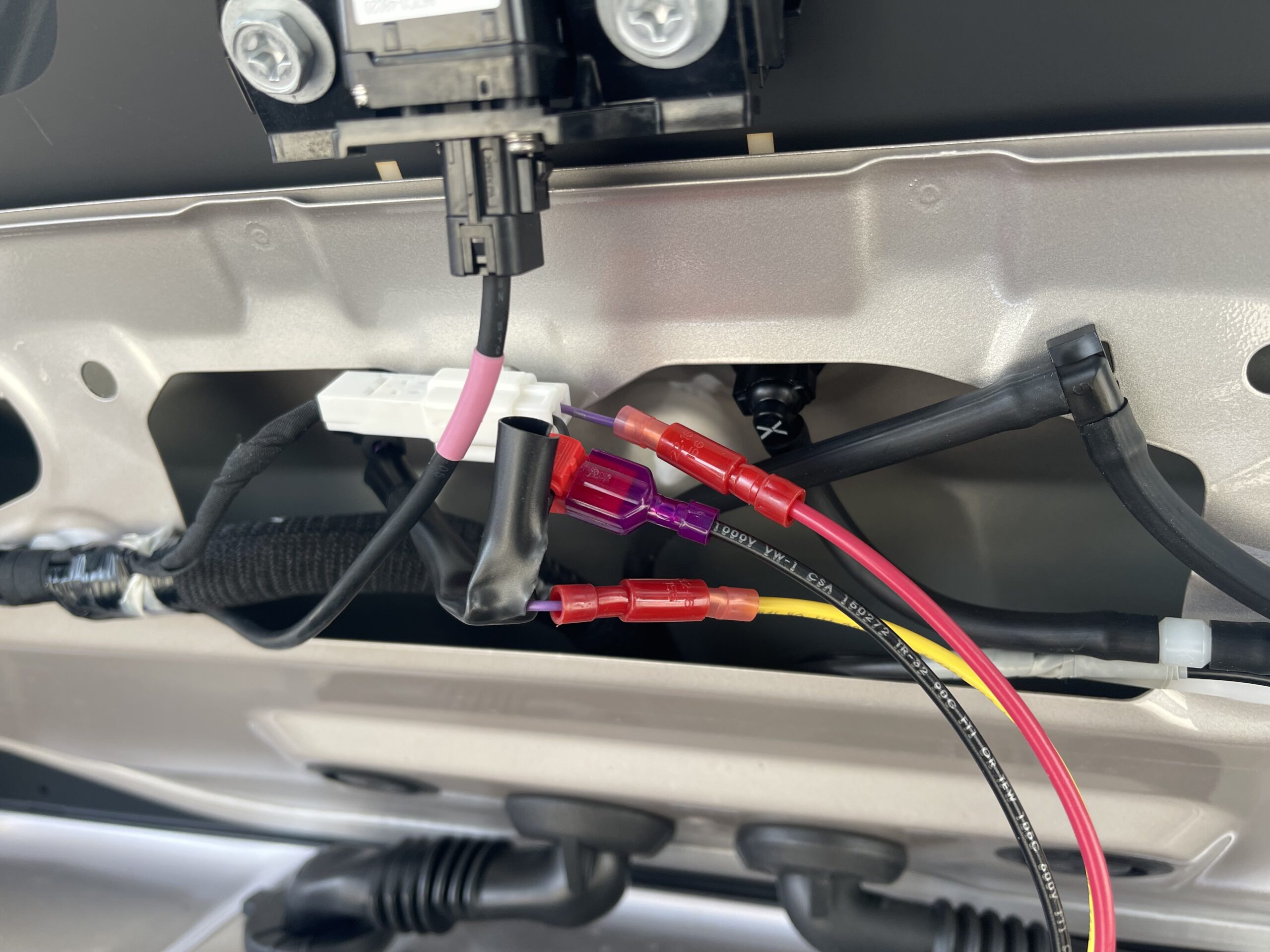

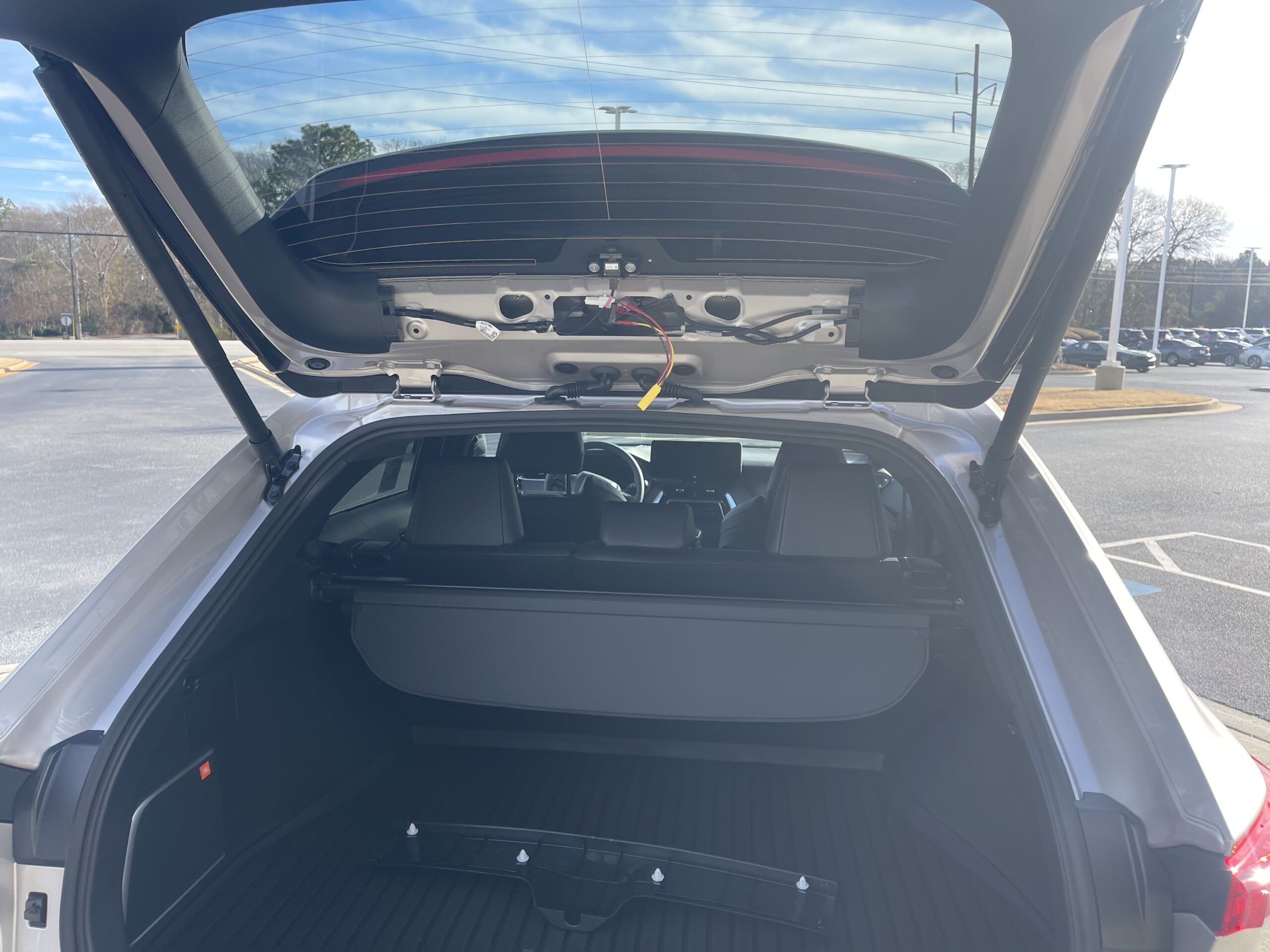

Open the back hatch of the vehicle and remove the top center panel. The third brake light wires will be located near the center leading from a white 2-pin plug. To access the wires, cut back the wire loom.

Additional Information:

None

  • Positive Wire:

    Purple

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
