There are 2 different installations for this bike, depending on the package.

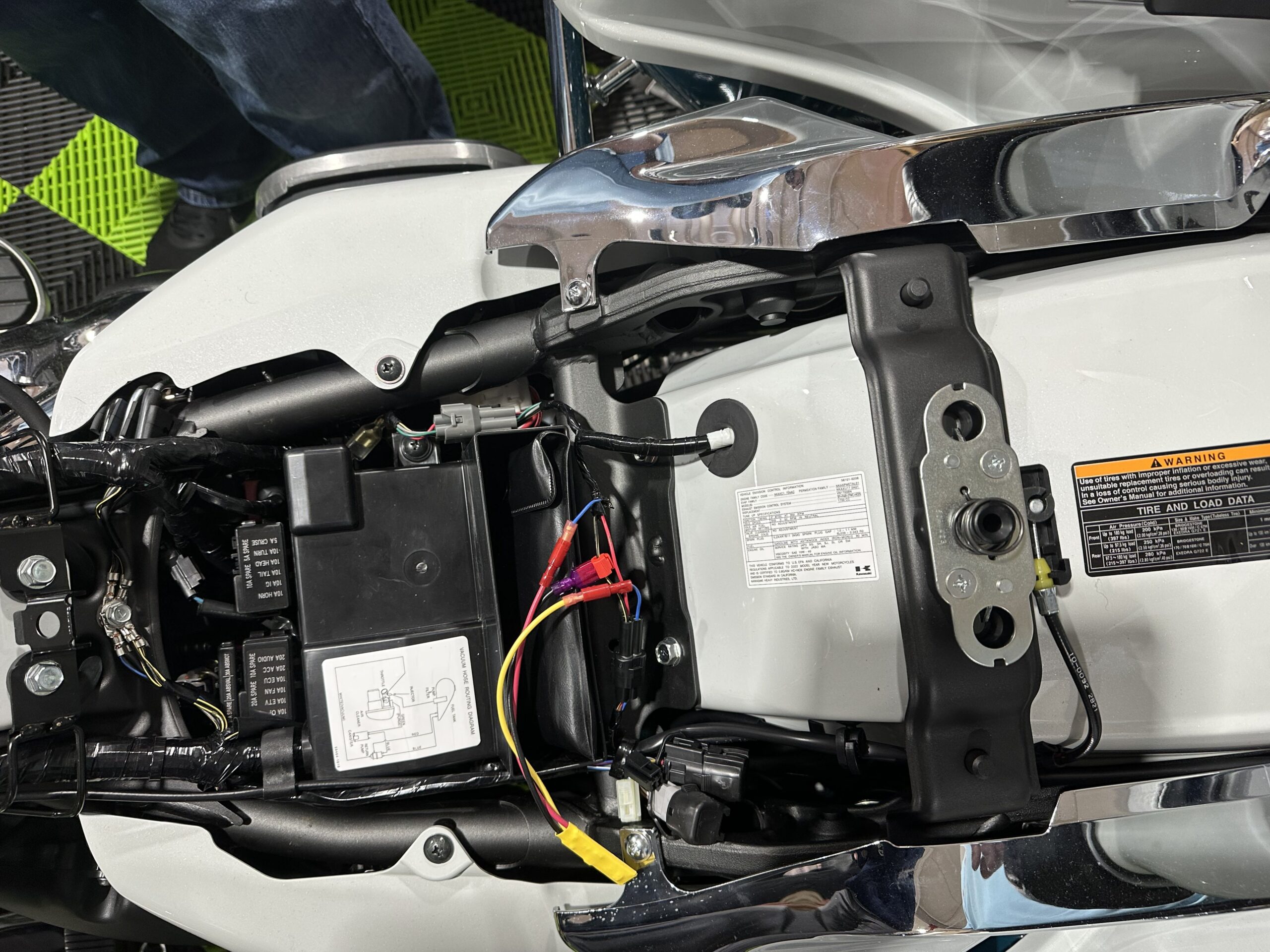

With luggage compartment: remove the seat on the bike. The brake wires will be located behind the battery leading into a black 3-pin plug.

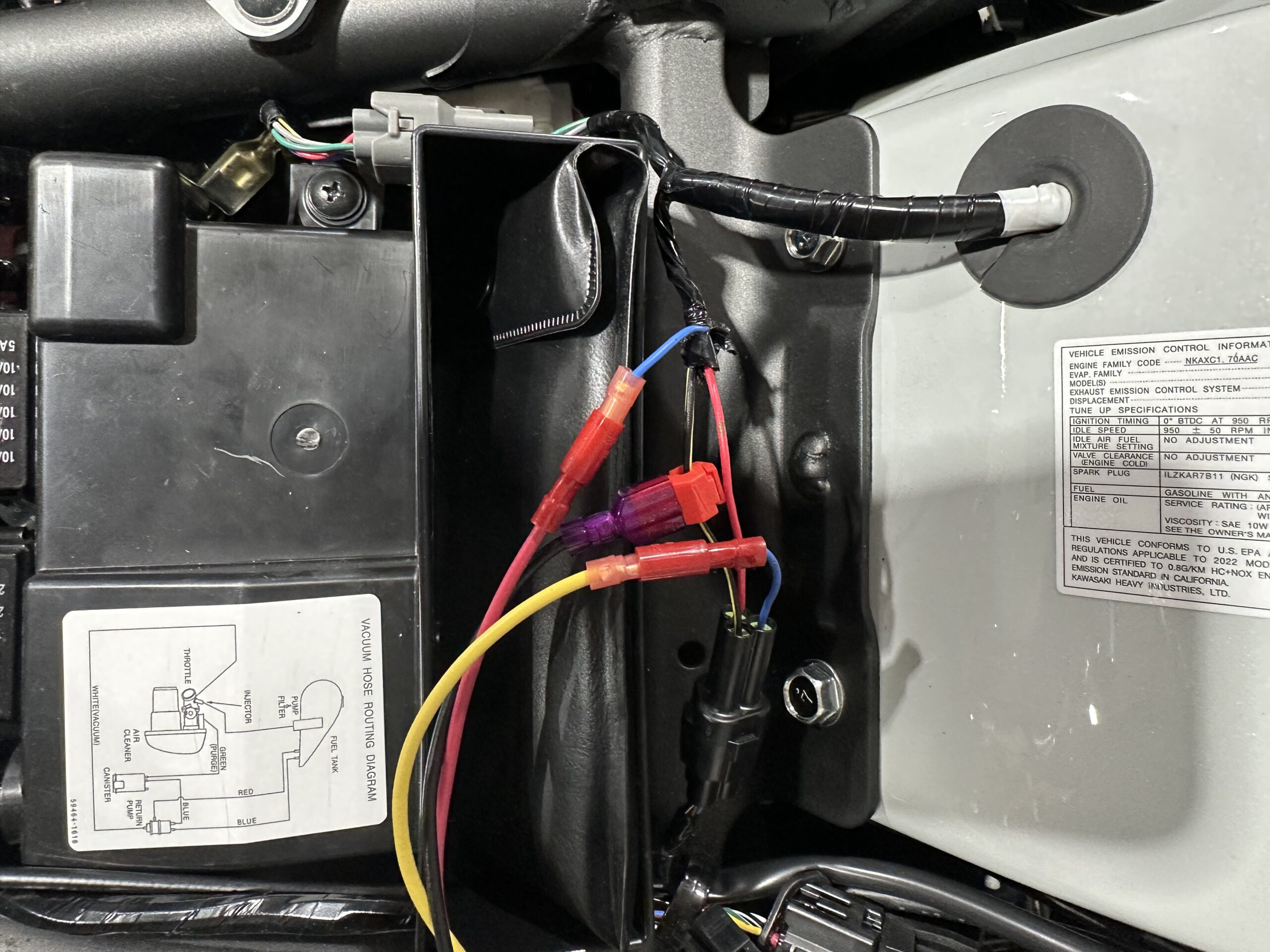

WithOUT luggage compartment: remove the seat on the bike. The brake wires will be located next the battery in the wire loom that is leading directly into the black grommet.
Additional Information:
Be sure to check if the bike has a luggage compartment or not. The one WITH the luggage compartment has a Black/White ground wire. The one withOUT the luggage compartment has a Black/Yellow ground wire.
Positive Wire:
Blue
Ground Wire
Black/White or Black/Yellow
About wire colors:
In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
