Wagoneer 2021-2026

Jeep

Installation Instructions:

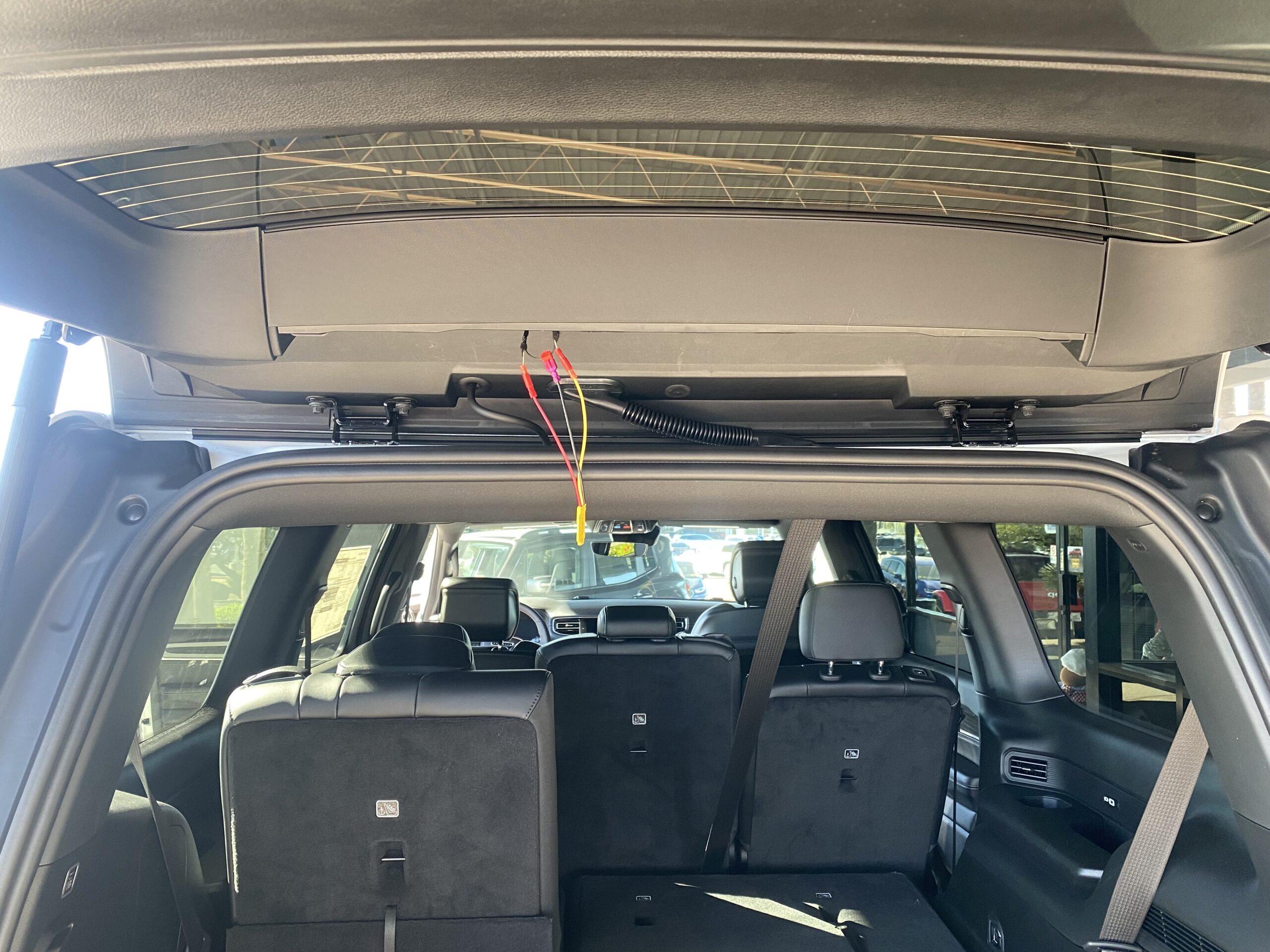

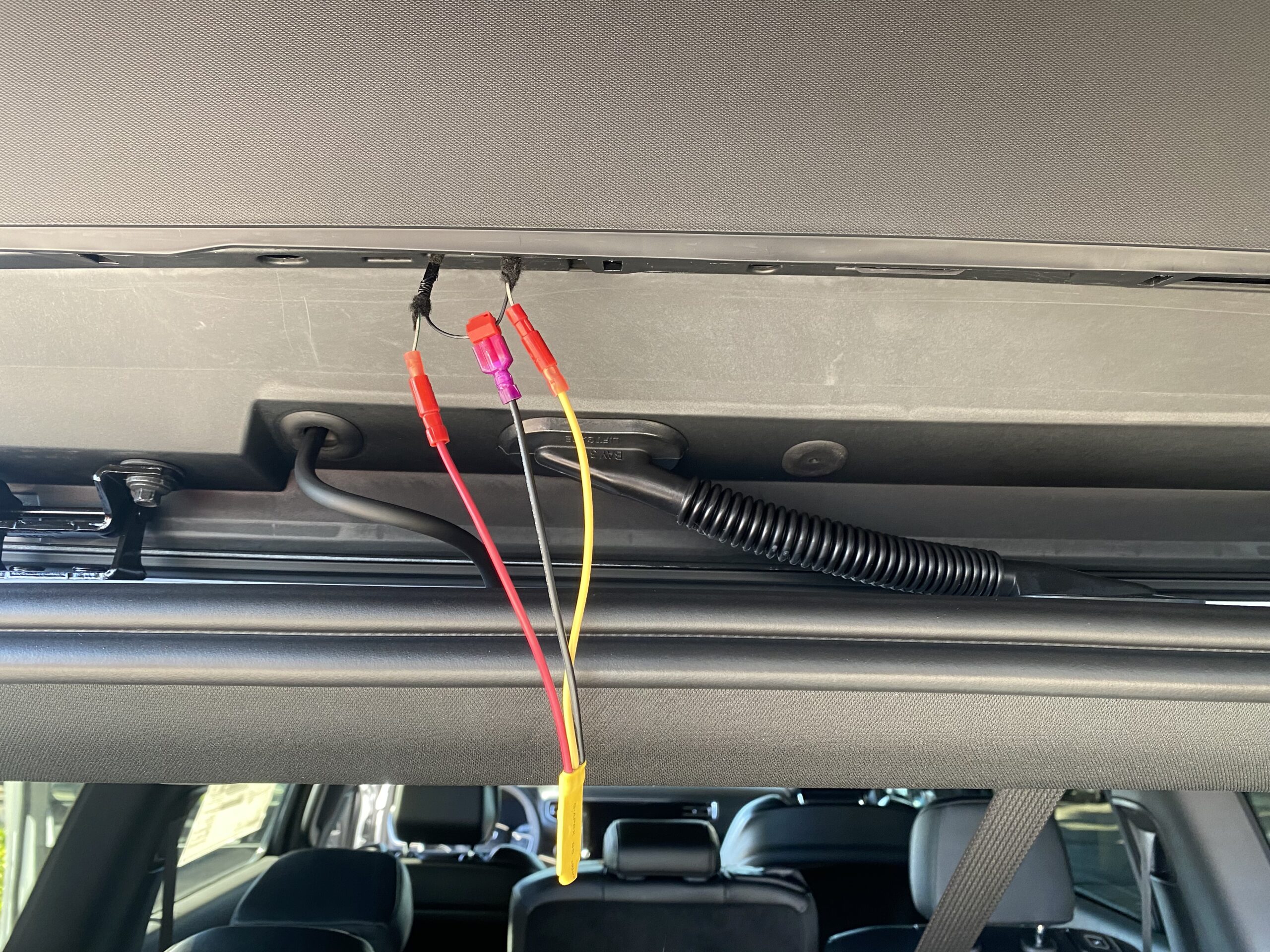

Open the trunk, pull down the panel under the third brake light. The wire harness is on the drivers side, pull the wire harness down and strip back the black tape to locate the wires.

Additional Information:

None

  • Positive Wire:

    White/Green

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
