WRX 2022-2025

Subaru

Installation Instructions:

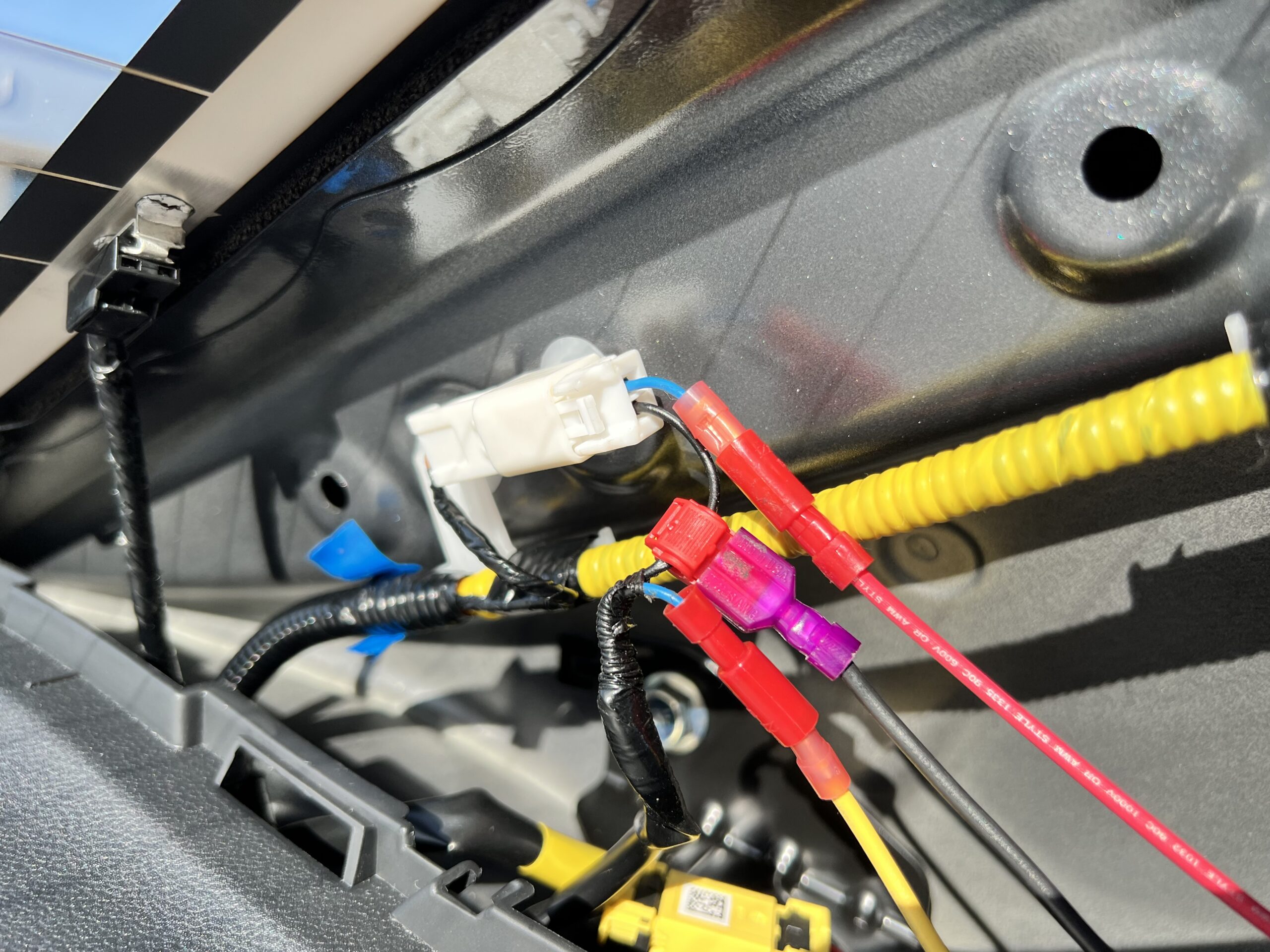

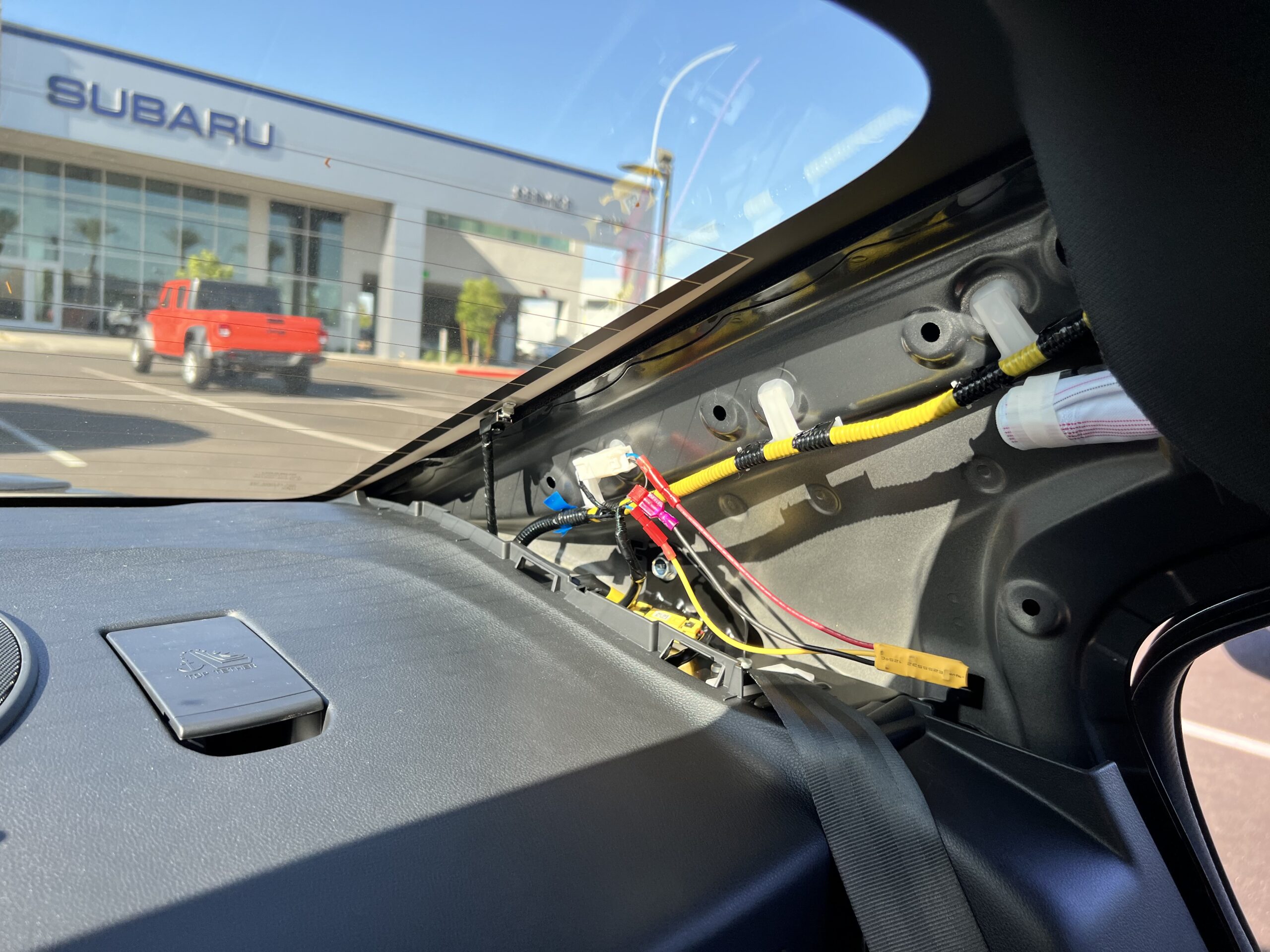

Open the back driver side door. In the back seat, directly towards the back window on the drivers side, pull the C-pillar panel to access the wires. The wires will be located going into the white 2-pin plug.

Additional Information:

None

  • Positive Wire:

    Blue

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
