X6 2015-2019

BMW

Installation Instructions:

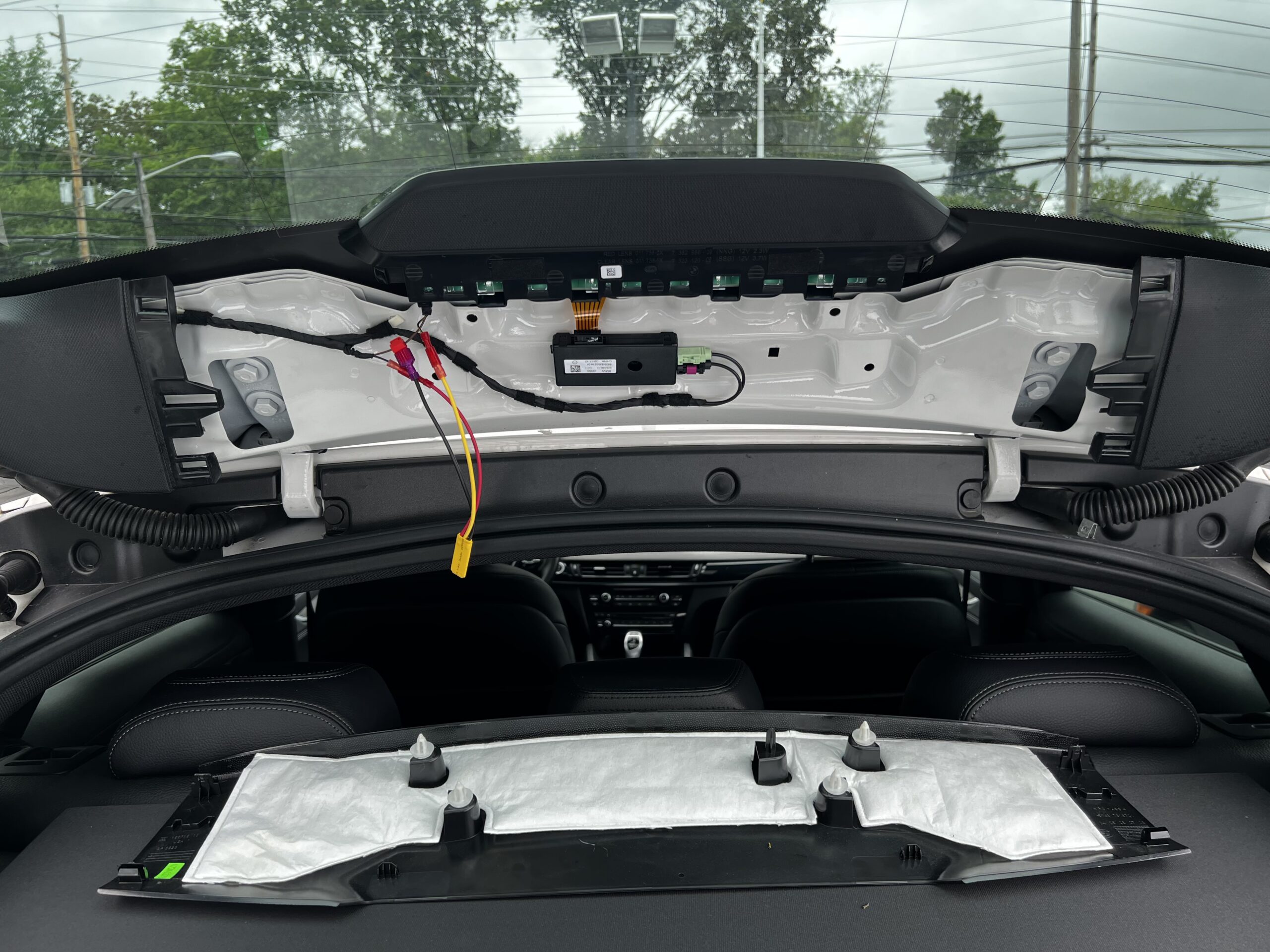

Open the rear hatch of the vehicle and pull down the top center panel. The wires will be located on the driver side leading directly into the third brake light. To access the wires, cut back the black wire loom.

Additional Information:

None

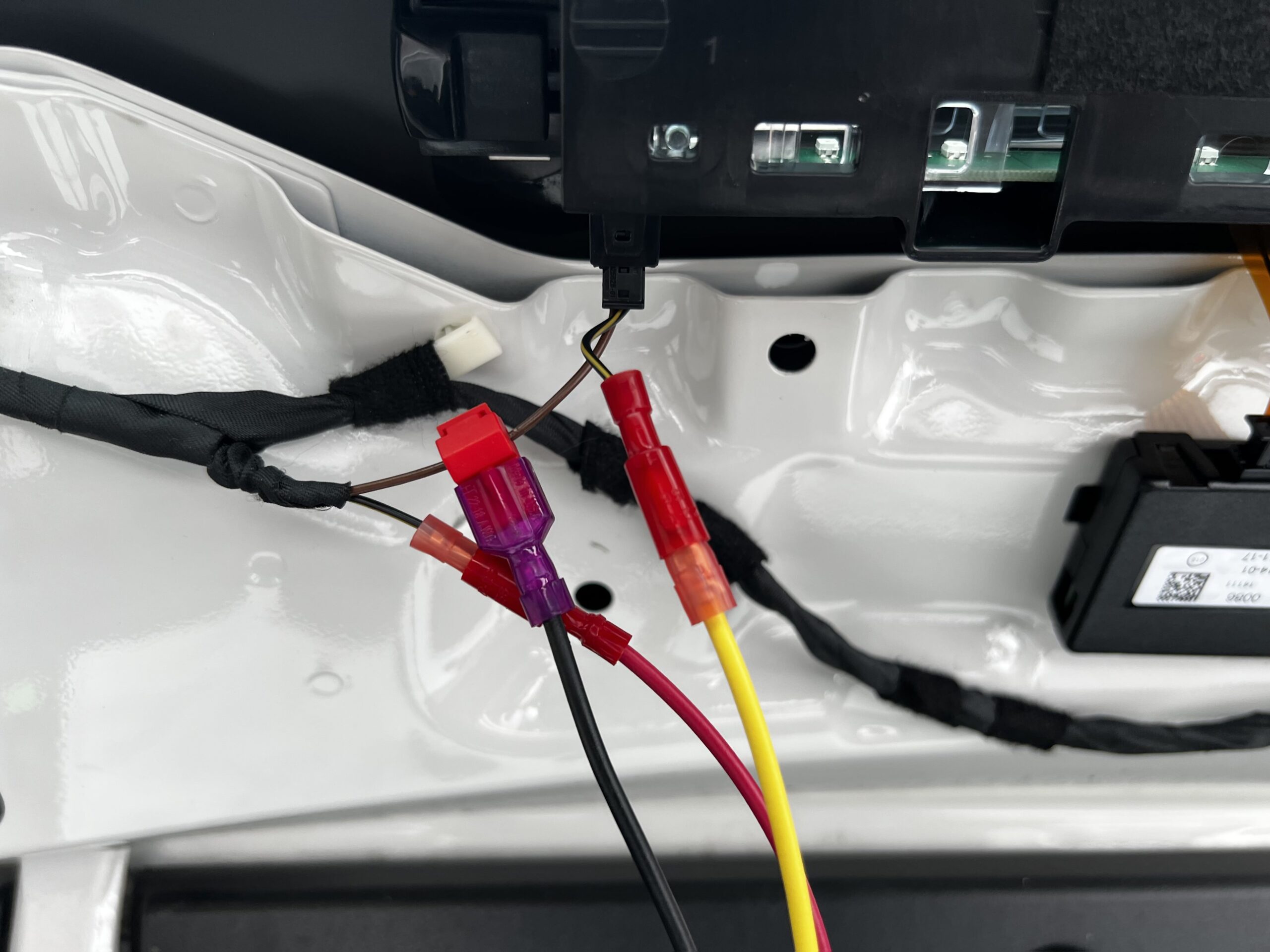

  • Positive Wire:

    Black/Yellow

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
