X7 2018-2023

BMW

Installation Instructions:

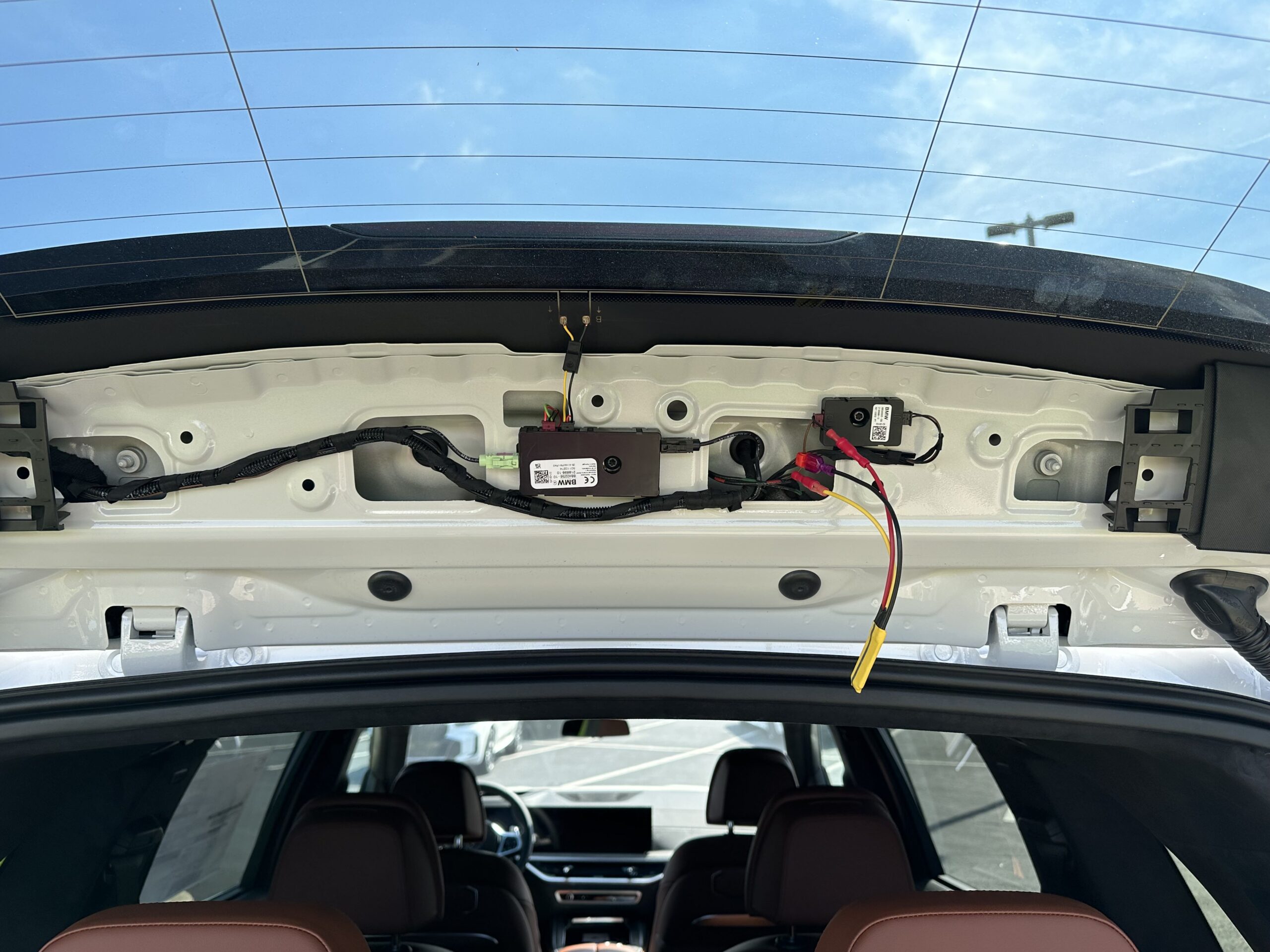

Open the back hatch of the vehicle and remove the top center panel. The brake light wires will be located coming from a maroon 2-pin plug next to the square opening near the center. To access the wires, cut back the rubber wire loom.

Additional Information:

None

  • Positive Wire:

    Black

  • Ground Wire

    Brown

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
