XC90 2014-2022

Volvo

Installation Instructions:

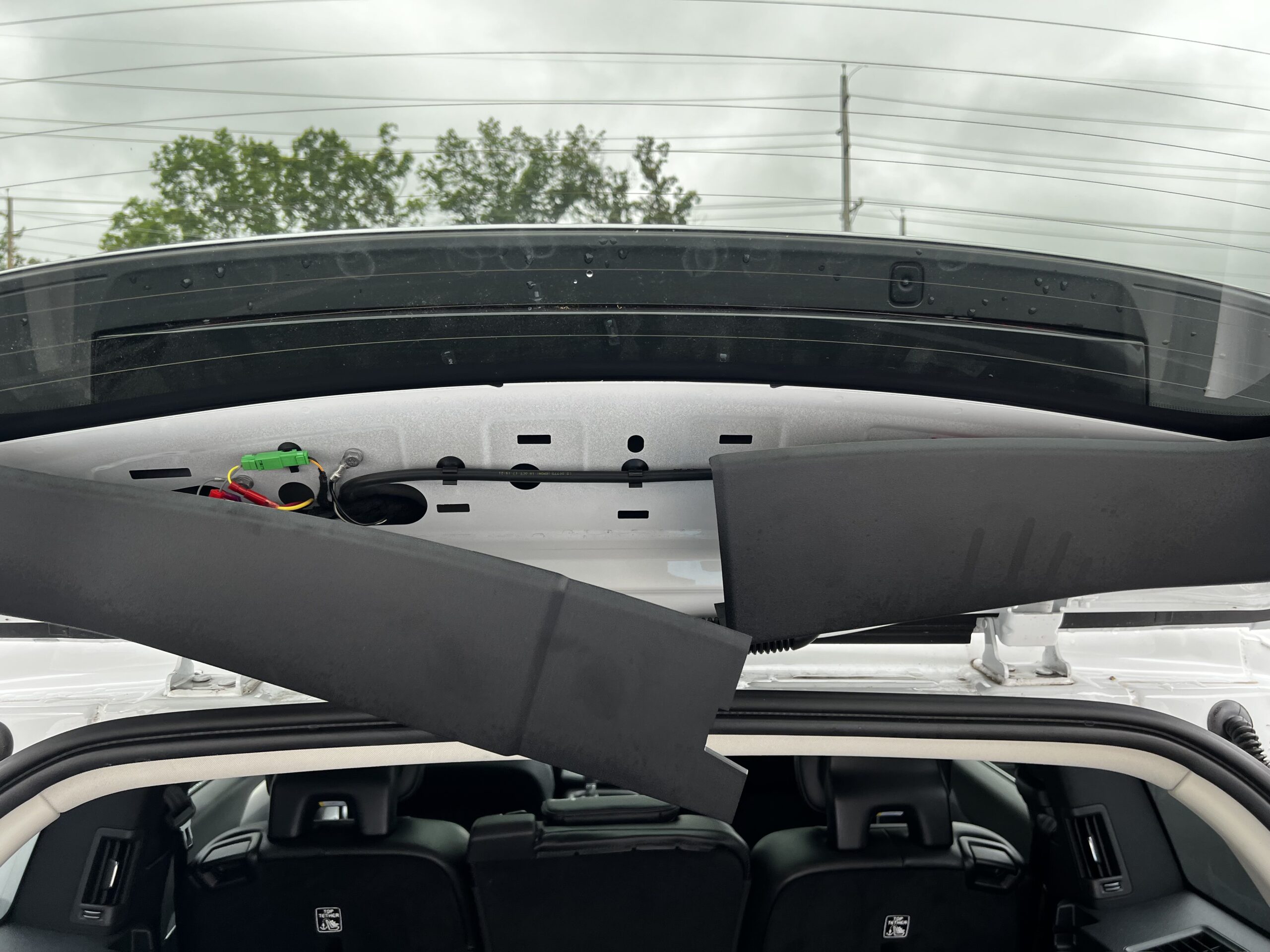

Open the rear hatch of the vehicle and pull down the left side of the top center panel. The wires will be located in the smaller of the two back wire looms leading into a green 2-pin plug. To access the wires, cut back the black tape.

Additional Information:

None

  • Positive Wire:

    Yellow

  • Ground Wire

    Gray

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
