XC90 T6 2016

Volvo

Installation Instructions:

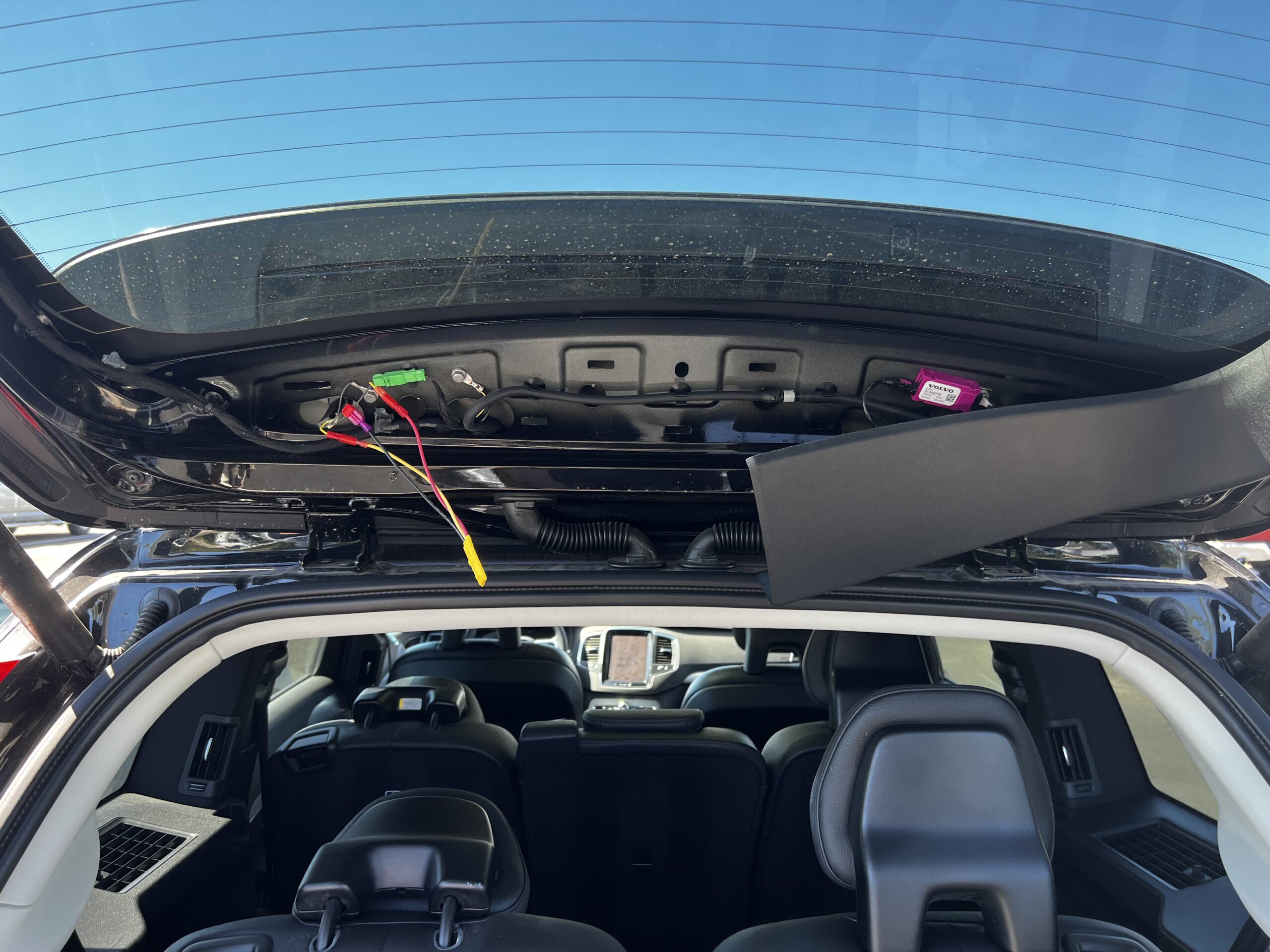

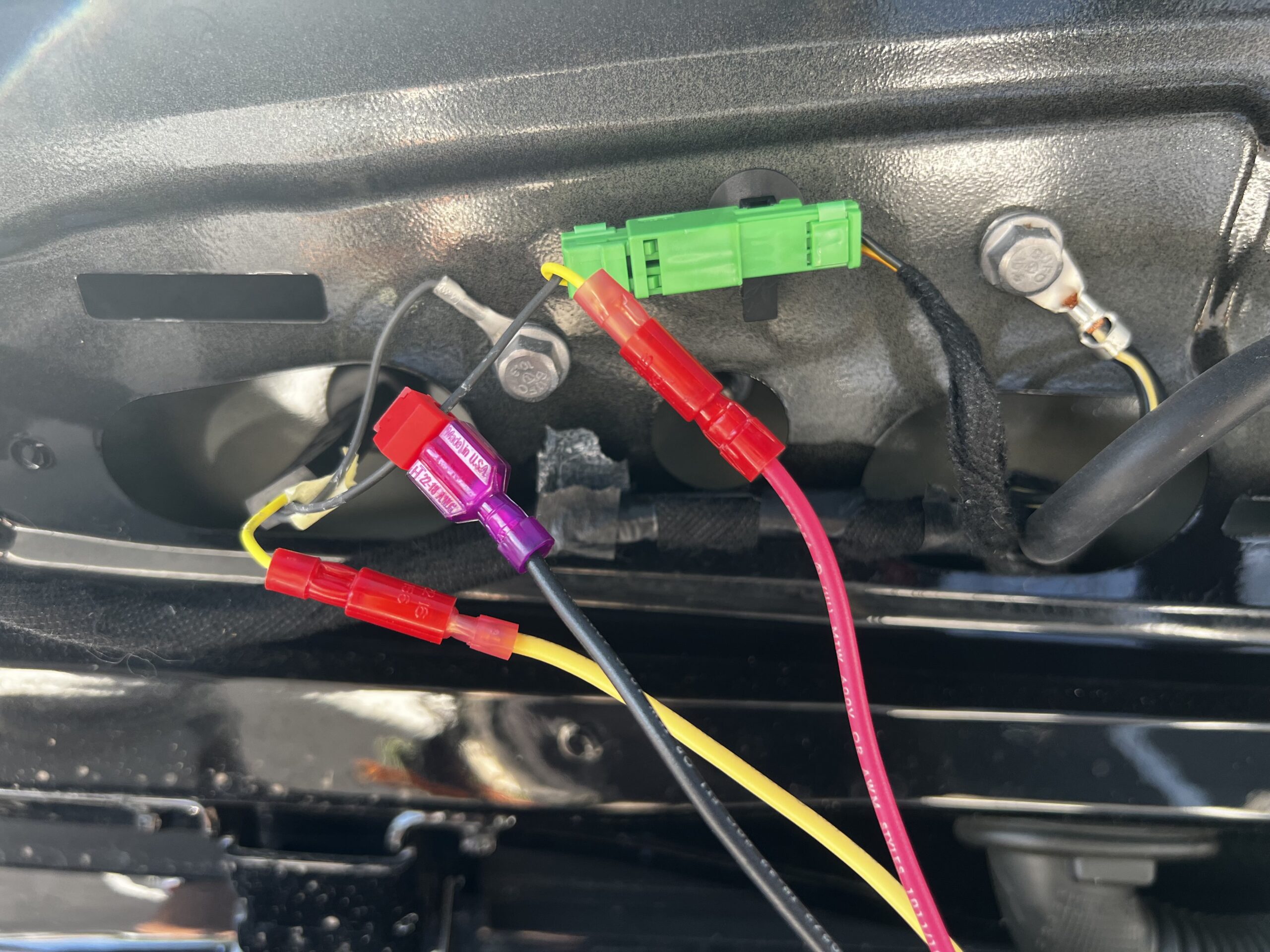

Open the rear hatch of the vehicle and remove the left side of the top panel. The wires will be located on the left side of the vehicle coming from a green 2-pin plug. To access the wires cut back the tape.

Additional Information:

None

  • Positive Wire:

    Yellow

  • Ground Wire

    Black

About wire colors:

In the event a wire has two colors listed, the first color is the base wire color. The second color is the tracer. For example, if the positive wire color is listed as "black/red." This means the wire is black with a red stripe.
